Description

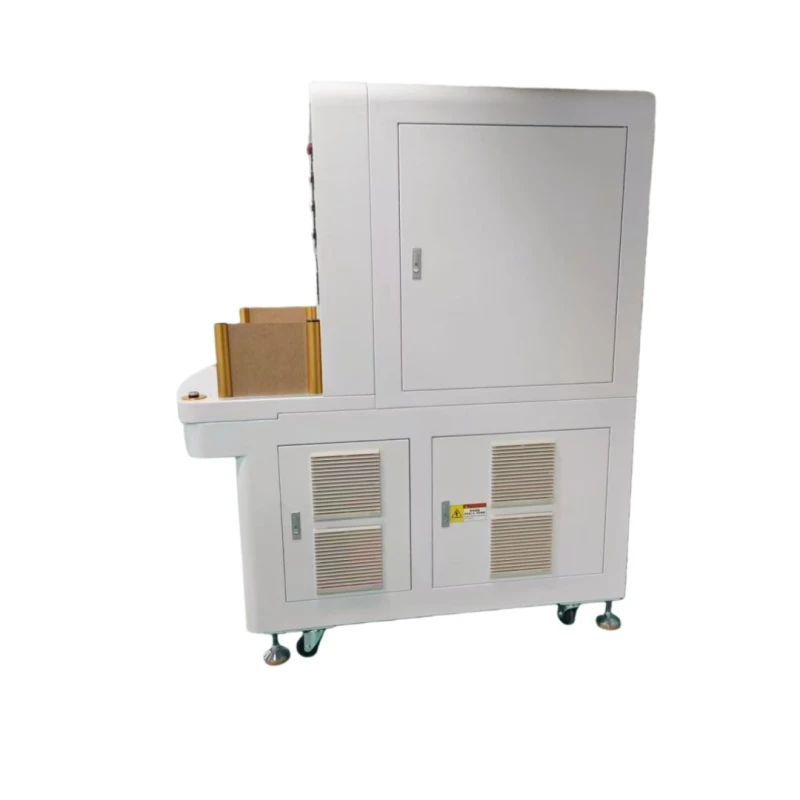

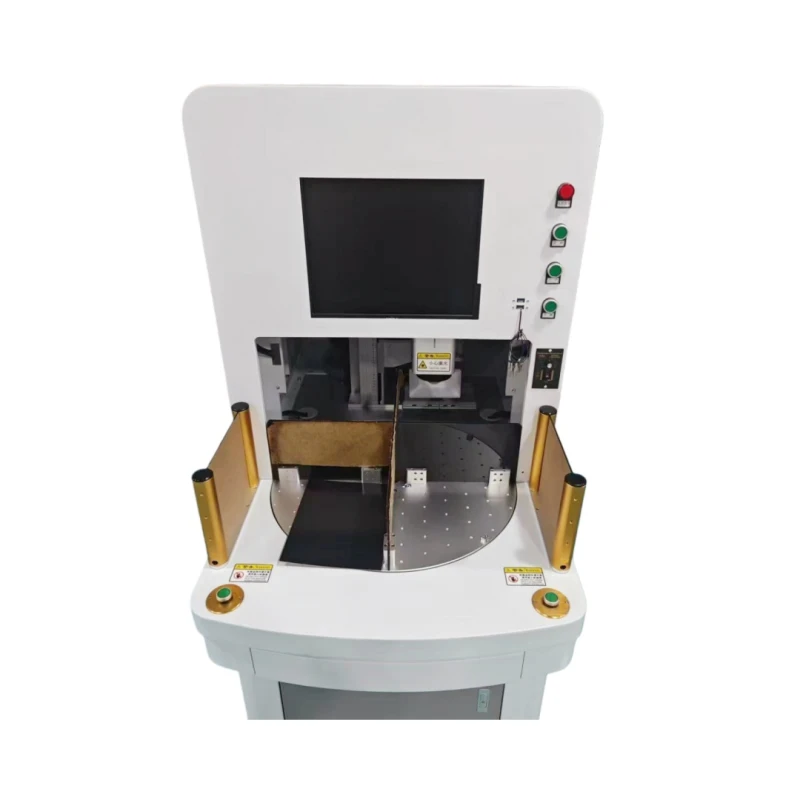

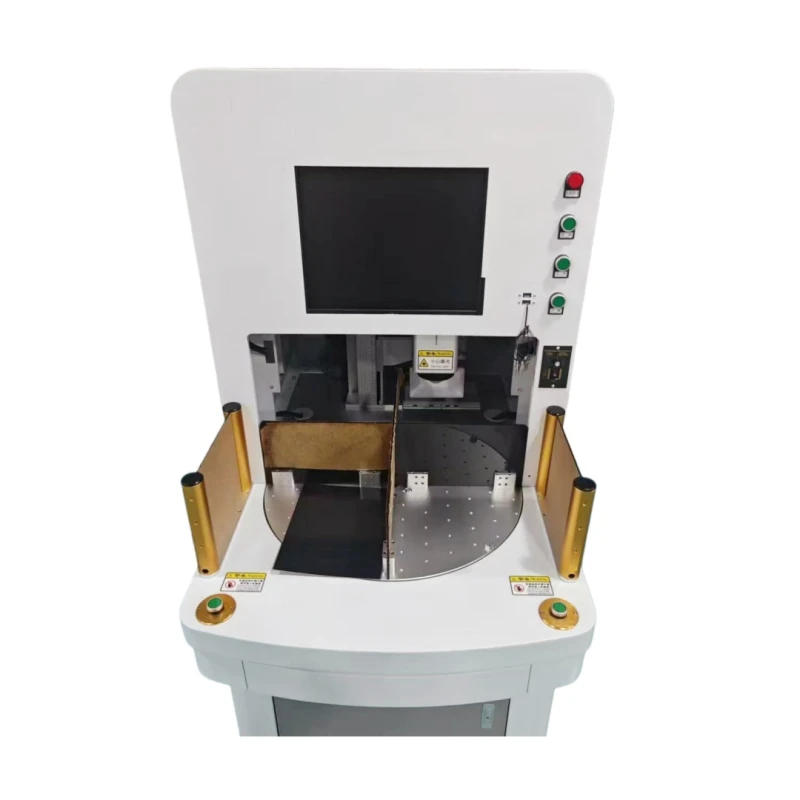

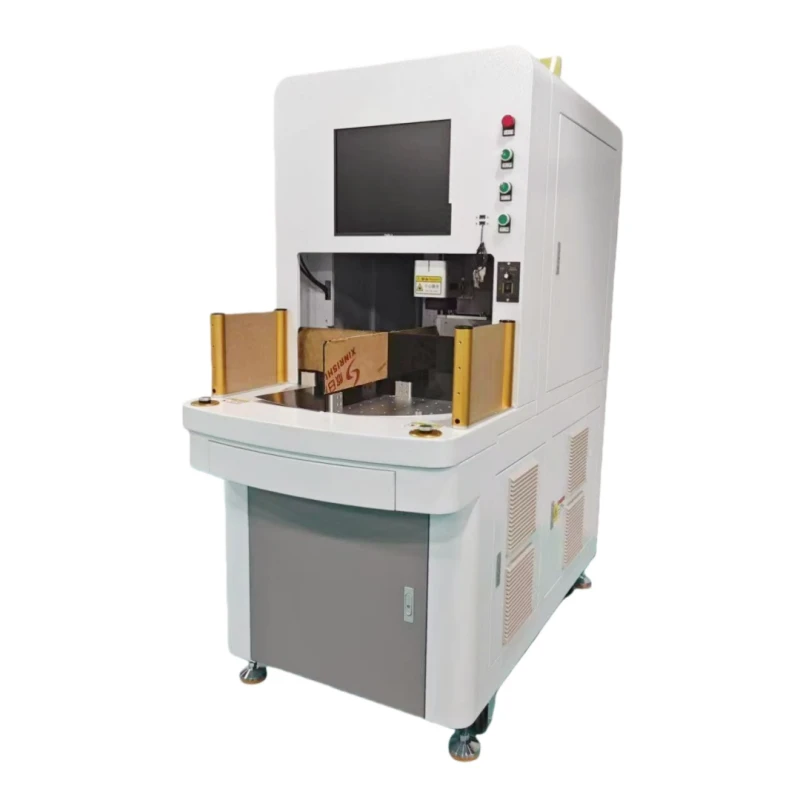

The Rotary Table Laser Marking Machine VIPIN-FSD-CR03F is a state-of-the-art solution designed for precision and efficiency in laser marking applications. This machine is engineered to deliver high-quality marking on a variety of surfaces, making it an ideal choice for industries that demand accuracy and speed. Its robust construction and advanced technology ensure reliable performance, even in demanding production environments.

One of the standout features of the VIPIN-FSD-CR03F is its user-friendly operation. The machine is designed with ease of use in mind, allowing operators to quickly learn and manage the marking process. The mechanical positioning system ensures precise alignment, while the ability to save documents and switch production lines rapidly enhances productivity. This flexibility is further supported by the machine's capability to mark on the surface of various products, accommodating a wide range of materials and shapes.

In addition to its operational efficiency, the Rotary Table Laser Marking Machine is environmentally friendly. It operates without pollution and does not require consumables, making it a sustainable choice for businesses looking to minimize their environmental impact. The machine also includes safety features such as alarms for missed markings and automatic processing stops when necessary, ensuring both product quality and operator safety.

Laser Marking System Supplier Product Traceability Lot Code Engraving Solution

Specifications

Work Area X: 100 mm
Work Area Y: 100 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 30 W
Laser Wavelength: 1064 nm (IR)
Voltage Requirement: 220V - 50Hz
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Nylon, Acrylic, Plexiglass, Ceramic
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Optional
Marking Values: Character, letter, barcode, QR code, Graphic data
Weight: Approx 220KG
Machine Size: 1434mm*760mm*1710mm
Power Supply: Single-phase, 220VAC, 10A, 2KW
Cooling Method: Air Cooling
Language: Chinese, English
Movement Control: Unit/servo motor/stepping motor/electric relay
Software: VIPin Laser System
Rotary Table Diameter: 600mm (Table segmented into 2,4,8 sectors as required)
Work Table Height: 900mm
Light Source: Combo Strip Light/Ring Light
Light Source Control: Digital Controller
Style No.: VIPIN-FSD-CR05UV/20FB
Repeating Accuracy: ±0.03mm (Flat Surface)
Positioning: Mechanical Positioning (Red light indicates)
Work Mode: Laser Fixed
Focus: Manually or Electric Motorized (optional)
Z Axis: 0-550mm (Adjustable)
Max Size Range: 100mm*100mm
Field Lens Range: 200mm*200mm
Laser Power: 30W
Laser Type: UV/Fiber Laser

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Easy to Operate: User-friendly interface for seamless operation.
  • Mechanical Positioning: Ensures precise and accurate marking with red light indication.
  • Quick Production Line Switching: Save documents and switch production lines effortlessly.
  • Versatile Marking Capabilities: Suitable for marking on the surface of various products.
  • Customizable Software Development: Supports software customization to meet specific needs.
  • Eco-Friendly Operation: No pollution and no consumables required.
  • Intelligent Alarms: Alerts for missed markings and stops processing when necessary.

Applications

  • Electronics Industry: Marking on electronic components, circuit boards, and devices.
  • Automotive Industry: Engraving on automotive parts, VIN numbers, and labels.
  • Medical Devices: Marking on surgical instruments, medical equipment, and implants.
  • Jewelry and Accessories: Engraving on jewelry, watches, and personal accessories.
  • Tool Manufacturing: Marking on tools, hardware, and industrial equipment.
  • Packaging Industry: Coding and marking on packaging materials and labels.
  • Plastic and Rubber Products: Marking on plastic parts, rubber components, and products.
  • Metal Fabrication: Engraving on metal sheets, components, and products.
  • Promotional Products: Customizing promotional items, gifts, and merchandise.
  • Textile Industry: Marking on fabrics, leather, and textiles.

Frequently Asked Questions

What types of lasers does the Rotary Table Laser Marking Machine use?
The machine uses UV and Fiber lasers.
What is the laser power of the VIPIN-FSD-CR03F?
The laser power is 30W.
What are the dimensions of the marking field and maximum size range?
The field lens range is 200mm x 200mm, and the maximum size range is 100mm x 100mm.
How is the machine cooled?
The machine is cooled using an air cooling method.
What is the work table height and rotary table diameter?
The work table height is 900mm, and the rotary table diameter is 600mm.
What languages does the VIPin Laser System software support?
The software supports Chinese and English.
What happens if marking is missed or processing stops?
The machine has alarms for missed marking and stops processing when NG (No Good) is detected.

Got more questions? Use the inquiry form to ask the supplier directly.
