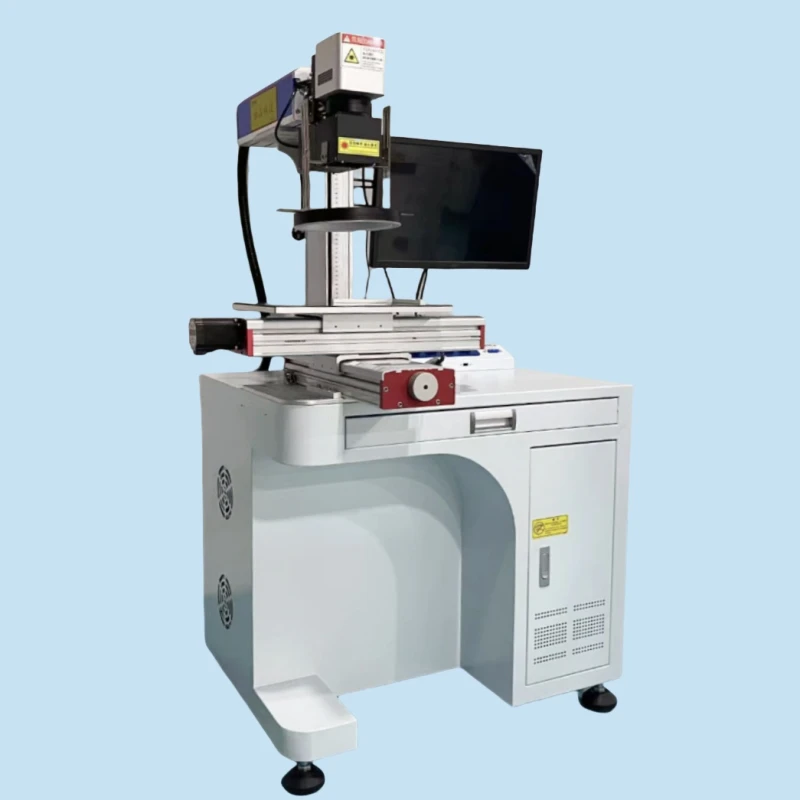

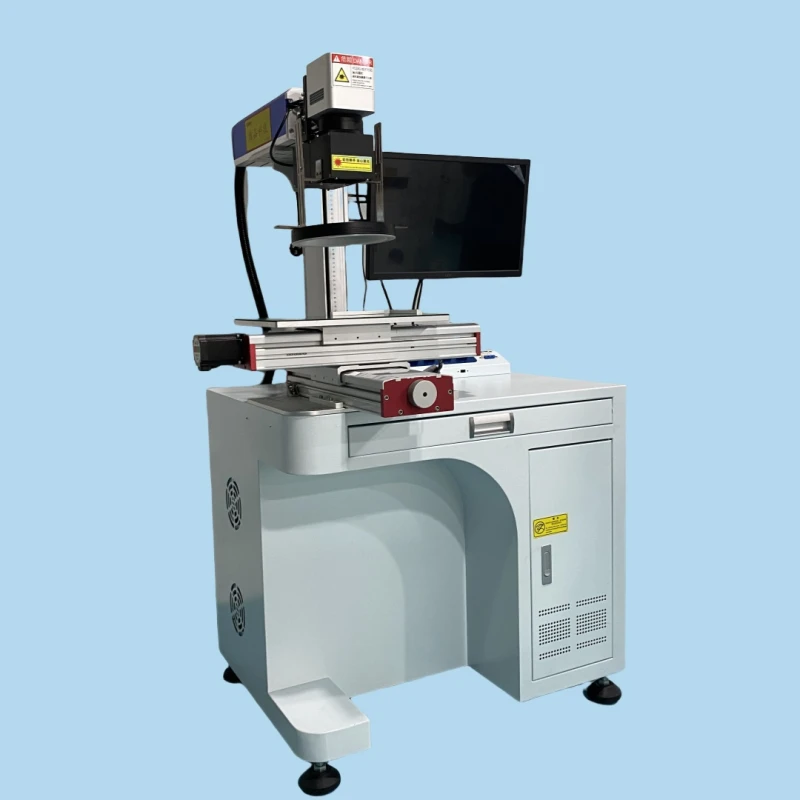

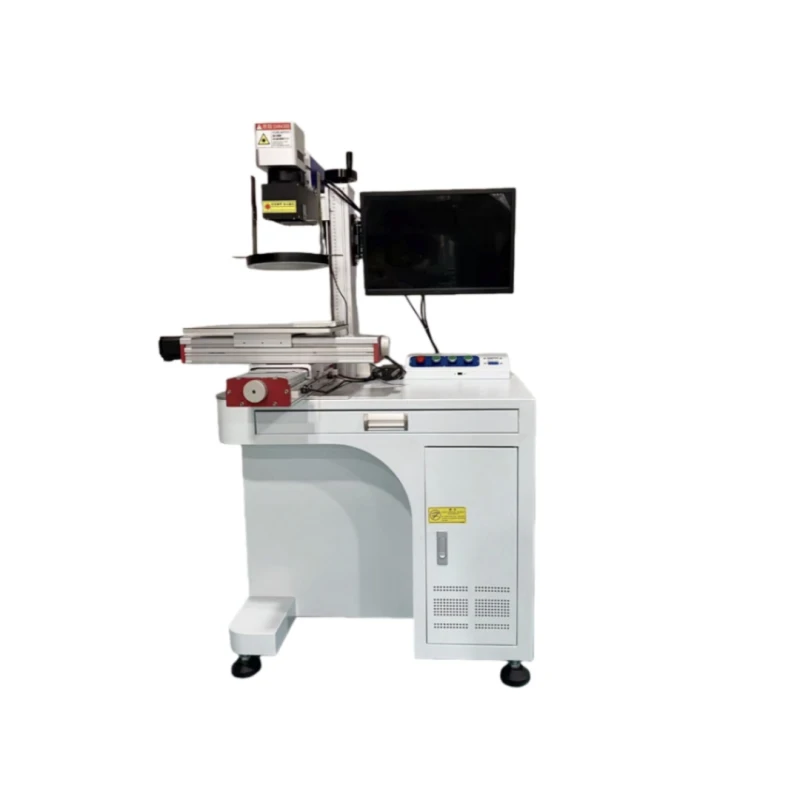

The Visual Laser Marking Machine VIPIN-FSD—XY05UV/20FB is a state-of-the-art solution designed to meet the demanding needs of modern manufacturing environments. This advanced machine is engineered to deliver precise and efficient laser marking, ensuring high-quality results across a variety of materials. With its robust construction and innovative technology, the VIPIN-FSD—XY05UV/20FB is an ideal choice for businesses looking to enhance their production capabilities.

At the heart of this machine is its sophisticated laser system, which combines UV and Fiber laser types to provide versatile marking options. The machine's laser power options of 5W and 20W, along with laser wavelengths of 355nm and 1064nm, allow for detailed and accurate markings. The field lens range of 100mm by 100mm and the XY module travel of 300mm by 400mm ensure a broad working area, making it suitable for a wide range of applications.

The VIPIN-FSD—XY05UV/20FB is designed with user convenience in mind. Its manual focus adjustment, indicated by a red light, allows for easy setup and operation. The machine's CCD visual marking positioning system, coupled with a high-resolution camera, ensures precise alignment and consistent results. Additionally, the machine's digital light source control and JCZ Card/PCIE marking card options provide flexibility and control over the marking process.

Built to accommodate various production needs, this laser marking machine supports multiple languages, including Chinese and English, and is compatible with the VIPin Laser System software. Its compact size of 600mm by 800mm by 1450mm and approximate weight of 150KG make it a practical addition to any production floor. The VIPIN-FSD—XY05UV/20FB is not only a powerful tool for marking but also a reliable partner in achieving high productivity and efficiency in your operations.
