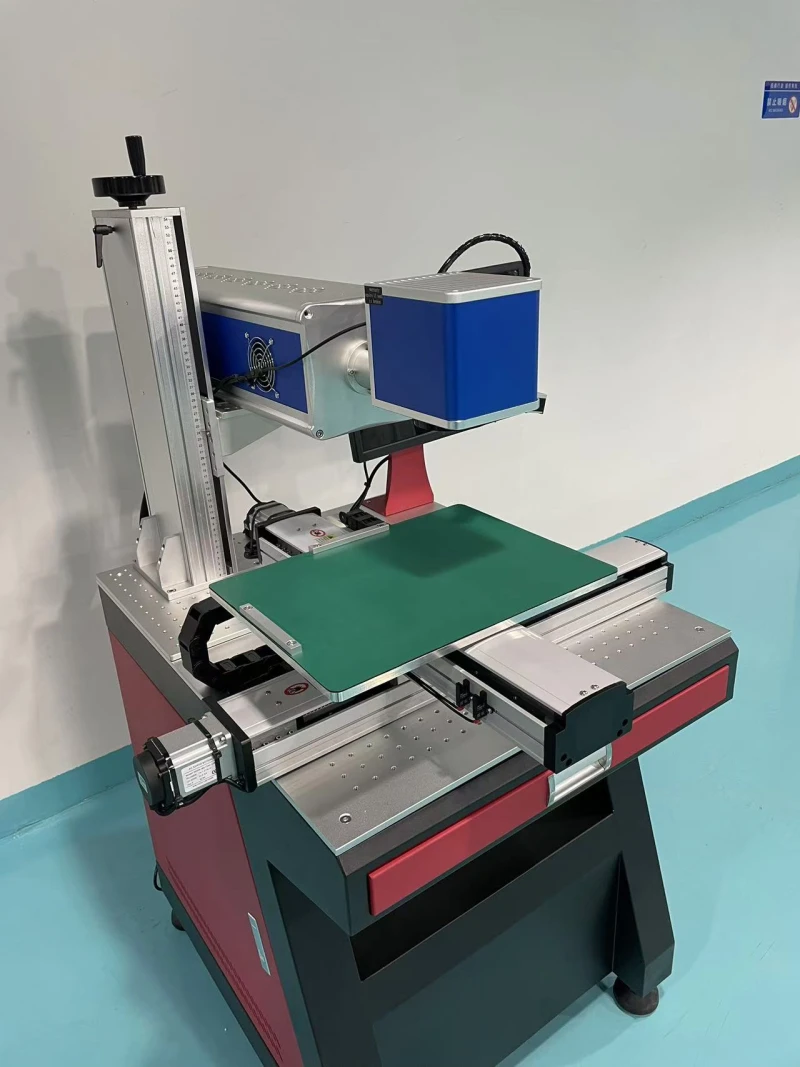

Thumbnail of Benchtop Batch Marking XY Moving Stage Laser Marker for Traceability Applications photo 1

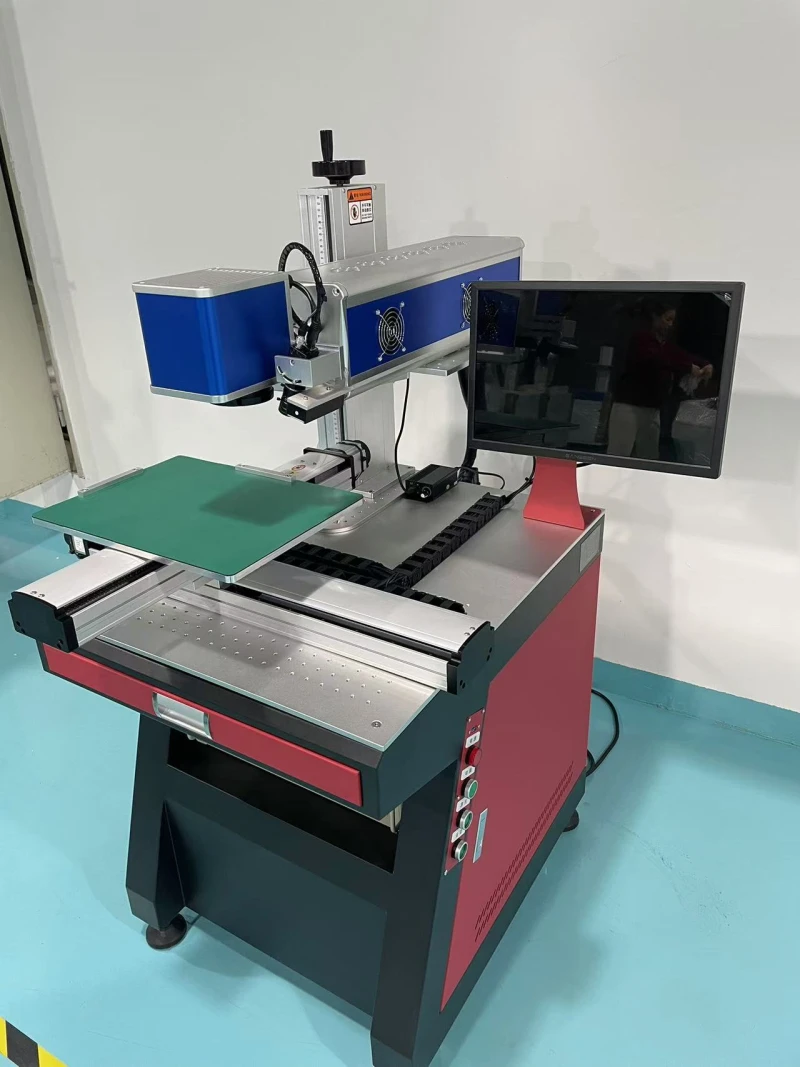

Thumbnail of Benchtop Batch Marking XY Moving Stage Laser Marker for Traceability Applications photo 2

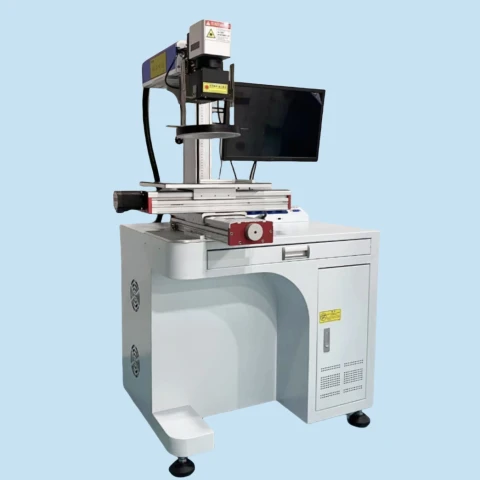

Thumbnail of Benchtop Batch Marking XY Moving Stage Laser Marker for Traceability Applications photo 3

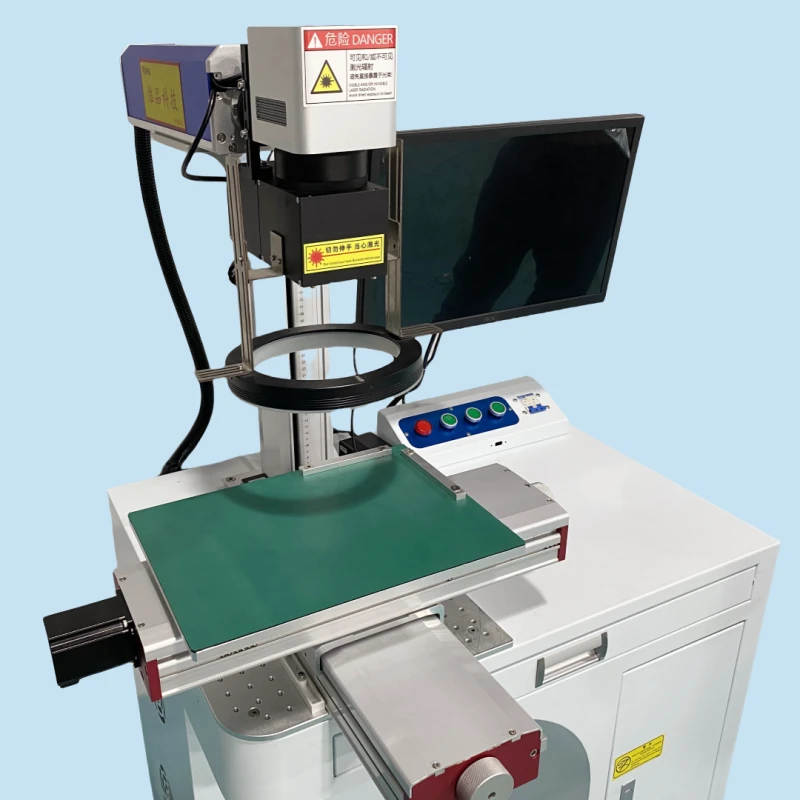

Thumbnail of Benchtop Batch Marking XY Moving Stage Laser Marker for Traceability Applications photo 4

Description

XY Module Laser Marking Machine
Vinpin Technology has developed a classic visual marking software independently, which only takes 2 minutes to create a labeling template, and it is quiet easy to be operated. It can also be connected with MES, Shopfloor and other system for data exchange. It  can capture the product outline via CCD, and then to do high-efficiency visual engraving based the product sculpture. Meanwhile, the lasering process can be monitored on the computer screen.
CCD Positioning System is composed of camera, lens, light source or image capturing unit, image processing software communication/input/output unit, etc. The system is doing measurement and judgement as human visual. Assisted by this system, lasering can be with more accuracy and efficiency.
The visual marking machine supports optical fiber, ultraviolet, carbon dioxide, green light and other laser types. It can also be used for galvanometer welding. Usually, the efficiency can be 3-5 time increased by using the CCD system.

Benchtop Batch Marking XY Moving Stage Laser Marker for Traceability Applications

Visit the Dongguan Veshay Laser Technology Co., Ltd Store

Specifications

Work Area X: 300 mm
Work Area Y: 400 mm
Beam Delivery: Galvo
Laser Source: Fiber
Laser Output Power: 51020 W
Laser Wavelength: 1064 nm (IR)
Marking Speed: 0 mm/sec
Voltage Requirement: 110V - 60Hz, 220V - 50Hz, Other / Not Specified
Materials: Stainless Steel, Steel/Iron, Anodized Aluminum, Plastic
Air Assist: Optional
Fume Extraction Unit: Not included
Safety Enclosure: Optional
Laserr Type: UV, Fiber,Mopa
Laser Length: 355nm,10640nm,1064nm,532nm,1064nm
Field Lens Range: 100mm*100mm/200mm*200mm(optional)
Z Axis: 0-550mm （Adjust Manually）
Focus Adjustable: Mode Manual（Red light indicates）
Work Mode: Laser Fixed
Positioning: CCD Visual Marking Position
Camera Pixel: 1200W
Camera Lens: 12mm
Repeating Accuracy: ±0.03mm（Flat Surface）
Marking Values: Character, barcode, QR code, Graphic data

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Easy to Operate.
  • Precise Marking.
  • Labor saving- One person can supervise multiple devices.
  • Documents can be saved and switching production lines fast.
  • Marking on PCB and surface of various products;
  • Support customization with software development.
  •  No pollution, no consumables.
  • Alarm calls when marking missed, and processing stops

Applications

  • Plastic
  • Wood
  • Laser engraving of hardware / plastic shells and their spare parts, electronic components of mobile phones, computers, tablets, routers, cosmetics, chargers, power banks, disks, lC chips, watches and other products.

Frequently Asked Questions

What types of lasers does the VIPIN-FSD-20V support?
The VIPIN-FSD-20V supports UV, CO2, Fiber, Green, and Mopa lasers.
What are the key features of the Visual Laser Marking Machine?
The key features include easy operation, precise marking, labor-saving capabilities, fast production line switching, marking on various surfaces, customization support, and no pollution or consumables.
What is the marking accuracy of the VIPIN-FSD-20V?
The repeating accuracy of the VIPIN-FSD-20V is ±0.03mm on flat surfaces.
What is the size and weight of the machine?
The machine size is 600*800*1450mm, and it weighs approximately 80KG.
What types of marking values can the machine handle?
The machine can handle characters, barcodes, QR codes, and graphic data.
What software is used to operate the machine?
The machine uses the VIPin Laser System software, which supports both Chinese and English languages.
How does the machine handle missed markings?
The machine has an alarm system that calls when a marking is missed, and processing stops when there is a non-good (NG) marking.
