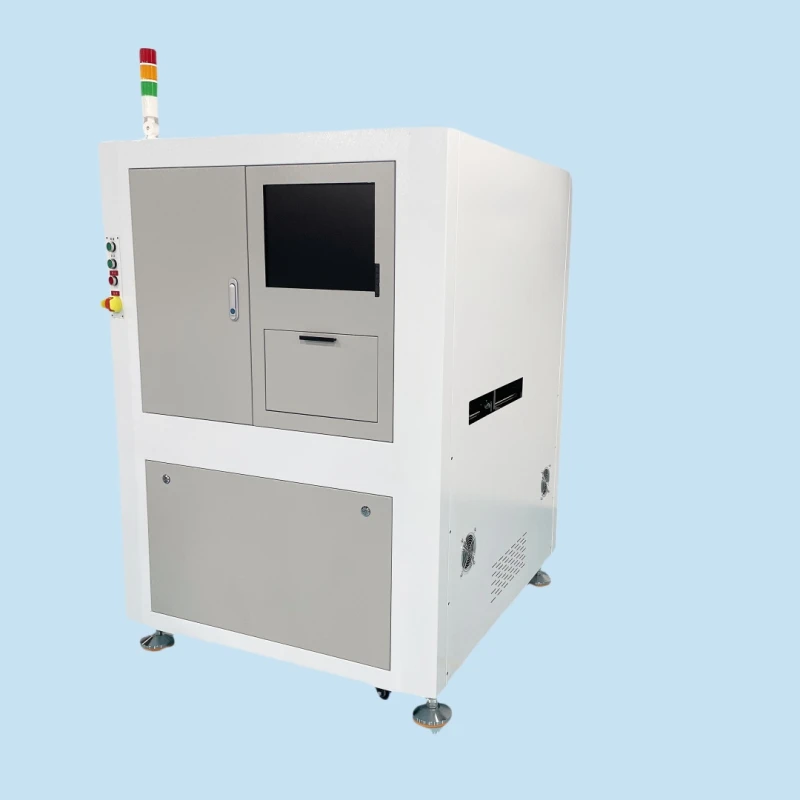

Thumbnail of VIPin-4545AT Inline Offline PCB Laser Marking Machine HDZ-PCB100 R-TEK S6 M6 HGTECH LCD10 LCD20 photo 1

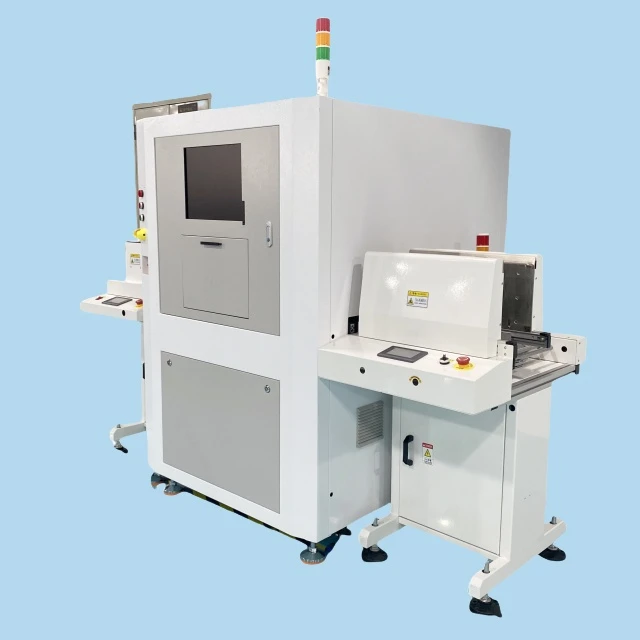

Thumbnail of VIPin-4545AT Inline Offline PCB Laser Marking Machine HDZ-PCB100 R-TEK S6 M6 HGTECH LCD10 LCD20 photo 2

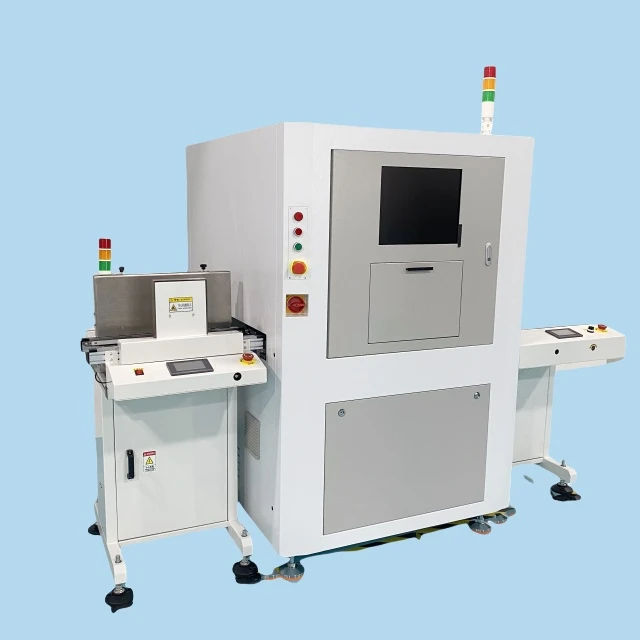

Thumbnail of VIPin-4545AT Inline Offline PCB Laser Marking Machine HDZ-PCB100 R-TEK S6 M6 HGTECH LCD10 LCD20 photo 3

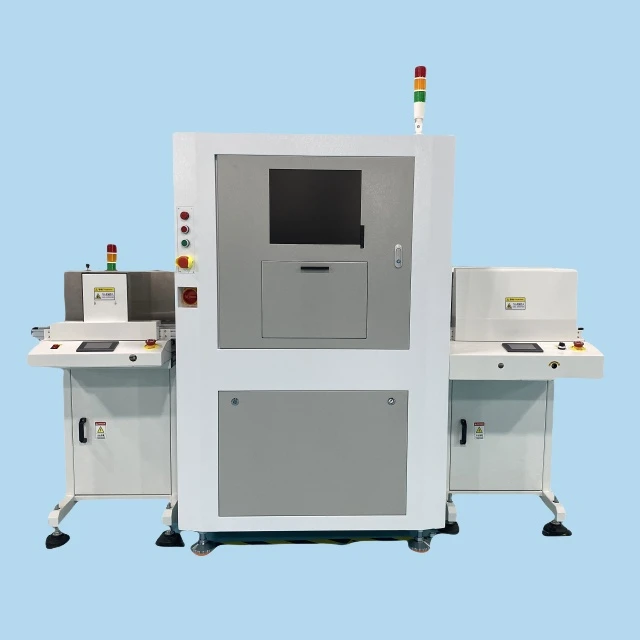

Thumbnail of VIPin-4545AT Inline Offline PCB Laser Marking Machine HDZ-PCB100 R-TEK S6 M6 HGTECH LCD10 LCD20 photo 4

Description

The VESHAY VIPIN-4545AT-02 PCB Laser Marking Machine is a cutting-edge solution designed to enhance efficiency and precision in the production line. This advanced machine is engineered to provide seamless integration into manufacturing processes, offering both online and offline models to cater to various production needs. Its robust design ensures continuous laser marking, allowing for intelligent traceability and easy access to Manufacturing Execution Systems (MES).

One of the standout features of the VIPin – 4545AT is its ability to replace traditional high-temperature tags with laser marking, which offers a more durable and reliable solution. The laser marking process ensures that markings are never erased, providing a permanent solution for labeling needs. This machine is capable of handling a wide range of materials, including PCBs with different types of oil coatings, as well as reinforcement steel sheets and shielding covers.

The VESHAY VIPin – 4545AT is equipped with a variety of laser types, including UV, CO2, GREEN, and Fiber, each offering different power outputs and wavelengths to suit specific marking requirements. With a minimum marking size as small as 0.8mm x 0.8mm, this machine ensures high precision and accuracy. The laser lifespan is impressive, with some types lasting up to 50,000 hours, ensuring long-term reliability and minimal maintenance.

Designed for high-speed production environments, the VIPin – 4545AT can achieve an average speed of 360 components per hour, with each mark taking approximately 6 seconds. This efficiency translates to an annual output of over 2 million marks, making it an ideal choice for large-scale manufacturing operations. The machine's cost-effectiveness is further enhanced by its low consumable requirements and reduced labor costs, offering significant savings over traditional labeling methods.

Overall, the VESHAY VIPin – 4545AT PCB Laser Marking Machine is a versatile and reliable solution for modern manufacturing needs. Its advanced technology, combined with its ability to handle a wide range of materials and marking requirements, makes it an invaluable asset for any production line seeking to improve efficiency and reduce costs.

VIPin-4545AT Inline Offline PCB Laser Marking Machine HDZ-PCB100 R-TEK S6 M6 HGTECH LCD10 LCD20

Visit the Dongguan Veshay Laser Technology Co., Ltd Store

Specifications

Work Area X: 450 mm
Work Area Y: 450 mm
Beam Delivery: Galvo
Laser Source: CO2
Laser Output Power: 10 W
Laser Wavelength: 10.6 um (IR)
Marking Speed: 500 mm/sec
Voltage Requirement: 110V - 60Hz, 220V - 50Hz, Other / Not Specified
Materials: Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum, Glass, Plastic, Wood, Paper, Textile, Nylon, Acrylic, Plexiglass, Ceramic
Air Assist: Included
Fume Extraction Unit: Included
Safety Enclosure: Included
Laser Type: UV CO2 Fiber Green Laser(optional
Repeat Positioning Accurancy: ±0.1mm
Minimum Barcode Size: 3*3mm
Maximun PCB Size: 30*30-450*450mm
PCB Thickness: 0.5-5mm
PCB Pass Height: Up:35MM Down: 15mm
Positioning System: CCD + Mark positioning
Control System: PC + Shaft Car+Servo
Barcode Detection System: CCD online detection
PCB Allowed Deformation: <3mm
Transition Direction: Left->Right/Right -> Left
Marking Application: Character、Barcode、QR code、Graphic Data
Smoke Treatment Method: Smoke Purification System
Marking Angle: 0-360°

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • High Precision Laser Marking: Capable of marking QR codes, barcodes, and characters on various PCB surfaces including white, green, black, blue, and red oil.
  • Versatile Laser Types: Supports UV, CO2, GREEN, and Fiber lasers with power options of 5W, 10W, and 20W.
  • Long-lasting Performance: Laser lifespan of up to 50,000 hours ensures durability and reliability.
  • Efficient Production: Average marking time of 6 seconds per mark with a speed of 360 components per hour.
  • Cost-effective Operation: Total label cost for 5 years is ¥1,975k, with a total labor cost of ¥540k.
  • Advanced Cooling Methods: Water and air cooling options available for different laser types.
  • High Accuracy: Repeat accuracy of ±0.02mm and minimum point diameter of 0.13mm.
  • Flexible Marking Content: Supports QR Code, Micro QR Code, IQR Code, Data Matrix, GS1 Data, Matrix, PDF417, CODE39, CODE128, ITF, NW-7, JAN(EAN), UPC, and English characters.
  • Comprehensive Applications: Ideal for marking on reinforcement steel sheets and shielding covers, with easy code reading and verification post-marking.
  • Robust Construction: Designed for continuous operation with access to MES and intelligent traceability.
  • Multiple Model Options: Available in online and offline models for different production line requirements.

Applications

  • Contrasting 贴标: High contrast labeling for easy readability.
  • Line Size: Suitable for various line sizes.
  • Minimal Letter: Capable of marking small letters.
  • Minimal QR Code: Efficient for small QR code marking.
  • Consumables: Low consumable cost with strong durability.
  • Laser Marking: Permanent marking that does not fade or wear off.
  • Paper Labels: Capable of marking on paper labels.
  • High Temperature Labels: Suitable for marking on high temperature labels.
  • Annual Output: Capable of marking 10 million pieces annually with manual labeling.
  • Cost Efficiency: Low label and labor costs over 5 years.
  • Output Speed: Average marking time of 6 seconds per mark, with a speed of 360 cph/h.
  • Machine Sets: Requires 4-5 sets of machines for 10 million boards output.
  • Replace High Temperature Tags: Efficient in replacing high temperature tags without damage.
  • Durability: Laser marking is durable and does not disappear.
  • Online Automatic Marking: Can be integrated into production lines for continuous marking and intelligent traceability.
  • Offline Models: Available for boards with components and bare boards.
  • Laser Types: Available in CO2, UV, GR, and Fiber lasers with various power and lifespan options.
  • Marking Applications: Suitable for marking QR codes, barcodes, characters, and other information on PCBs with different oil types and on reinforcement steel sheets and shielding covers.
  • Equipment Parameters: Includes various laser types, power options, cooling methods, and marking capabilities.

Frequently Asked Questions

What types of lasers are available in the VESHAY VIPin – 4545AT PCB Laser Marking Machine?
The machine offers UV, CO2, GREEN, and Fiber laser types.
What is the lifespan of the lasers used in the PCB Laser Marking Machine?
The CO2 and Fiber lasers have a lifespan of ≥50000 hours, while the UV and GREEN lasers have a lifespan of ≥15000 hours.
What is the minimum marking size achievable with the PCB Laser Marking Machine?
The minimum marking size is 0.8*0.8mm.
What are the applications of the PCB Laser Marking Machine?
It is mainly used to mark QR codes, barcodes, characters, and other information on PCBs with various oils, as well as on reinforcement steel sheets and shielding covers.
What is the average marking speed of the machine?
The average speed is 360 components per hour (cph/h).
How does the laser marking compare to traditional labeling methods?
Laser marking is more durable as it never disappears, unlike traditional labels which can drop off or break easily.
What is the cost of operating the laser marking machine compared to manual labeling over five years?
The total cost for operating the laser marking machine for five years is ¥2.515 million, which includes machine costs and labor, compared to the total label cost of ¥1.975 million for manual labeling.
