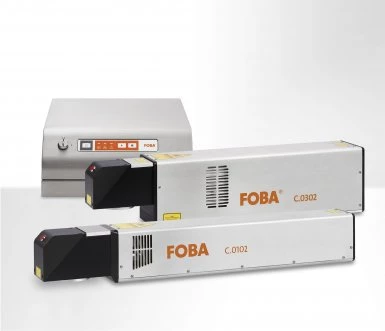

CO2 Laser Marker C.0302

Description

Wavelengths, scan head aperture, marking head position, IP rating, power and much more can be configured to suit your application needs. Flexibility is built-in.

With print speeds up to 2,000 characters/sec. and line speeds up to 900 m/min., these marking lasers address both simple and complex code requirements on a range of substrates including paperboard, glass, painted metals and many plastic materials.

This flexibility makes the C-Series lasers well suited for laser marking applications in various industries: for automotive parts, electronic components, plastic parts, cables, and many more. Marking your products on-the-fly or when stationary, with simple date codes or complex graphics, the C.0102 and C.0302 offer cost effective solutions to your part marking challenges.

The C.0102 10-Watt offers all the performance features the C.0302 30-Watt marking laser provides, but with a power source better matched for moderate line speed applications or those at rest. The 30-Watt C.0302 is perfect for higher speed mark-on-the-fly applications (of up to 150,000 products/hour) or more demanding materials such as many plastics.

Specifications

Work Area X:	100.1 mm
Work Area Y:	66.7 mm
Beam Delivery:	Galvo
Laser Source:	CO2
Laser Output Power:	30 W
Laser Wavelength:	10.6 um (IR)
Marking Speed:	2000 mm/sec
Voltage Requirement:	110V - 60Hz, 120V - 60Hz, 220V - 50Hz, 230V - 50Hz, 230V - 60Hz
Materials:	Stainless Steel, Steel/Iron, Steel Alloy, Aluminum, Anodized Aluminum, Brass, Copper, Gold, Silver, Nickel, Titanium, Platinum
Air Assist:	Included
Fume Extraction Unit:	Optional
Safety Enclosure:	Not Specified

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Reliability: Air-cooled laser virtually eliminates maintenance intervals; High-resolution marking head for high quality, permanent and consistently crisp codes that assure product traceability and tamper-proofing.
Built-in productivity: A variety of mark window options and high-speed marking heads allow for a throughput increase of up to 67 %.
Simple usability: Most flexible integration solution with 32 standard beam delivery options; Quick set up and easy redeployment via detachable umbilical cable and simple-to-use accessory connections; 4 interface options plus a choice of networking communications to match your preferred workflow.

Applications

Automobile industry; medical devices manufacturing; electronics; extrusion; plastics processing; packaging industry; food and beverage industry
Various industrial direct part marking applications (serial marking, barcodes, 2D codes);
Markings while the object is stationary or in motion (MOTF – marking on the fly)

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Ships from:

Germany

Sold by:

ALLTEC Angewandte Laserlicht Technologie GmbH

On FindLight:

since 2019

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What are the features of the C-Series lasers?

The C-Series lasers offer reliability with an air-cooled laser that virtually eliminates maintenance intervals, built-in productivity with a variety of mark window options and high-speed marking heads, and simple usability with flexible integration solutions and quick set up.

What industries are the C-Series lasers suitable for?

The C-Series lasers are well suited for laser marking applications in various industries, including automotive parts, electronic components, plastic parts, cables, and many more.

What is the difference between the C.0102 and C.0302 models?

The C.0102 is a 10-Watt laser that is better suited for moderate line speed applications or those at rest, while the C.0302 is a 30-Watt laser that is perfect for higher speed mark-on-the-fly applications or more demanding materials such as many plastics.

What is the print speed of the C-Series lasers?

The C-Series lasers have print speeds up to 2,000 characters/sec. and line speeds up to 900 m/min.

What materials can the C-Series lasers mark on?

The C-Series lasers can mark on a range of substrates including paperboard, glass, painted metals, and many plastic materials.
