Description
CSRAYZER's Faraday Rotator Mirror, is used for eliminating polarization induced fluctuations in fiber interferometers, Brillouin amplifier, fiber laser, fiber sensor, and fiber optic antenna remoting systems, with excellent optical performance index, ultra-small package size, high environmental adaptability and reliability.

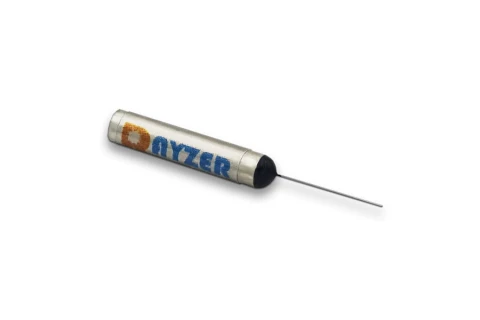

Single Mode 1550nm Faraday Rotator Mirror - FRM-1550-2.5X12-SMF28e-1-0-N
Specifications
| Center Wavelength: | 1550 nm |
|---|---|
| Operating Bandwidth: | 20 nm |
| Insertion Loss (max): | 0.6 dB |
| Faraday Rotation Angle (single Pass): | 90 deg deg |
| Max. Average Power: | 500 mW |
| Fiber Type: | SMF28e bare fiber |
| Connector: | NONE |
Download Data Sheet
Features
- Excellent optical performance index
- Ultra-small package size
- High environmental adaptability and reliability
Applications
- Fiber interferometers
- Brillouin amplifier
- Fiber laser
- Fiber sensor
- Fiber optic antenna-remoting systems
Frequently Asked Questions
What is the center wavelength of the device?
The center wavelength of the device is 1550±20 nm.
What is the maximum insertion loss of the passband?
The maximum insertion loss of the passband is ≤0.6 dB.
What is the maximum average power the device can handle?
The maximum average power the device can handle is ≤500 mW.
What type of fiber is used in this device?
The device uses SMF-28e fiber with a 900μm loose tube.
What are the operating temperature limits for this device?
The operating temperature range for this device is -0 to +70 ℃.
What is the package size of the device?
The package size of the device is 2.5*12 mm.
What type of connector is used with this device?
The device uses an FC/APC connector.
