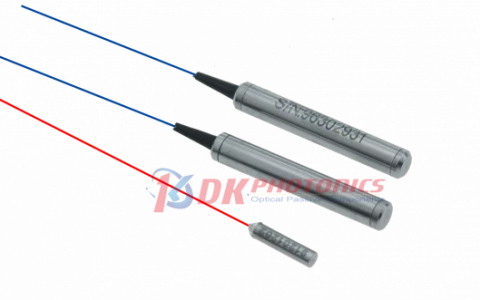

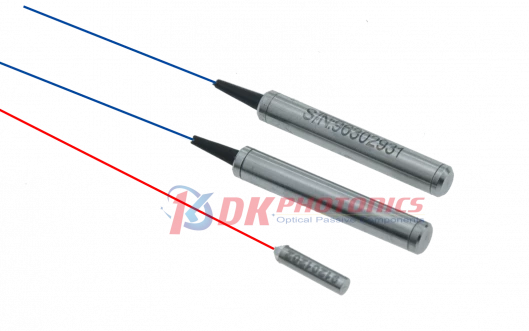

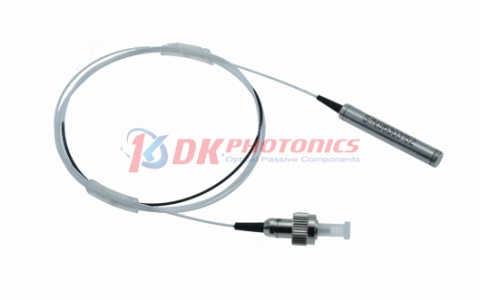

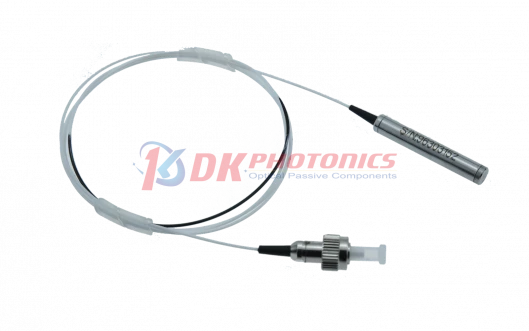

1064nm Faraday Mirror

• High Isolation: Ensures superior signal integrity by effectively minimizing back reflections and crosstalk in optical systems.
• Low Insertion Loss: Guarantees minimal signal attenuation, with typical values of ≤3.0 dB (45° rotation) and ≤5.0 dB (90° rotation), supporting high-performance applications.
• High Return Loss: Provides excellent reflection suppression, enhancing system stability and performance.
• Epoxy-Free Optical Path: Delivers enhanced reliability and long-term stability, especially in high-power and high-temperature environments.
• Compact Size: Space-saving design (standard Ø5.5mm x L35mm package) ideal for integration into dense optical systems and modules.
• Customizable Options: Available in various Faraday rotation angles (45° or 90°), fiber types, pigtail diameters, lengths, and connector types to meet specific application needs.
• Wide Operating Wavelength: Centered at 1064nm with ±5nm bandwidth, suitable for a range of fiber optic applications.
• Polarization Rotation: Provides precise 45° or 90° rotation of the polarization state, eliminating polarization sensitivity in optical fiber systems.
• High Temperature Stability: Designed for robust performance in demanding environments.
• RoHS Compliant: Environmentally friendly and compliant with international safety standards.

Typical Applications:

• Fiber Optical Amplifiers
• Fiber Optic System Testing
• Fiber Optic LAN and Telecommunication Systems
• Fiber Laser Systems
• Brillouin Amplifier Systems
• Fiber Interferometers
• Optical Sensing and Measurement
• Fiber Optic Antenna Remoting Systems

Why Choose DK Photonics 1064nm Faraday Mirror?

• Proven reliability and performance in advanced fiber optic networks
• Custom engineering support for unique system requirements
• Fast delivery and responsive technical support

• Fiber Optic Amplifiers
  Enhance the performance and stability of fiber amplifiers by eliminating polarization-induced gain fluctuations, ensuring consistent signal amplification in high-power fiber laser and amplifier systems.
• Fiber Optic System Testing
  Used in test setups to minimize polarization sensitivity, enabling accurate and repeatable measurements in optical component and system characterization.
• Fiber Optic LAN Systems
  Improve signal integrity and reduce polarization-related losses in local area network (LAN) fiber optic links, supporting reliable high-speed data transmission.
• Telecommunications Networks
  Applied in long-haul and metro fiber optic communication systems to mitigate polarization effects, enhancing overall network performance and reliability.
• Fiber Interferometers
  Eliminate polarization-induced phase fluctuations in interferometric sensors and measurement systems, increasing measurement accuracy and stability.
• Brillouin Amplifier Systems
  Suppress polarization-dependent gain variations in Brillouin fiber amplifiers, supporting stable and efficient signal amplification for advanced optical networks.
• Fiber Laser Systems
  Used in fiber laser cavities to control and stabilize polarization, improving output power consistency and beam quality.
• Fiber Optic Antenna Remoting
  Enable stable and low-loss signal transmission in remote antenna systems by compensating for polarization changes over long fiber runs.
• Polarization Diversity Receivers
  Integrated into receivers to convert arbitrary input polarization states, facilitating polarization-insensitive detection in advanced optical communication systems.
• Quantum Communication and Sensing
  Maintain polarization integrity in quantum key distribution (QKD) and quantum sensing applications, ensuring secure and accurate data transmission.
• Optical Coherence Tomography (OCT)
  Improve image quality and measurement precision in OCT systems by reducing polarization artifacts and enhancing signal stability.
• Polarization Mode Dispersion (PMD) Compensation
  Used in PMD compensation modules to mitigate the effects of polarization mode dispersion in high-speed optical networks.
