Description
CSRAYZER's Faraday Rotator Mirror is used for eliminating polarization-induced fluctuations in fiber interferometers, Brillouin amplifiers, fiber lasers, fiber sensors, and fiber optic antenna remoting systems, with excellent optical performance index, ultra-small package size, high environmental adaptability, and reliability.

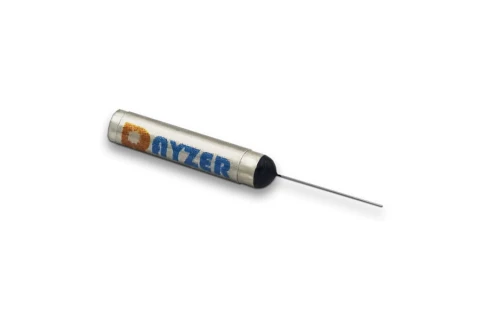

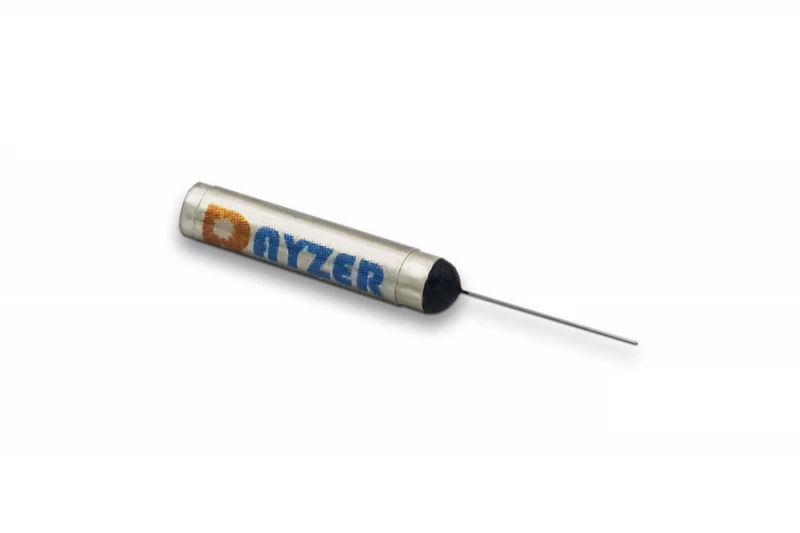

NonPigtail 1550nm Faraday Rotator Mirror - NFRM-1550-10x50-SMF28e-FA
Specifications
| Center Wavelength: | 1550 nm |
|---|---|
| Operating Bandwidth: | 10 nm |
| Insertion Loss (max): | 0.5 dB |
| Faraday Rotation Angle (single Pass): | 90 deg deg |
| Max. Average Power: | 300 mW |
| Package Size: | 5.0x50 mm |
| Connector: | FC/APC |
Download Data Sheet
Features
- Excellent optical performance index
- Ultra-small package size
- High environmental adaptability and reliability
Applications
- Fiber interferometers
- Brillouin amplifiers
- Fiber lasers
- Fiber sensors
- Fiber optic antenna remoting systems
Frequently Asked Questions
What is the center wavelength of the NFRM-1550-10x50-SMF28e-FA?
The center wavelength is 1550 nm with a tolerance of ±10 nm.
What is the maximum insertion loss for the NFRM-1550-10x50-SMF28e-FA?
The maximum insertion loss of the passband is ≤0.5 dB.
What is the maximum average power the device can handle?
The maximum average power the device can handle is ≤300 mW.
What are the operating and storage temperature ranges for this device?
The operating temperature range is -0 to +70 °C, and the storage temperature range is -40 to +85 °C.
What type of fiber is used in the NFRM-1550-10x50-SMF28e-FA?
The device uses SMF-28e fiber with a 0.9 um loose tube inside.
What is the package size of the NFRM-1550-10x50-SMF28e-FA?
The package size is 5.0x50 mm.
What type of connector does the NFRM-1550-10x50-SMF28e-FA use?
The device uses an FC/APC connector.
