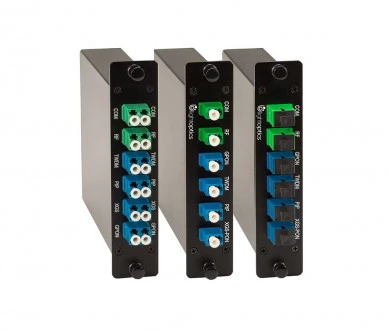

Coexistence Element CEx WDM LGX Module for GPON & XGS-PON & NG-PON
Description
Coexistence Element CEx WDM LGX Module for GPON & XGS-PON & NG-PON
Specifications |
|
|---|---|
| Vendor Name: | LightOtics |
| OTDR Monitor Band: | 1625-1675nm |
| Configuration Ports: | GPON+XGS-PON+NG-PON2+RF Video+PtP+OTDR |
| GPON/25G: | 1290 – 1500nm |
| XGS-PON: | 1260 - 1280nm & 1575 – 1581nm |
| NG-PON2: | 1524-1544nm & 1596-1603nm |
Features
- Very low insertion loss & PDL
- High isolation
- Excellent environmental & mechanical stability
- Premium grade components & connectivity
- G.984.5 compliant
- RoHS compliant
Applications
- CWDM vs DWDM system
- GPON XGS-PON system
- FTTH access networks
- Optical telecommunication networks
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2022
Frequently Asked Questions
The purpose of the CEx module is to enable existing PON services to coexist with XGS-PON, NG-PON2, RF video, OTDR, and other current and future technologies.
The FTTx cassette CEx modules can operate in temperature environments ranging from -10°C to +65°C, while the LGX module CEx modules can operate in temperature environments ranging from -40°C to +70°C.
The LGX CEx WDM modules are tested to IEC 61300-2-1, -9, -21, -22, -26 and GR-1209 requirements.
The CEx module features very low insertion loss and PDL, high isolation, excellent environmental and mechanical stability, premium grade components and connectivity, and compliance with G.984.5 and RoHS standards.
The CEx module can be used for CWDM vs DWDM systems, GPON XGS-PON systems, FTTH access networks, and optical telecommunication networks.
