Description
Discover the advanced capabilities of our high-quality glass fibers designed for infrared (IR) applications. These fibers are crafted from pure fused silica glass with a low hydroxyl (OH) content, ensuring a uniform refractive index across the entire diameter. This meticulous construction allows the fibers to perform efficiently within a wavelength range of 400 nm to 2400 nm, covering both visible and infrared spectrums (VIS-IR). This makes them an ideal choice for a variety of demanding applications.
Our fibers are available with a selection of coatings, including acrylate, silicone, and polyimide, each offering unique properties to suit specific operational environments. The step-index multimode design of these fibers enhances their versatility, making them suitable for optical data transmission, sensor technology, spectroscopy, and medical technology, as well as laser applications. With a numerical aperture of 0.22, these fibers provide excellent light-gathering capabilities, which can be adjusted upon request to meet specific requirements.

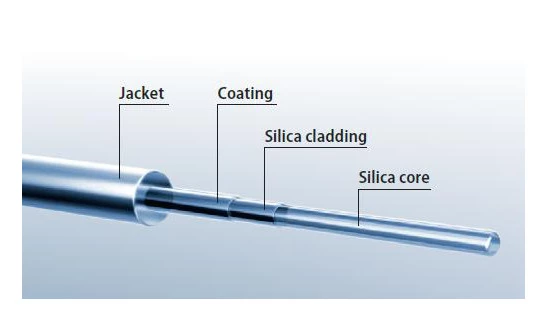

For added durability and protection, our fibers can be equipped with a jacket, available in various materials such as Nylon® and Tefzel®. These jackets not only provide additional mechanical strength but also allow for color customization, with options including black, blue, transparent, yellow, red, and white. This feature facilitates easy identification and organization in complex systems. Whether you require fibers for short-term or long-term use, our products are engineered to withstand various environmental conditions, ensuring reliable performance and longevity.
Tefzel Silicone-Jacket Coated Multimode Fiber – 84810174N
Specifications |
|
|---|---|
| Core Diameter: | 400 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features
- Core Material: Pure fused silica glass with low OH content for optimal infrared transmission.
- Wavelength Range: 400 nm to 2400 nm (VIS-IR), suitable for a wide range of applications.
- Acrylate Coating: Temperature range from -40 °C to 85 °C. Coating diameter varies from 200 µm to 345 µm.
- Dual Acrylate Coating: Temperature range from -40 °C to 85 °C, with an optional range up to 150 °C. Coating diameter varies from 230 µm to 400 µm.
- Polyimide Coating: Temperature range from -190 °C to 385 °C. Coating diameter varies from 125 µm to 245 µm.
- Acrylate/Nylon® Jacket: Temperature range from -40 °C to 85 °C. Jacket diameter is 500 µm, available in black, blue, transparent, yellow, red, and white.
- Silicone/Tefzel® Jacket: Temperature range from -40 °C to 150 °C. Jacket diameter is 500 µm, available in black, blue, and transparent.
- Numerical Aperture: Standard 0.22, with options available from 0.1 to 0.4 upon request.
- Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Bending Radius: Short-term bending radius is 100x the clad radius, and long-term bending radius is 600x the clad radius.
- Special Features: ORMOCER® coating available for continuous use at 200 °C.
Applications
- Optical Data Transmission: Suitable for high-speed data communication over a wide range of wavelengths from 400 nm to 2400 nm (VIS-IR).
- Sensor Technology: Utilized in various sensor applications due to its reliable performance and wide wavelength range.
- Spectroscopy: Ideal for spectroscopic applications requiring precise light transmission and low signal loss.
- Medical Technology: Used in medical devices and procedures that require accurate light delivery and collection.
- Laser Applications: Supports laser-based technologies with its high-quality silica core and customizable coatings.
Frequently Asked Questions
Tefzel Silicone-Jacket Coated Multimode Fiber is a type of glass fiber used in a wavelength range from 400 nm to 2400 nm (VIS-IR). It is covered with a coating either consisting of acrylate, silicone or polyimide.
Tefzel Silicone-Jacket Coated Multimode Fiber is used in optical data transmission, sensor technology, spectroscopy, medical technology and laser applications.
The numerical aperture for Tefzel Silicone-Jacket Coated Multimode Fiber is 0.22 (0.1 to 0.4 on request).
The short-term bending radius for Tefzel Silicone-Jacket Coated Multimode Fiber is 100 x clad radius.
The temperature range for Tefzel Silicone-Jacket Coated Multimode Fiber is -40 °C to 150 °C.
