Description
Introducing our high-performance glass fibers designed for infrared (IR) applications, crafted with pure fused silica glass. These fibers boast a low OH content and maintain a uniform refractive index across their entire diameter, making them ideal for use in the wavelength range of 400 nm to 2400 nm, covering both visible (VIS) and infrared (IR) spectrums. The versatility of these fibers is enhanced by their coatings, which are available in materials such as acrylate, silicone, or polyimide, ensuring protection and durability in various environments.
Our step-index multimode fibers are engineered to deliver exceptional performance in a wide range of industries. Whether you are involved in optical data transmission, sensor technology, spectroscopy, medical technology, or laser applications, these fibers provide reliable and efficient solutions. The core diameters range from 40 μm to 200 μm, with corresponding cladding diameters, ensuring adaptability to specific needs and applications.
For environments requiring specific protective features, our fibers with coating and jacket options offer enhanced durability. Coatings such as acrylate paired with a Nylon® jacket, or silicone with a Tefzel® jacket, provide additional resilience against environmental factors. The fibers are designed to withstand a broad temperature range, ensuring performance stability in both standard and demanding conditions. With options for various colors, these fibers can be customized to meet aesthetic or functional requirements in your projects.
Single Acrylate Coated Multimode Fiber – 84810001N
Specifications |
|
|---|---|
| Core Diameter: | 40 um |
| Wavelength Range: | 400 – 2400 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
Features

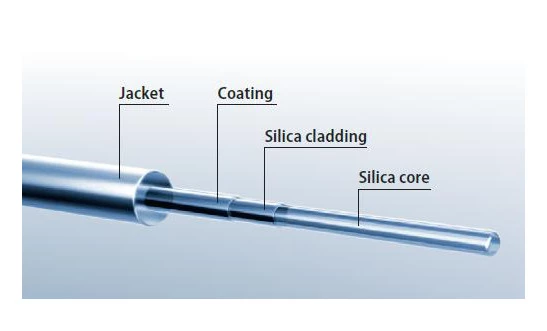

- Material Composition: The core of the glass fibers is made of pure fused silica glass with low OH content, ensuring a uniform refractive index across the entire diameter.
- Wavelength Range: Suitable for use in the 400 nm to 2400 nm range, covering both visible (VIS) and infrared (IR) spectrums.
- Coating Options: Available with coatings of acrylate, silicone, or polyimide to suit various applications and environments.
- Multimode Fiber Applications: Ideal for optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
- Step-Index Multimode: Designed for VIS-IR applications with core diameters ranging from 40 μm to 200 μm.
- Bending Radius: Short-term bending radius is 100 times the clad radius, while the long-term bending radius is 600 times the clad radius.
- Color Options for Jackets: Available in black, blue, transparent, yellow
Applications
- Optical Data Transmission: The fibers are used for high-speed data transmission, taking advantage of their multimode capabilities.
- Sensor Technology: These fibers are suitable for various sensor applications, providing accurate and reliable data collection.
- Spectroscopy: Ideal for use in spectroscopic analysis due to their wide wavelength range from 400 nm to 2400 nm (VIS-IR).
- Medical Technology: Used in medical devices and applications, benefiting from their precision and reliability.
- Laser Applications: These fibers are designed for efficient laser transmission, supporting various industrial and research applications.
Frequently Asked Questions
The core of glass fibers for IR consists of pure fused silica glass with low OH content and uniform refractive index across the entire diameter.
The multimode fibers are used in optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
The temperature range for the single acrylate coated fibers is -40 °C to 85 °C.
The fibers are used in a wavelength range from 400 nm to 2400 nm (VIS-IR).
The short-term bending radius is 100 x clad radius.
