Page 2 - Multi-Mode Fibers

MegaJOULE is InnovaQuartz\' answer to MoXY, enabling surgeons to use holmium and thulium and even diode lasers to their maximum potential, while guaranteeing only one fiber need be used per case.  MegaJOULE offers a sharp and precise output spot and exceedingly long lifetime in tissue contact, for ...

Specifications

Core Diameter: 660 um
Wavelength Range: 500 – 2200 nm
Cable Length: 3 m
Fiber Core Material: Silica
Maximum Power: 200 watts
In 2014, InnovaQuartz\' branded Pulsar™ HPC technology was integrated with a high performance optical fiber to produce the newest holmium fiber for lithotripsy and litholysis: ProFlex™ LLF. IQ offers the ProFlex™ LLF in five sizes: a true 200-micron core in LLF200, a 273-micron in LLF273, a 365-micron ...

Specifications

Core Diameter: 200 um
Wavelength Range: 500 – 2200 nm
Cable Length: 3 m
Fiber Core Material: Silica
Max Laser Power: 40 watts
Copper-coated step index multimode optical fibers have significant improvements include increased mechanical strength and greater fatigue resistance compared to non-hermetic and polymer-clad fibers (PCS). Their transmittance covers a spectral range of 250 to 1200 nm, and also remains stable in corrosive chemicals that normally react ...

Specifications

Core Diameter: Not Specified
Wavelength Range: 250 – 1200 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Coating Material: Copper
Copper-coated step index multimode optical fibers have significant improvements include increased mechanical strength and greater fatigue resistance compared to non-hermetic and polymer-clad fibers (PCS). Their transmittance covers a spectral range of 400 to 2400 nm, and also remains stable in corrosive chemicals that normally react ...

Specifications

Core Diameter: Not Specified
Wavelength Range: 400 – 2400 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Coating Material: Copper
Aluminum-coated step index multi-mode optical fibers have all the benefits of silica-silica fibers. Their transmittance covers a spectral range of 250 to 1200 nm, and also remains stable in corrosive chemicals that normally react to silica glass. The temperature range is from -196oC to +400oC. Hermetically metal-coated optical fibers ...

Specifications

Core Diameter: Not Specified
Wavelength Range: 250 – 1200 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Clad Material: doped silica
Hermetically sealed Aluminum-coated step index multimode optical fibers have all the benefits of silica-silica fibers. Additional significant improvements include increased mechanical strength and greater fatigue resistance compared to non-hermetic and polymer-clad fibers (PCS). Their transmittance covers a spectral range of 400 to ...

Specifications

Core Diameter: Not Specified
Wavelength Range: 400 – 2200 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Coating Material: Aluminium
Solarization Resistant UV fiber

Specifications

Core Diameter: 50 um
Wavelength Range: 190 – 1250 nm
Fiber Core Material: Silica
Working Temp.(High Temp.Acrylate Coating): -40 ~ +150
Working Temp.(Polymer Coating): -60 ~ +350
Polymer Clad Fiber (PCF)

Specifications

Core Diameter: 125 um
Wavelength Range: 190 – 2400 nm
Fiber Core Material: Silica
Working Temp.( Silicone Clad / Tefzel Buffer: -65 ~ +200
Working Temp.( Silicone Clad / Nylon Buffer: -60 ~ +105

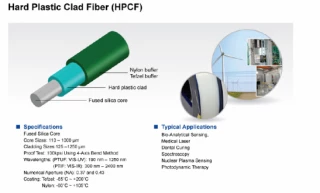

Hard Plastic Clad / Tefzel Buffer Hard Plastic Clad / Nylon Buffer

Specifications

Core Diameter: 110 um
Wavelength Range: 300 – 2400 nm
Fiber Core Material: Silica
Working Temp.(Hard Plastic Clad / Tefzel Buffer: -65 ~ +200 ℃
Working Temp.(Hard Plastic Clad / Nylon Buffer: -60~ +105 ℃

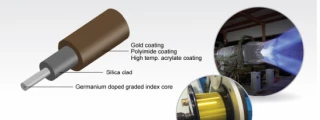

High Temp. Fiber  Graded Index Multimode High Temp. Fiber    Pure Silica Graded Index Core High Temp.Fiber    Graded Index Core High Temp. Fiber   Silica Core(step index)High Temp. Fiber   Single-Mode High Temp. Fiber

Specifications

Core Diameter: 50 um
Wavelength Range: 190 – 2400 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Working Temp.(50/125/155P20 ): -60 ~ +350 ℃

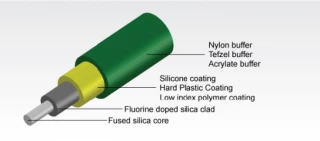

Power Delivery  Fiber Silica Core Single Clad Fiber Silica Core Double Clad Fiber Step Index Silica Core Double Clad Fiber Graded Index Silica Core Double Clad Fiber Silica Core Triple Clad Fiber

Specifications

Core Diameter: 40 um
Wavelength Range: 190 – 2400 nm
Fiber Core Material: Silica
Silica Core Single Clad Fiber Working Temp.(Acrylate Coating): -40 ~ +85 ℃
Step Index FSilica Core Double Clad Fiber(Working Temp. Hard Plastic Coating / Tefzel Buffer): -65 ~ +200 ℃

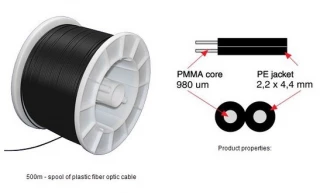

Item: pof duplex cableP/N: DC2-1000(pure black)         DCW2-1000(white bar colored for easy identification)This 1 mm PMMA fiber duplex zipcord, 70deg.C, 2.2 mm x 4.4 mm - 1500 feet spool is made of two paralleled 1.0mm cores,2*2.2mm POF Cable for the following applications: 1. Signal transmission of fiber optic sensors; 2. High ...

Specifications

Core Diameter: 1000 um
Wavelength Range: 0.525 – 0.65 nm
Cable Length: 3 m
Fiber Core Material: Not Specified
Attenuation Loss: 0.17dB/M @525nm

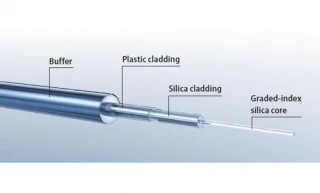

The FiberTech® Graded-index Polymer Clad (GIPC) fiber series stands out as a sophisticated solution in the realm of multimode fibers, engineered for short and medium distance communication under challenging environmental conditions. These fibers are crafted with a graded-index silica core, enveloped in a robust plastic cladding, ...

Specifications

Core Diameter: 62.5 um
Wavelength Range: 850 – 1300 nm
Fiber Core Material: Silica
Cable Length: Custom
The FiberTech® Graded-index Polymer Clad Fiber series, known as GIPC, represents a significant advancement in multimode fiber technology. Designed specifically for challenging environmental conditions, these fibers are ideal for short to medium distance communications. The series includes the GIPC50 and GIPC62 models, which are ...

Specifications

Core Diameter: 50 um
Wavelength Range: 850 – 1300 nm
Fiber Core Material: Silica
Cable Length: Custom

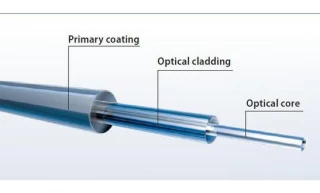

Explore the advanced capabilities of our radiation-hard multimode fibers, specifically designed to meet the stringent demands of aerospace and other industries where exposure to radiation is a critical concern. These fibers are engineered to maintain optimal performance in environments that are subject to high levels of radiation, ...

Specifications

Core Diameter: 62.5 um
Wavelength Range: 850 – 1300 nm
Cable Length: 1100 m
Fiber Core Material: Not Specified
Coating Diameter: 500 um
Discover the robust and resilient solution for demanding environments with our Radiation-Hard Multimode Fibers. Specially engineered to thrive in radiation-threatened areas, these fibers are the ideal choice for industries such as aerospace, where environmental conditions can be particularly harsh. Our fibers are not only designed to ...

Specifications

Core Diameter: 62.5 um
Wavelength Range: 850 – 1300 nm
Cable Length: 1100 m
Fiber Core Material: Not Specified
Coating Diameter: 250 um
Leoni Radiation-Hard Multimode Fibers are meticulously engineered to excel in the most challenging environments, particularly those exposed to radiation. These specialized fibers are a cornerstone in industries such as aerospace, where they are required to perform reliably under conditions that would compromise standard fiber optics. ...

Specifications

Core Diameter: 50 um
Wavelength Range: 850 – 1300 nm
Cable Length: 1100 m
Fiber Core Material: Not Specified
Coating Diameter: 500 um
Experience unparalleled performance and reliability with our radiation-hard multimode fibers, designed specifically for demanding environments such as aerospace industries. These fibers are meticulously engineered to withstand the challenges of radiation-threatened areas, ensuring optimal functionality under the most strenuous ...

Specifications

Core Diameter: 50 um
Wavelength Range: 850 – 1300 nm
Cable Length: 1100 m
Fiber Core Material: Not Specified
Cladding Diameter: 125 um

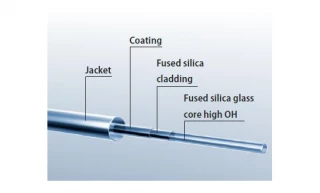

Introducing our state-of-the-art solarization-stable fibers, expertly designed to deliver exceptional performance in the critical UV-VIS range. These fibers are meticulously crafted with a high OH content, ensuring remarkable transmission capabilities between 190 nm and 250 nm. This makes them an ideal choice for applications ...

Specifications

Core Diameter: 600 um
Wavelength Range: 190 – 250 nm
Fiber Core Material: Silica
Fiber Length: Custom
Fiber Type: Solar Stable
Progressive absorption of the fibers to the point of complete failure occurs when using UV-VIS fibers < 240 nm. Our solarisation- stable fibers can be used for applications in this critical range.These newly developed fibers with high OH content are characterised by very good transmission in the 190–250 nm range. A deuterium ...

Specifications

Core Diameter: 400 um
Wavelength Range: 190 – 250 nm
Cable Length: Not Specified
Fiber Core Material: Silica
Fiber Length: Custom
