Description
Introducing Ultrasol® Solarization-Stable Fibers, the latest innovation in optical fiber technology, designed to meet the demands of critical UV-VIS applications. These fibers are crafted with a high OH content fused silica glass core, ensuring exceptional transmission capabilities in the challenging 190–250 nm range. This makes them an ideal choice for environments where performance and reliability are paramount.
The unique construction of these fibers features a step-index multimode design, combining a fused silica core and cladding with a robust coating. This design not only enhances durability but also optimizes the fibers for use with deuterium light sources, allowing for precise measurements and consistent results. The solarization-stable properties of these fibers make them particularly suitable for applications below 240 nm, where traditional fibers may experience progressive absorption leading to failure.
Available in various core diameters ranging from 100 μm to 600 μm, these fibers can be customized with coatings such as single acrylate or polyimide, providing flexibility to suit different operational needs. Additionally, options for Nylon® or Tefzel® coatings are available, further expanding the adaptability of these fibers for diverse applications. For those requiring bundled solutions, Ultrasol® fibers are also offered as fiber bundles with single-fiber cores starting from 30 μm.
With a focus on innovation and quality, our solarization-stable fibers represent a significant advancement in optical fiber technology, providing reliable performance in even the most demanding UV-VIS environments. Explore the possibilities with Ultrasol® fibers and experience the difference in transmission efficiency and stability.
FiberTech Ultrasol Fibers - 84808004F
Specifications |
|
|---|---|
| Core Diameter: | 200 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
| Fiber Type: | Solar Stable |
Features
- High Transmission Range: These fibers are designed for excellent transmission in the 190-250 nm range, making them ideal for UV-VIS applications.
- Solarization-Stable: Ultrasol® fibers resist solarization, ensuring consistent performance even under prolonged UV exposure.

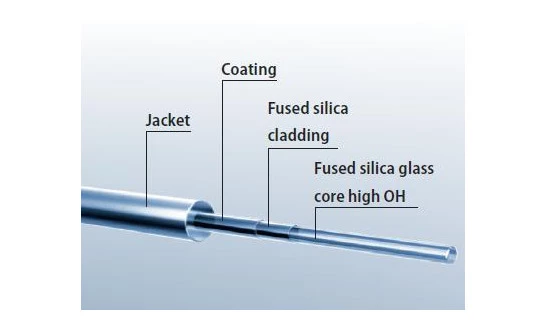

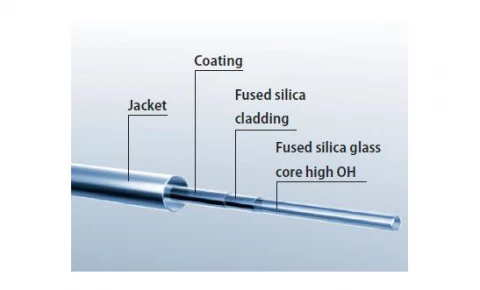

- Core and Cladding Design: Features a fused silica glass core with high OH content and a fused silica cladding, optimized for UV-VIS applications.
- Versatile Coating Options: Available with single acrylate or polyimide coatings, each with precise diameter specifications for various applications.
- Custom Fiber Bundles: Solarization-stable fibers are also available as fiber bundles, with single-fiber cores starting from 30 μm.
- Durability Under UV Exposure: These fibers are engineered to resist progressive absorption and failure under UV exposure, especially below 240 nm.
- Optional Coatings: Nylon® or Tefzel® coatings are optionally available for additional customization.
- Precise Specifications: Each fiber comes with detailed specifications, including core and cladding diameters, to meet diverse application needs.
- Order and Identification: Each fiber type is easily identifiable with unique order numbers and fiber code numbers for streamlined procurement.
Applications
- UV and VIS Spectroscopy: Accurate, stable light transmission for spectral analysis
- Laser-Based Analytical Instruments: Reliable fiber delivery under high-power UV laser exposure
- UV Light Sources: Suitable for deuterium lamps and other demanding UV illumination systems
- Medical and Biological Research: Supports UV-based diagnostics and experiments requiring stable light delivery
- Environmental Monitoring: Durable fibers for continuous UV measurements in challenging environments
- Scientific Research and Development: Precise UV guidance for laboratory and industrial applications
- Multi-Point Illumination: Fiber bundles allow uniform UV light distribution in complex systems
Frequently Asked Questions

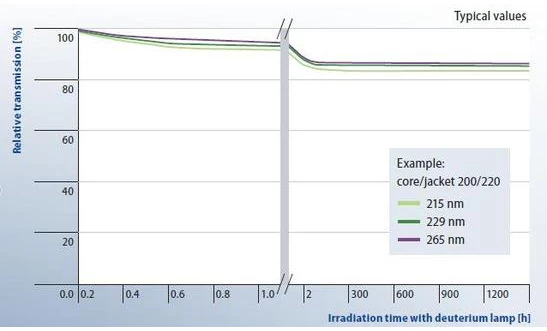

The relative transmission of these fibers varies depending on the irradiation time with a deuterium lamp, but typical values are provided in the datasheet.
These fibers are solarisation-stable and do not experience progressive absorption to the point of complete failure like UV-VIS fibers < 240 nm.
The coating material used for these fibers is polyimide, with Nylon or Tefzel optionally available.
These fibers are suitable for applications in the 190-250 nm range.
The fiber bundles have a single-fiber core diameter of 30 μm.
