Name: Metal coated step index fiber - Aluminum
Brand: Waveguide Technologies, Inc.

Description

Aluminum Coated Fibers from Waveguide Technologies, Inc. are designed for a wide temperature range (-269°C to +400°C).

Fibers are available with high OH content for UV/VIS and low OH content for VIS/IR wavelength operation. An additional product line features deep UV operation with excellent solarisation stability up to 80%.

Custom fiber sizes are available upon request.

Specifications

Core Diameter:	50 um
Wavelength Range:	215 – 2100 nm
Cable Length:	1 m
Fiber Core Material:	Silica
Coating Material:	Aluminum
Numerical Aperture:	0.22 +/- 0.02
OH Content:	low or high

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

The fibers feature a superior strength (> 100kpsi), which allows for long life at extended stress levels in applications that require tight bends.

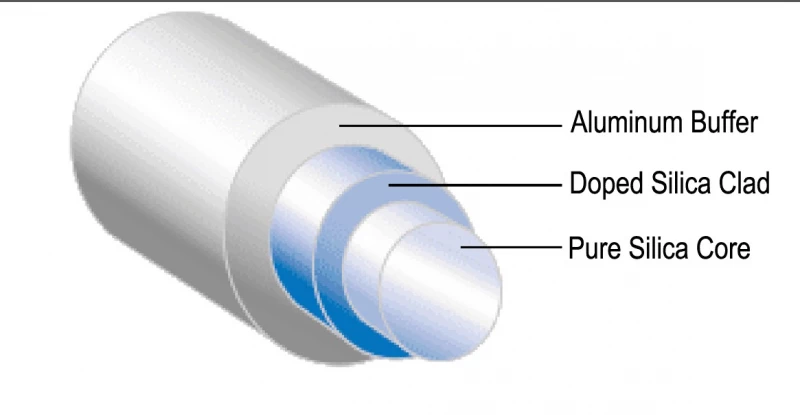

The fiber has a strong chemical bond between the silica cladding and the aluminum without any additional layer, this enables direct termination without pistoning. This bond also makes Aluminum coating the ideal choice to preserve deep UV performance in our solarisation resistant product family.

Applications

the fiber is suitable for use in sensing and deployment in harsh environments

High temperature and cryogenic temperature sensing
Semi Conductor Manufacturing
Corrosive and caustic environments
Ultra high vacuum devices
Radiation resistant sensors
Rocket, turbine and jet engine monitoring

Request Quote

To: Waveguide Technologies, Inc.
Re: Metal coated step index fiber - Aluminum

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: United States
Sold by:: Waveguide Technologies, Inc.
On FindLight:: since 2023

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the temperature range that the Aluminum Coated Fibers can withstand?

The Aluminum Coated Fibers can withstand temperatures ranging from -269°C to +400°C.

What are the available OH content options for the fibers?

The fibers are available with high OH content for UV/VIS wavelength operation and low OH content for VIS/IR wavelength operation.

Can the fibers be customized to different sizes?

Yes, custom fiber sizes are available upon request.

What are some applications where the Aluminum Coated Fibers can be used?

The fibers are suitable for use in sensing and deployment in harsh environments, high temperature and cryogenic temperature sensing, semiconductor manufacturing, corrosive and caustic environments, ultra high vacuum devices, radiation resistant sensors, and rocket, turbine, and jet engine monitoring.

What is the bond between the silica cladding and the aluminum coating?

The bond between the silica cladding and the aluminum coating is a strong chemical bond without any additional layer, enabling direct termination without pistoning.
