Description

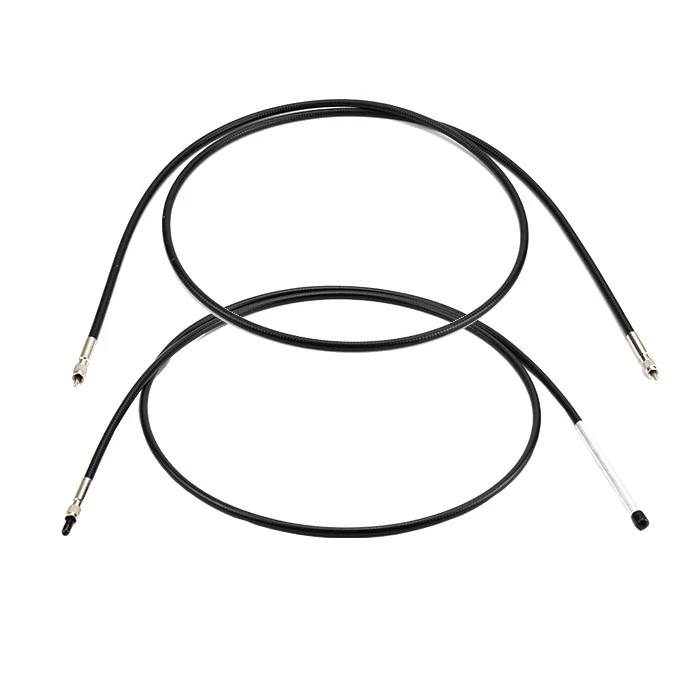

The XOP and YOP series provide a comprehensive suite of high-performance fiber optic components for photometry, spectroscopy, Raman analysis, and liquid sampling applications. The XOP-1102/1105 quartz fibers feature a concentric cylindrical structure with a quartz core, fluorine-doped cladding, and resin coating, with optional sheath protection. They are available in various core diameters, lengths, and configurations including 1-to-1, Y-type, and M-to-M, covering spectral ranges from 200–2200 nm.

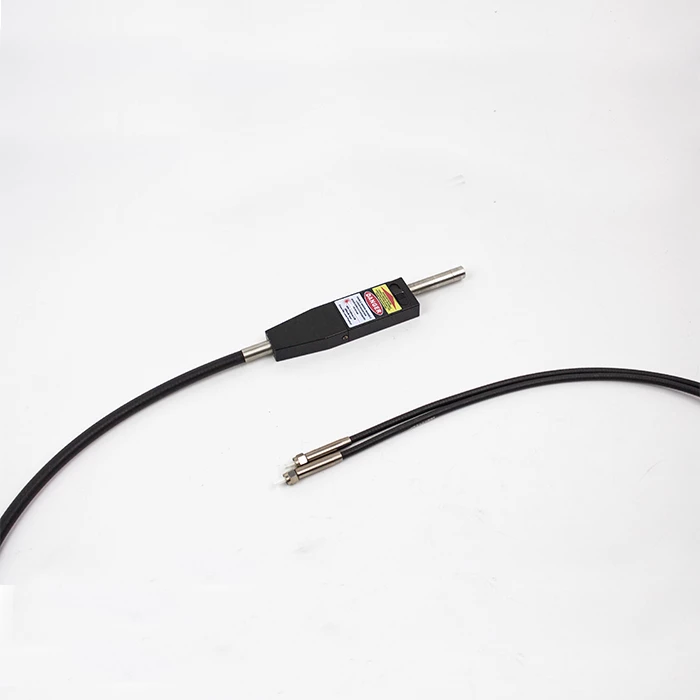

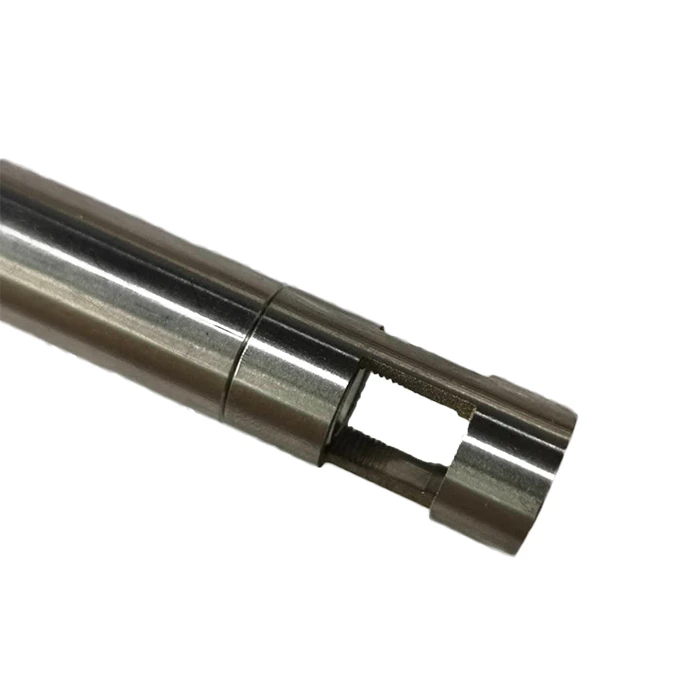

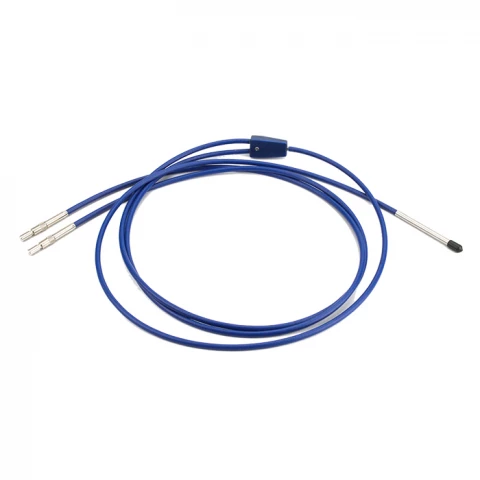

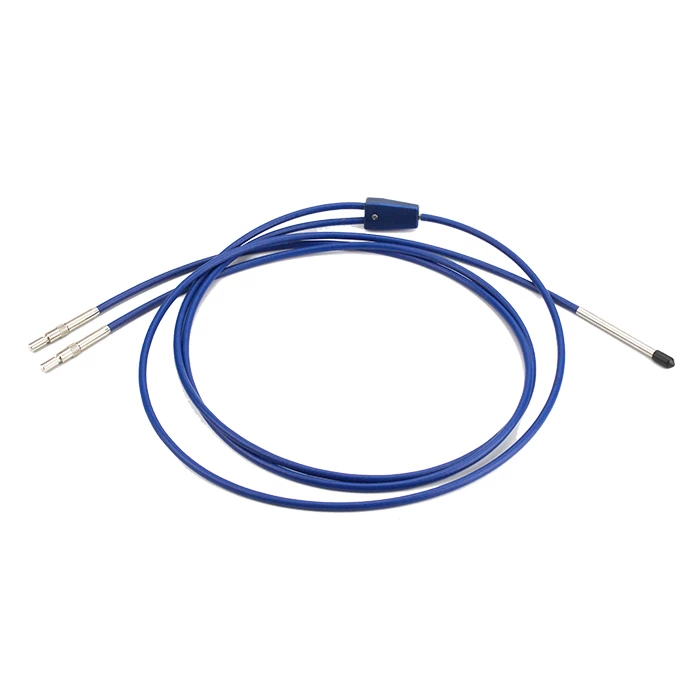

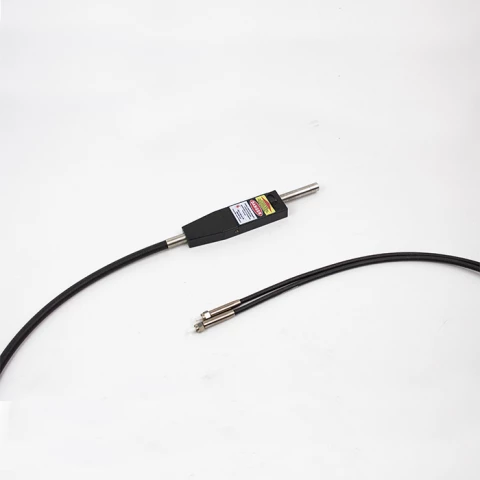

The XOP-1131 Raman probes support 532, 785, 830, and 1064 nm laser excitation with OD6 optical filters to minimize Rayleigh scattering, enabling precise solid, liquid, or powder measurements. XOP-1122 immersion fiber probes offer Y-type designs with customizable core parameters, functioning as small cuvettes for real-time liquid analysis, ideal for water quality and biochemical testing.
The YOP-1026-01 cosine corrector collects light over a 180° solid angle, using PTFE material, compatible with SMA905 connectors, and is optimized for solar radiation, LED, laser, and ambient light measurements. Combined, these solutions provide versatile, precise, and reliable tools for research, industrial, and analytical photonics applications.
Fiber and Probe
Specifications |
|
|---|---|
| Core Diameter: | 200 um |
| Wavelength Range: | 200 – 2200 nm |
| Cable Length: | 0.05 m |
| Fiber Core Material: | Silica |
| Model: | XOP-1102/1103/1104/1105/1131/1122 |
| Structure: | 1-to-1, Y type |
| Spectral Range: | 200-1100, 400-2200 nm |
| Core Layer: | Quartz |
| Cladding: | Fluorine-doped quartz |
| Coating Layer: | Acrylic resin |
| Sheath Layer: | Tefzel® (Teflon resin), etc. |
| Core Diameter: | 200 / 400 / 600 / 800 / 1000 µm |
| Length: | 5 / 50 / 100 / 150 / 200 cm, etc. |
| NA: | 0.22 ± 0.02 |
| Efficiency: | Single core 85% (632.8 nm), multi core 65% (632.8 nm) |
| Beam Sharp: | Round / Square / Linear / Custom shapes |
| Connector: | SMA905 / SMA906 / FC / ST |
| Bend Radius: | 150D (short time), 300D (long time), D is the core diameter |
| Temperature: | -40°C~ +100°C |
| Central Wavelength: | 532, 785, 830, 1064 nm |
| Spectral Range: | 176 - 4000 cm-1 |
| Working Method: | Fiber In / Out |
| Dimension (mm): | 107 x 30 x 13 |
| Cut-off Depth: | OD6 |
| Working Distance(mm): | 7.5 |
| Splitting End: | Core diameter 105μm, NA0.22, FC/PC or SMA905 |
| Merging End: | Core diameter 200μm, NA0.22, SMA905 |
| Fiber Length: | (100+30)±0.2 cm |
| Temperature: | 10-30 °C |
| Humidity: | 0-75% RH |
| Number Of Cores: | 2 |
| Material: | UV resistant quartz fiber |
| Merging End: | 0.75, 1 m |
| Splitting End: | 0.75, 1 m |
| Operating Temperature: | -30~150° |
Features
- Wide Spectral Range: 200–2200 nm depending on fiber and probe type
- Multiple Fiber Configurations: 1-to-1, Y-type, M-to-M, single or multi-core
- High-Quality Quartz Core: Fluorine-doped cladding and resin coating enhance durability
- Raman Optimization: OD6 filters reduce Rayleigh scattering for XOP-1131
- Real-Time Liquid Sampling: XOP-1122 probes function as mini cuvettes for direct measurement
- Cosine Light Collection: YOP-1026-01 collects light over 180° solid angle for accurate spectral measurements
- Customizable Parameters: Core diameter, core number, length, structure, and connectors
- Temperature and Environmental Stability: Operates reliably under wide temperature and humidity ranges
Applications
- Laser and Photometry Measurements: High-efficiency light transmission with XOP fibers
- Raman Spectroscopy: Precise solid, liquid, and powder analysis with XOP-1131
- Water Quality & Biochemical Testing: Real-time absorbance monitoring with XOP-1122
- Solar Radiation and Ambient Light Measurement: Accurate 180° light collection with YOP-1026-01
- Research & Development: Versatile use in laboratories for spectroscopy, photonics, and environmental monitoring
- Industrial Optical Systems: Reliable fiber solutions for high-power light transmission and measurement
Frequently Asked Questions
The XOP-1102-1105 series quartz fibers have a concentric cylindrical structure with a quartz core and a Fluorine-doped quartz cladding, coated with resin materials to enhance fiber strength.
The XOP-1102-1105 fibers can transmit light of wide wavelength ranges, specifically 200-1100nm and 400-2200nm.
The XOP-1102-1105 series offers 1-to-1 type, Y-type, 1-to-M type, and M-to-M type fibers.
Yes, YISIXT provides customization options for the XOP-1102-1105 fibers, including core diameter, core number, length, material, structure, and connector.
The XOP-1122 series immersion fiber probes are often used for online water quality testing and online biochemical testing.
