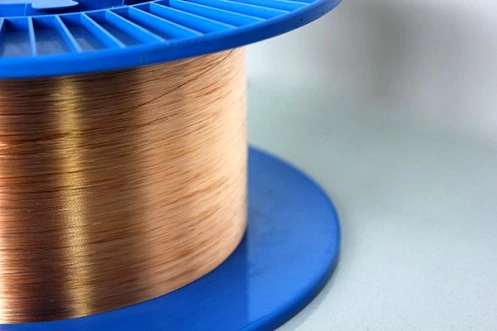

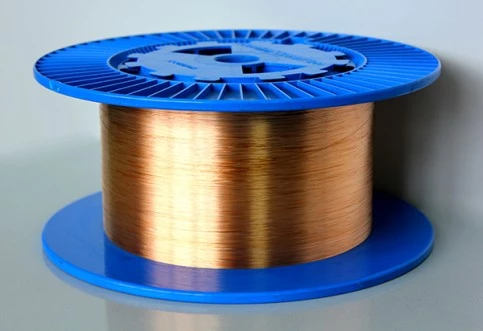

HIGH OH MULTI-MODE STEP INDEX COPPER-COATED SILICA FIBERS

Description

Copper-coated step index multimode optical fibers have significant improvements include increased mechanical strength and greater fatigue resistance compared to non-hermetic and polymer-clad fibers (PCS). Their transmittance covers a spectral range of 250 to 1200 nm, and also remains stable in corrosive chemicals that normally react to silica glass. The working temperature range is from -196oC to +600oC.

Specifications

Core Diameter:	Not Specified

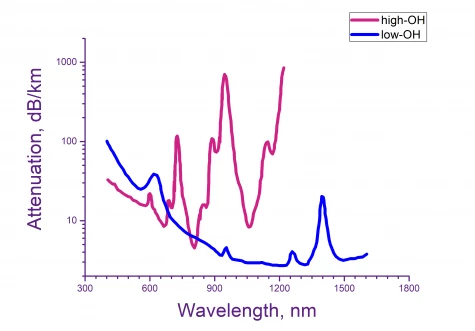

Wavelength Range:	250 – 1200 nm
Cable Length:	Not Specified
Fiber Core Material:	Silica
Coating Material:	Copper
Standard Core/Clad Diameters, µm (high OH):	110/125, 200/220, 300/330, 400/440, 600/660, 800/880
Clad Material:	doped silica

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Greatly enhanced resistance to high power laser radiation.
Higher core-to-clad ratio and enlarged NA optimized for coupling to high-energy lasers.
Better fiber cooling due to the heat-conducting metal coating.
Excellent mechanical strength compared to polymer coated fibers.
Solderable coating allows feeding the fibers into high vacuum systems and provides no outgassing.

Applications

Hermetically metal-coated optical fibers are the optimum candidate when used in high vacuum and harsh environmental conditions

Request Quote

To: FORC-Photonics
Re: HIGH OH MULTI-MODE STEP INDEX COPPER-COATED SILICA FIBERS

Name

Work Email

Organization

Country

Your message to supplier

Thank you, your message was sent successfully.

Ships from:: Russia
Sold by:: FORC-Photonics
On FindLight:: since 2020

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the working temperature range of the copper-coated step index multimode optical fibers?

The working temperature range is from -196oC to +600oC.

What are the features of the copper-coated step index multimode optical fibers?

The features include greatly enhanced resistance to high power laser radiation, higher core-to-clad ratio optimized for coupling to high-energy lasers, better fiber cooling due to the heat-conducting metal coating, excellent mechanical strength compared to polymer coated fibers, and solderable coating for feeding the fibers into high vacuum systems.

What applications are the copper-coated step index multimode optical fibers suitable for?

These fibers are suitable for use in high vacuum and harsh environmental conditions.

What is the transmittance range of the copper-coated step index multimode optical fibers?

The transmittance covers a spectral range of 250 to 1200 nm.

What is the coating material of the copper-coated step index multimode optical fibers?

The coating material is copper.
