Description
Gold Coated Fibers from Waveguide Technologies, Inc. are designed to achieve the widest temperature range (-269°C to +700°C) of any optical fiber currently on the market.
Fibers are available for operation in UV/VIS or VIS/IR wavelength ranges. Custom fiber sizes are available upon request.

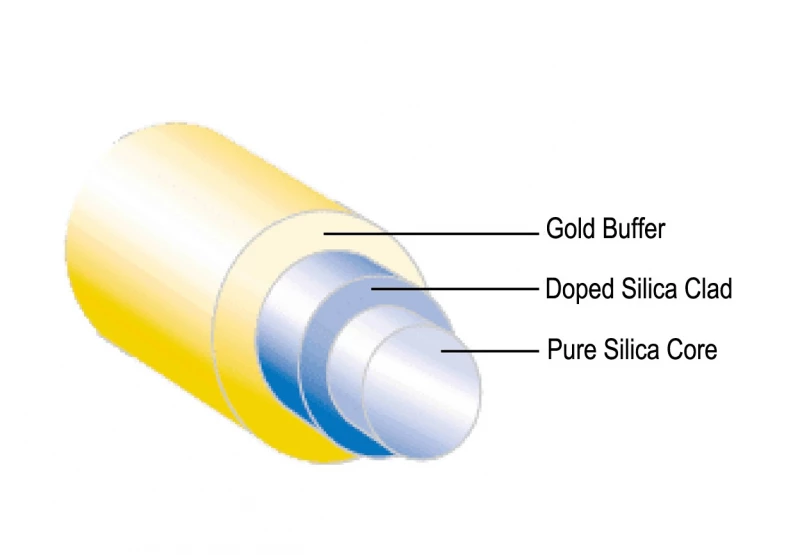

Metal coated step index fiber - Gold
Waveguide Technologies, Inc.
Specifications
| Core Diameter: | 50 um |
|---|---|
| Wavelength Range: | 215 – 2100 nm |
| Cable Length: | 1 m |
| Fiber Core Material: | Silica |
| Coating Material:: | Gold |
| OH Content Of Core Material: | high or low |
| Numercial Aperture: | 0.22 +/- 0.02 |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
The fibers feature an excellent corrosion resistance and are designed for soldering and brazing ability.
Applications
Typical applications are in sensing and industrial process monitoring:
- High temperature and cryogenic temperature sensing
- Down-hole sensing for oil and gas industry
- Corrosive and caustic environments
- Ultra high vacuum devices
- Radiation resistant sensors
- Rocket, turbine and jet engine monitoring
Frequently Asked Questions
What is the temperature range that the Gold Coated Fibers can withstand?
The Gold Coated Fibers can withstand temperatures ranging from -269°C to +700°C.
What are the available wavelength ranges for operation?
The fibers are available for operation in either UV/VIS or VIS/IR wavelength ranges.
Can I request custom fiber sizes?
Yes, custom fiber sizes are available upon request.
What are the typical applications for these fibers?
Typical applications include high temperature and cryogenic temperature sensing, down-hole sensing for the oil and gas industry, corrosive and caustic environments, ultra high vacuum devices, radiation resistant sensors, and rocket, turbine, and jet engine monitoring.
Are these fibers tested to any industry standards?
Yes, these fibers are quality tested in accordance with the Telecommunications Industry Association (TIA) and Fiber Optic Test Procedures (FOTP). They can also be tested to MIL-SPEC standards if necessary.
Got more questions? Use the inquiry form to ask the supplier directly.
