Description
art photonics developed a volume production technology of a unique product – Core / Clad Polycrystalline Infra-Red (PIR-) fibers transparent over a broad spectral range 3 – 17 μm.

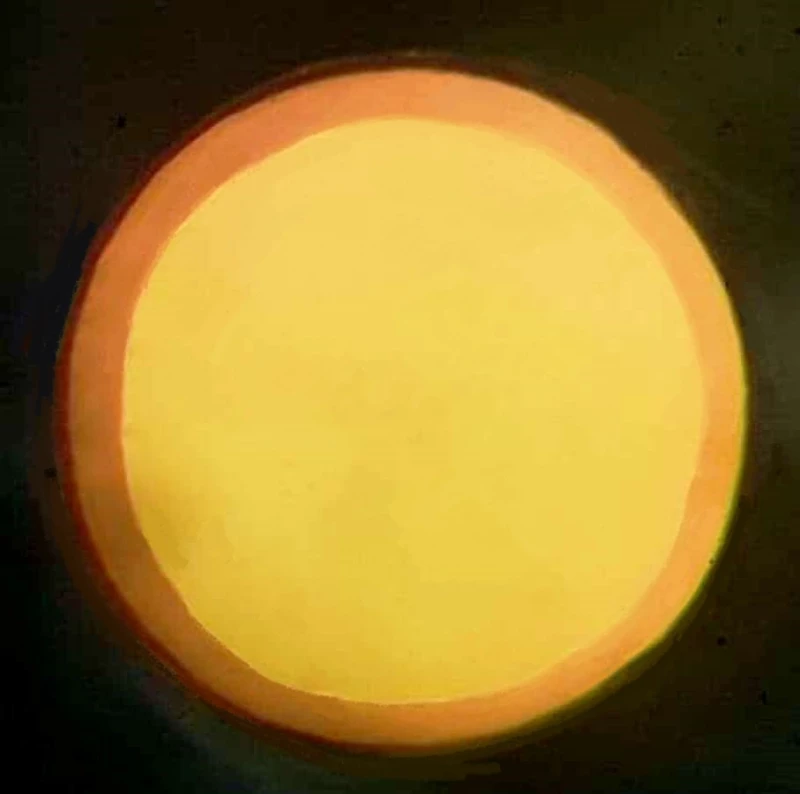

Highest performance PIR core/clad fiber are extruded with core diameters span from 240µm to 860µm. Continuously improved extrusion process provides a superior optical quality and mechanical strength of PIR- fibers.
Low optical losses without absorption peaks over the mentioned spectral range ensure a successful use of PIR- fiber for a broad range of applications.
Polycrystalline Mid-InfraRed Fiber
Specifications
Core Diameter: | 240 um |
---|---|
Wavelength Range: | 3000 – 17000 nm |
Cable Length: | 15 m |
Fiber Core Material: | Not Specified |
Wavelength Range: | 3 - 17 μm |
Core Diameters: | 240, 410, 600, 860 |
Features

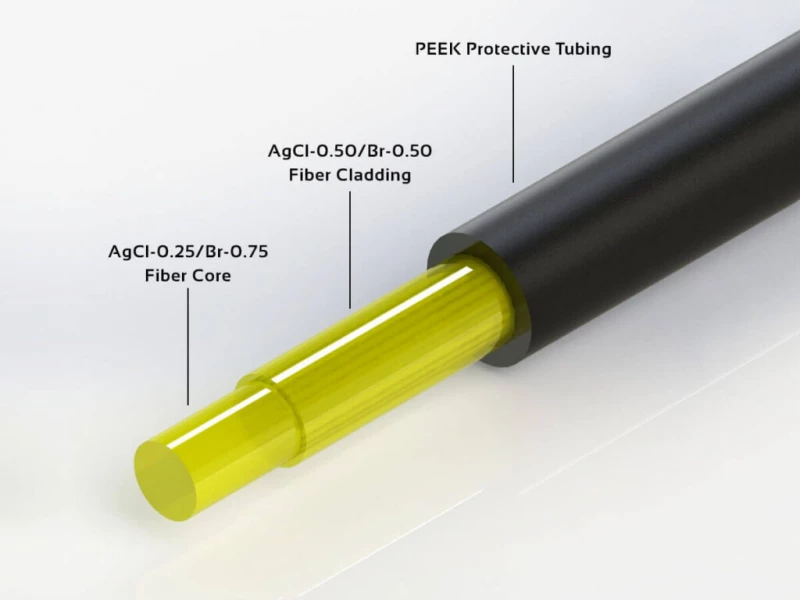

- Core/Cladding Composition: AgCl:AgBr
- Spectral Range: 3 - 17 μm
- Core Refractive Index: 2.15
- Fresnel Reflection Losses: 25%

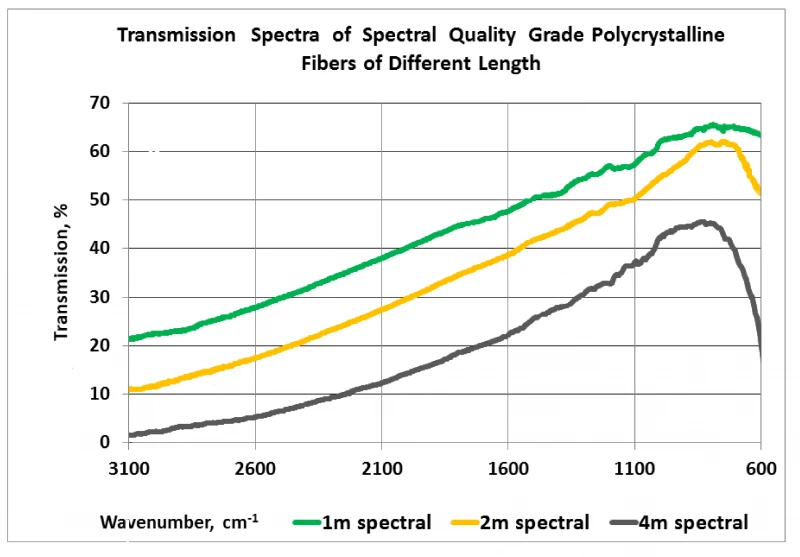

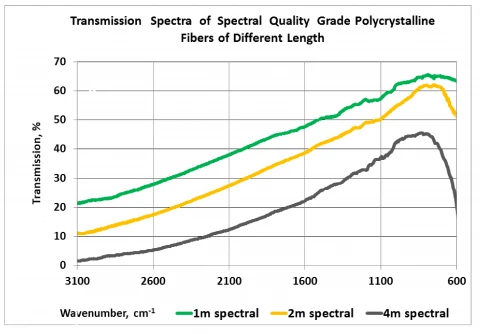

- Attenuation at 10.6μm: 0.2 - 0.4 dB/m
- Effective Numerical Aperture (NA): 0.30 +/- 0.03
- Melting Point: 410 °C
- Operating Temperature: –273 to +140°C
- Core/Clad Diameter (standard): see the datasheet
- Laser Damage Threshold for CW CO2 laser: >12 kW/cm²
- Tensile Strength: >70 MPa
- Minimum Bending Radius (fixed): 5 x [Fiber Diameter]
- Minimum Elastic Bending Radius: 150 x [Fiber Diameter]
Applications
- Mid IR spectroscopy
- Flexible IR pyrometry
- Flexible IR-Imaging systems
- Power delivery for Quantum Cascade Lasers
- Power delivery for CO and CO2 Lasers
Frequently Asked Questions
What is the spectral range of the Polycrystalline Mid-InfraRed Fiber?
The spectral range of the Polycrystalline Mid-InfraRed Fiber is 3 - 17 μm.
What is the core/cladding composition of the fiber?
The core/cladding composition of the fiber is AgCl:AgBr.
What is the minimum bending radius for the fiber?
The minimum bending radius for the fiber is 5 times the fiber diameter for fixed bending and 150 times the fiber diameter for elastic bending.
What is the operating temperature range for the fiber?
The operating temperature range for the fiber is -273 to +140°C.
What are the applications of the Polycrystalline Mid-InfraRed Fiber?
The applications of the Polycrystalline Mid-InfraRed Fiber include mid IR spectroscopy, flexible IR pyrometry, flexible IR-imaging systems, power delivery for Quantum Cascade Lasers, and power delivery for CO and CO2 lasers.
