Description
Experience the cutting-edge of laser surgery with the award-winning optical design of the MegaJOULE™. Crafted with precision and innovation, this product is engineered to elevate surgical performance to new heights. The MegaJOULE™ is a testament to advanced technology, offering unparalleled reliability and efficiency in the operating room. Its sophisticated design ensures optimal performance, making it a preferred choice for professionals seeking excellence in surgical outcomes.
The MegaJOULE™ is meticulously designed to meet the highest standards of precision and durability. Its construction features low [OH-] fused silica fiber core, ensuring superior light transmission and minimal signal loss. The fiber is encased in a robust blue ETFE jacket, providing enhanced protection and flexibility during procedures. This thoughtful design not only guarantees exceptional performance but also ensures the longevity of the product, making it a valuable addition to any surgical toolkit.
Designed with versatility in mind, the MegaJOULE™ is compatible with a wide range of laser systems, accommodating wavelengths from 500nm to 2200nm. Its SMA 905 laser connector with a blue anodized extension sleeve ensures seamless integration with existing equipment, allowing for a smooth and efficient surgical process. The MegaJOULE™ is engineered to handle maximum pulse energy of 3.5 joules and continuous wave power of up to 200 watts, providing the flexibility needed for various surgical applications.
With a typical surgical lifetime exceeding 600,000 joules, the MegaJOULE™ is built to withstand the demands of rigorous surgical environments. Its strain relief and bend limiter, composed of layered polyolefin heat shrink and a Santoprene rubber boot, offer additional protection and durability. This ensures that the MegaJOULE™ maintains its integrity and performance throughout its lifespan, providing consistent and reliable results for healthcare professionals.
MegaJOULE 200W SideFire Fiber for VIS-IR
Specifications |
|
|---|---|
| Core Diameter: | 660 um |
| Wavelength Range: | 500 – 2200 nm |
| Cable Length: | 3 m |
| Fiber Core Material: | Silica |
| Maximum Power: | 200 watts |
Features
- Award-Winning Optical Design: Specifically engineered for laser surgery to ensure precision and reliability.
- High-Quality Construction: Features low [OH-] fused silica fiber core with a diameter of 0.660 millimeters for optimal performance.
- Advanced Cladding: Fluorine-doped fused silica cladding with a diameter of 726 millimeters and secondary cladding of fluoroacrylate at 0.760 millimeters.
- Durable Jacketing: Blue ETFE jacketing with a diameter of 1.2 millimeters for enhanced protection and flexibility.
- Variable Working Length: Adjustable up to 44 centimeters with a diameter of 1.8 millimeters for versatile surgical applications.
- Precision Control: Equipped with a movable polymer pin vise for accurate handling and control.
- Secure Laser Connection: SMA 905 connector with a blue anodized extension sleeve for stable laser attachment.
- Robust Strain Relief: Layered polyolefin heat shrink and Santoprene rubber boot for enhanced durability and bend protection.

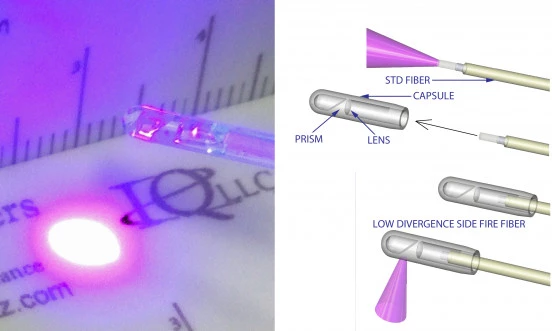

- Efficient Output Capsule: Fused quartz capsule measuring 2.15 millimeters in diameter and 14 millimeters in length for optimal energy delivery.
- Optimal Output Angle: Centered on 80 degrees off the fiber longitudinal axis for precise targeting.
- Controlled Output Divergence: ½ angle of 7.5 degrees nominal, with a maximum of 12 degrees for consistent performance.
- Compact Output Spot: Output spot diameter of approximately 1.0 millimeters for focused energy application.
- Channel Compatibility: Compatible with 7.5 French channels for versatile surgical use.
- High Energy Capacity: Maximum pulse energy of 3.5 joules and continuous wave power of 200 watts for powerful performance.
- Broad Laser Compatibility: Works with any laser featuring a compatible fiber port ranging from 500nm to 2200nm.
- Extended Surgical Lifetime: Designed to exceed 600,000 joules for long-lasting use.
Applications
- Laser Surgery: Designed for precision and efficiency in laser surgical procedures.
- Medical Applications: Suitable for various medical applications requiring high-energy laser delivery.
- Ophthalmology: Ideal for eye surgeries that require precise laser targeting and energy delivery.
- Dermatology: Effective for skin treatments and procedures involving laser technology.
- Urology: Used in procedures such as lithotripsy and other laser-based urological treatments.
- ENT (Ear, Nose, Throat): Applicable in ENT surgeries where laser precision is crucial.
- General Surgery: Versatile for various general surgical procedures that utilize laser technology.
- Research and Development: Suitable for R&D applications involving laser systems and optical fibers.
Frequently Asked Questions
The MegaJOULE 200W SideFire Fiber is used for laser surgery, specifically soft tissue vaporization.
The MegaJOULE fiber comes in an individual fiberboard carton with a label and a sterile pouch. It has a total length of 3 meters and a working length of up to 44 centimeters. The fiber has a diameter of 0.660 millimeters for the core, 726 millimeters for the cladding, and 0.760 millimeters for the secondary cladding. The jacketing has a diameter of 1.2 millimeters and is made of Blue ETFE.
The output spot diameter of the MegaJOULE fiber is approximately 1.0 millimeters.
The MegaJOULE fiber is compatible with any laser that has a compatible fiber port and operates at a wavelength range of 500nm to 2200nm.
The MegaJOULE fiber has a typical surgical lifetime of over 600,000 joules.
