Description
The FiberTech® Graded-index Polymer Clad Fiber series, known as GIPC, represents a significant advancement in multimode fiber technology. Designed specifically for challenging environmental conditions, these fibers are ideal for short to medium distance communications. The series includes the GIPC50 and GIPC62 models, which are engineered to meet robust design requirements while delivering the bandwidth performance of standard telecommunications fibers, aligning with OM2 and OM1 standards respectively.
One of the standout features of the GIPC fiber series is its 200 µm form factor. This design allows the fiber to endure a mechanical load three times greater than that of a traditional 125 µm diameter standard fiber, supporting up to 30 N compared to the usual 10 N. This robustness makes the GIPC fibers a reliable choice for demanding applications, where durability and performance are critical.
The fibers are equipped with a special coating that optimizes thermal performance, ensuring reliability across various temperature ranges. The 500 µm ETFE buffer material is designed for easy removal, facilitating quick and cost-efficient handling. This feature, combined with the fiber's excellent geometry, simplifies the crimp-and-cleave assembly process, making it an attractive option for those seeking efficiency and ease of use in fiber optic installations.

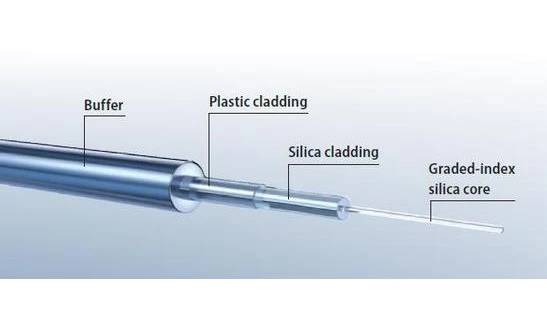

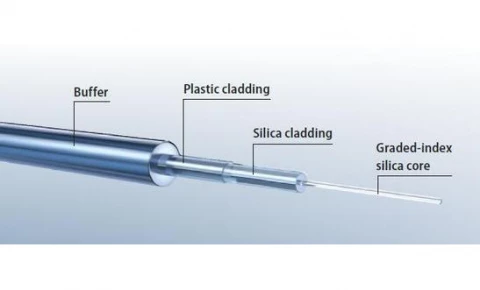

FiberTech Graded-index Polymer Clad Fiber - GIPC50
Specifications
| Core Diameter: | 50 um |
|---|---|
| Wavelength Range: | 850 – 1300 nm |
| Fiber Core Material: | Silica |
| Cable Length: | Custom |
Download Data Sheet
Features
- Graded-index Polymer Clad Fiber Series: The GIPC series features multimode fibers designed for robust performance in short to medium distance communications.
- Core Material: Ge-doped fused silica ensures high-quality signal transmission.
- Core Diameter Options: Available in 50 ±2.5 µm and 62.5 ±2.5 µm diameters to suit various application needs.
- High Precision Core-Cladding Alignment: Core-cladding concentricity error is ≤ 1.5 µm, ensuring optimal performance.
- Durable Cladding Material: Made from fused silica with a cladding non-circularity of ≤ 1% for improved reliability.
- Protective Coating: UV-cured acrylate coating with a diameter of 232 (+0 /–4) µm for enhanced fiber protection.
- Enhanced Buffer Material: ETFE buffer with a diameter of 500 ±30 µm allows for easy handling and installation.
- Low Attenuation Rates: Attenuation is ≤ 2.4 dB/km at 850 nm and ≤ 0.8 dB/km at 1300 nm for GIPC50; ≤ 3.2 dB/km at 850 nm and ≤ 1.0 dB/km at 1300 nm for GIPC62.
- High Bandwidth: Supports bandwidth > 5 at 850 nm and > 2 at 1300 nm, ensuring efficient data transmission.
- Extended Link Length: Supports link lengths > 600 µm at 850 nm and > 350 µm at 1300 nm for GIPC50; > 600 µm at 850 nm and > 550 µm at 1300 nm for GIPC62.
- Numerical Aperture: 0.200 ±0.015 for GIPC50 and 0.275 ±0.015 for GIPC62, providing flexibility in application.
- Robust Mechanical Performance: Capable of withstanding a threefold higher mechanical load compared to standard 125 µm diameter fibers.
- Special Coating for Thermal Performance: Designed to offer optimum thermal properties for demanding environments.
- Easy Handling and Installation: Features a 500 µm ETFE buffer for quick, cost-efficient, and simple crimp-and-cleave assembly.
Applications
- Industrial Data Communications: For robust and reliable high-speed data links.
- Telecommunication Networks: Suitable for OM1 and OM2 compliant systems.
- Harsh Environment Installations: Ideal for demanding mechanical conditions.
- Short to Medium-Distance Fiber Links: Efficient transmission with minimal attenuation.
Frequently Asked Questions
What are the differences between GIPC50 and GIPC62?
How easy is it to handle GIPC fibers?
How much mechanical load can GIPC fiber withstand?
What is the GIPC fiber series used for?
What is the coating material used for GIPC fiber?
