Description
High Temp. Fiber

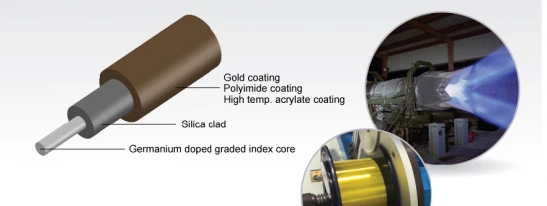

Graded Index Multimode High Temp. Fiber
Pure Silica Graded Index Core High Temp.Fiber
Graded Index Core High Temp. Fiber
Silica Core(step index)High Temp. Fiber
Single-Mode High Temp. Fiber
High Temperature Fiber
Specifications
| Core Diameter: | 50 um |
|---|---|
| Wavelength Range: | 190 – 2400 nm |
| Cable Length: | Not Specified |
| Fiber Core Material: | Silica |
| Working Temp.(50/125/155P20 ): | -60 ~ +350 ℃ |
| Working Temp.(50/125/155SA20 ): | -40 ~ +150 ℃ |
| Working Temp.(50/125/155P20 & 62.5/125/155P27): | -60 ~ +350 ℃ |
| Working Temp.(50/125/155SA20 & 62.5/125/155SA27): | -40 ~ +150 ℃ |
| Working Temp.(50/125/155G20 & 62.5/125/155G27): | -270 ~ +700 ℃ |
| Step Index( Working Temp.Polyimide Coating): | -60 ~ +350 ℃ |
| Step Index( Working Temp. Hight Emp. Acrylate Coating): | -40 ~ +150 ℃ |
| Single Mode(PTSB1310SA245): | -40 ~ +150 ℃ |
| Single Mode(PTSB1310P155): | -60 ~ +350 ℃ |
| Single Mode(PTSB1310P100): | -65 ~ +350 ℃ |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Applications
High Temperature and cryogenic temperature sensor
Semiconductor manufacturing
Corrosive environment
Oil and gas well downhole sensor
Ultra high vacuum equipment
Radiaction Sensor
Rocket turbine and jet engine monitorin
Frequently Asked Questions
What is High Temperature Fiber?
High Temperature Fiber is a type of fiber optic cable that is designed to withstand extreme temperatures.
What are the different types of High Temperature Fiber?
There are several types of High Temperature Fiber, including Graded Index Multimode, Pure Silica Graded Index Core, Graded Index Core, Silica Core (step index), and Single-Mode.
What are some applications of High Temperature Fiber?
High Temperature Fiber is commonly used in high temperature and cryogenic temperature sensors, semiconductor manufacturing, corrosive environments, oil and gas well downhole sensors, ultra high vacuum equipment, radiation sensors, and rocket turbine and jet engine monitoring.
What makes High Temperature Fiber different from other fiber optic cables?
High Temperature Fiber is designed to withstand extreme temperatures, making it ideal for use in harsh environments where other fiber optic cables would fail.
What are the benefits of using High Temperature Fiber?
The benefits of using High Temperature Fiber include its ability to withstand extreme temperatures, its durability in harsh environments, and its reliability in critical applications.
Got more questions? Use the RFQ form to ask the supplier directly.
