Step-Index Multimode UV-VIS Optical Fiber for Spectroscopy & Photonics

Description

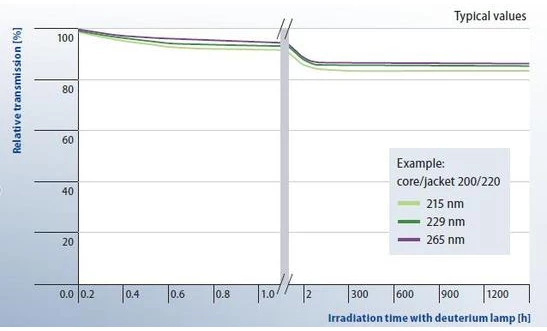

Progressive absorption of the fibers to the point of complete failure occurs when using UV-VIS fibers < 240 nm. Our solarization- stable fibers can be used for applications in this critical range. These newly developed fibers with high OH content are characterized by very good transmission in the 190–250 nm range. A deuterium light source was used for the measurement.

Advantages of Step-Index Multimode UV-VIS Fibers
Step-index multimode optical fibers are designed with a uniform core refractive index and a distinct refractive index transition between the core and cladding. This architecture supports efficient light collection and high optical throughput, making these fibers particularly suitable for spectroscopy, sensing, UV-VIS analytical instrumentation, and laser delivery systems. Large-core step-index fibers provide improved alignment tolerance and enhanced coupling efficiency for broadband ultraviolet and visible light sources, enabling stable optical transmission in demanding scientific and industrial photonics applications.

Large-Core Fiber Configurations for High Optical Throughput
FiberTech Ultrasol UV-VIS fibers are available in core diameters ranging from 100 µm to 600 µm, supporting efficient optical coupling and high light collection performance across a broad range of spectroscopy, sensing, and laser delivery systems. Larger core diameters improve alignment tolerance and optical throughput, making these fibers particularly effective for ultraviolet and visible light transmission in analytical instrumentation, fluorescence systems, and industrial photonics applications.

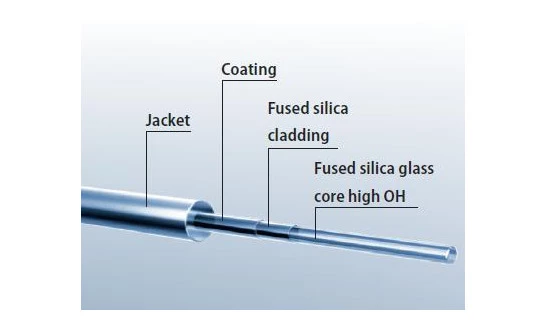

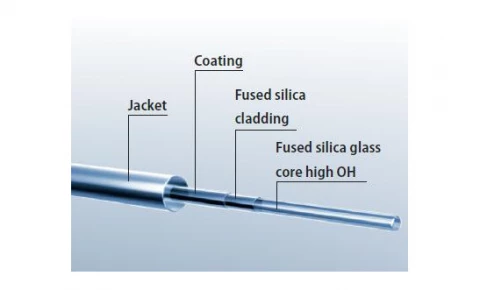

Flexible Coating and Jacket Options for Industrial and Scientific Environments
FiberTech Ultrasol UV-VIS fibers are available with polyimide and acrylate coatings to support different thermal, mechanical, and environmental requirements. Optional Nylon® and Tefzel® jackets provide additional protection for industrial, laboratory, and harsh-environment applications requiring improved chemical resistance and long-term durability.

Specifications

Core Diameter:	400 um
Wavelength Range:	190 – 250 nm
Cable Length:	Not Specified
Fiber Core Material:	Silica
Fiber Length:	Custom
Fiber Type:	Solar Stable
Clad Diamater:	440 um
Coating Diameter (single Acrylate):	520 um
Coating Diameter (polyimide):	465 um

Got questions about specs? Use the inquiry form to ask.

Download Data Sheet

Features

Solarization-stable fibers are also available as fiber bundles with a single-fiber core from 30 μm.

Step-Index Multimode Fiber Design: Optimized for efficient ultraviolet and visible light transmission with high optical throughput and reliable multimode propagation characteristics.
UV-VIS Spectral Transmission: Suitable for applications operating across ultraviolet and visible wavelength ranges used in spectroscopy, sensing, and analytical instrumentation.
Large-Core Fiber Configurations: Available in core diameters from 100 µm to 600 µm to support improved optical coupling efficiency and alignment tolerance.
High Optical Throughput: Designed for efficient broadband light collection and transmission in spectroscopy, fluorescence, and photonics systems.
Fused Silica Fiber Construction: Manufactured using high-quality fused silica materials for stable optical performance and low transmission loss.
Polyimide and Acrylate Coating Options: Multiple coating configurations available to support different thermal, mechanical, and environmental operating conditions.
Optional Nylon® and Tefzel® Jackets: Additional protective jacket options available for enhanced durability and chemical resistance in industrial and laboratory environments.
Broad Scientific and Industrial Compatibility: Suitable for spectroscopy, optical sensing, UV laser delivery, biomedical instrumentation, and photonics research applications.
Improved Alignment Tolerance: Large-core multimode structure simplifies optical coupling and integration into analytical and industrial optical systems.
Customizable Fiber Configurations: Further specifications and customized fiber configurations, including CCDR options, are available for specialized applications.

Applications

UV-VIS Spectroscopy: Stable ultraviolet and visible light transmission for spectroscopy and analytical instrumentation systems.
Fluorescence Measurement Systems: Efficient excitation and signal collection for fluorescence analysis and biomedical instrumentation.
UV Laser Delivery: Transmission of ultraviolet laser energy in industrial photonics and laboratory applications.
Optical Sensing Systems: Fiber integration for industrial, environmental, and scientific optical sensing platforms.
Semiconductor Inspection: Optical transmission for UV inspection and semiconductor metrology systems.
Biomedical Diagnostics: Light delivery for biomedical optics and diagnostic instrumentation.
Analytical Chemistry Instrumentation: Integration into absorption spectroscopy and chemical analysis systems.
Machine Vision and Imaging: Optical signal transmission for imaging, inspection, and industrial machine vision applications.
Photonics Research and Development: Suitable for experimental photonics systems and UV-VIS optical characterization setups.
UV Curing and Processing Systems: Delivery of ultraviolet energy for industrial curing and photochemical processing applications.

Name

Work Email

Organization (recommended)

Your message to supplier

Ships from:: United States
Sold by:: Weinert Fiber Optics ✓ Verified Supplier
On FindLight:: since 2015

Why contact via FindLight?

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply
Autofill forms with a Buyer Account

Frequently Asked Questions

What is the difference between these fibers and UV-VIS fibers?

These fibers are solarisation-stable and can be used in the critical range below 240 nm without progressive absorption leading to complete failure.

What is the coating material used for these fibers?

These fibers have a coating of either single acrylate or polyimide.

What is the core diameter of the fiber bundles?

The fiber bundles have a single-fiber core diameter of 30 μm.

What is the wavelength range for which these fibers can be used?

These fibers can be used in the 190-250 nm range.

What is a step-index multimode optical fiber?

A step-index multimode fiber uses a uniform refractive index within the fiber core and a distinct refractive index transition at the cladding boundary to guide light efficiently across multiple propagation modes.

Why are large-core UV-VIS fibers used in spectroscopy systems?

Large-core fibers improve light collection efficiency and alignment tolerance, making them ideal for spectroscopy, fluorescence, and analytical instrumentation applications.

What is the advantage of polyimide-coated optical fibers?

Polyimide coatings provide improved thermal stability and chemical resistance for demanding industrial and scientific operating environments.

What wavelengths are supported by UV-VIS optical fibers?

UV-VIS optical fibers are designed to transmit ultraviolet and visible wavelengths commonly used in spectroscopy, sensing, biomedical optics, and photonics applications.

Why are multimode fibers preferred for light collection systems?

Multimode fibers support higher optical throughput and easier coupling compared to smaller-core single-mode fibers, making them suitable for sensing and broadband optical systems.
