Description
Introducing our advanced solarization-stable optical fibers, designed to deliver exceptional performance in the critical UV-VIS spectrum. These fibers are engineered to maintain high transmission rates even in challenging environments, making them an ideal choice for applications requiring durability and reliability. Crafted with a high OH content, these fibers excel in the 190–250 nm range, ensuring superior performance when exposed to ultraviolet light sources, such as deuterium lamps.

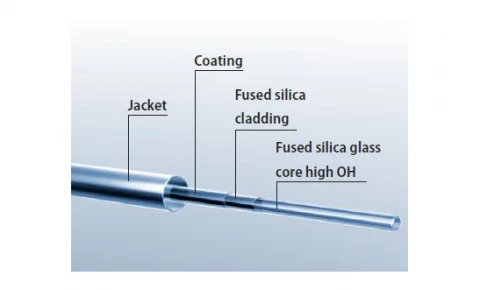

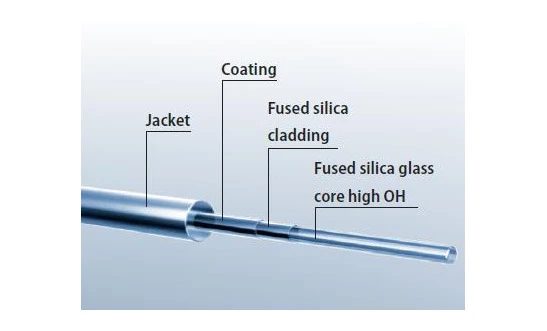

Our innovative fibers feature a robust fused silica glass core and cladding, providing excellent resistance to solarization effects. This ensures that the fibers maintain their integrity and functionality over extended periods of exposure, significantly reducing the risk of progressive absorption and failure. The fibers are available with different coatings, including single acrylate and polyimide, each designed to enhance the fiber's durability and adaptability to various environmental conditions.
For added versatility, our solarization-stable fibers are also offered as fiber bundles. These bundles incorporate a single-fiber core starting from 30 μm, allowing for a wide range of custom applications. Additionally, optional coatings such as Nylon® or Tefzel® can be selected to meet specific requirements. Our fibers are not only reliable but also customizable, ensuring they meet the unique demands of your project.
With a focus on quality and innovation, our optical fibers are a testament to cutting-edge technology and engineering excellence. Whether you require fibers for high-precision scientific applications or robust industrial use, our solarization-stable fibers provide the performance and reliability you need to succeed.
FiberTech Ultrasol Fibers - 84808005F
Specifications |
|
|---|---|
| Core Diameter: | 300 um |
| Wavelength Range: | 190 – 250 nm |
| Fiber Core Material: | Silica |
| Fiber Length: | Custom |
| Fiber Type: | Solar Stable |
Features
- High Transmission Efficiency: These fibers provide excellent transmission in the 190–250 nm range, making them ideal for UV-VIS applications.
- Solarization-Stable: Designed to withstand progressive absorption and prevent failure in UV-VIS fibers under 240 nm, ensuring reliability in critical applications.
- Core and Cladding Options: Available in various core sizes (100 µm to 600 µm) and cladding sizes (110 µm to 660 µm) to suit different application needs.
- Durable Coatings: Choose between single acrylate and polyimide coatings, with diameters ranging from 135 µm to 740 µm for enhanced protection and performance.
- Customizable Configurations: Nylon® or Tefzel® coatings are optionally available, and further specifications including CCDR can be customized.
- Fused Silica Glass Core: Features a high OH content for superior performance in demanding environments.
- Versatile Fiber Bundles: Solarization-stable fibers are available as fiber bundles with single-fiber cores starting from 30 µm, offering flexibility for various applications.

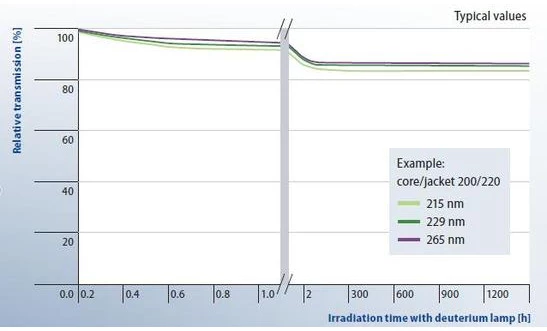

- Reliable Measurement: Performance measured using a deuterium light source to ensure accuracy and dependability.
- Order Information: Multiple order numbers and fiber code options are available for easy identification and procurement.
Applications
- UV and VIS Spectroscopy: Provides stable and efficient light transmission for accurate spectral analysis
- Laser-Based Analytical Instruments: Ensures reliable UV fiber delivery under high-power laser exposure
- UV Light Sources and Sensing: Ideal for long-lasting performance with deuterium lamps and other UV sources
- Medical Diagnostics and Research: Supports sensitive UV-based diagnostic tools and experimental setups
- Environmental Monitoring: Durable fibers for continuous UV measurement in harsh conditions
- Scientific Research: Enables precise UV light guidance for laboratory and industrial experiments
- Multi-Point Illumination: Fiber bundles facilitate uniform UV delivery for complex system requirements
Frequently Asked Questions
These fibers are solarisation-stable and can be used in the critical range where UV-VIS fibers < 240 nm would fail.
These fibers have a coating of polyimide with a coating diameter of ±3%.
These fibers are suitable for applications in the 190-250 nm range.
The fiber bundles have a single-fiber core diameter of 30 μm.
Yes, Nylon® or Tefzel® coating options are also available.
