Description
- Power Delivery Fiber
- Silica Core Single Clad Fiber
- Silica Core Double Clad Fiber
- Step Index Silica Core Double Clad Fiber
- Graded Index Silica Core Double Clad Fiber
- Silica Core Triple Clad Fiber

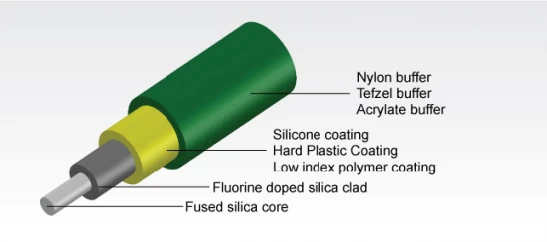

Power Delivery Silica Core Fiber
Specifications
| Core Diameter: | 40 um |
|---|---|
| Wavelength Range: | 190 – 2400 nm |
| Fiber Core Material: | Silica |
| Silica Core Single Clad Fiber Working Temp.(Acrylate Coating): | -40 ~ +85 ℃ |
| Step Index FSilica Core Double Clad Fiber(Working Temp. Hard Plastic Coating / Tefzel Buffer): | -65 ~ +200 ℃ |
| Step Index FSilica Core Double Clad Fiber(Working Temp. Silicone Coating / Tefzel Buffer): | -60 ~ +200 ℃ |
| Step Index FSilica Core Double Clad Fiber(Working Temp. Silicone Coating / Nylon Buffer): | -60 ~ +105 ℃ |
| Step Index FSilica Core Double Clad Fiber(Working Temp.Low Index Polymer Coating / Acrylate Buffer): | -40 ~ +85 ℃ |
| Graded Index Silica Core Double Clad Fiber(Working Temp. Silicone Coating / Nylon Buffer): | -60 ~ +105 ℃ |
| Silica Core Triple Clad Fiber(Working Tmep. Acrylate Coating): | -40 ~ +85 ℃ |
| Silica Core Triple Clad Fiber(Working Tmep.Silicone Coating / Nylon Buffer): | -60 ~ +105 ℃ |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Applications
- Optical data transmission
- Sensor technology
- Spectroscopy
- Medical technology
- Laser applications
Frequently Asked Questions
What is Power Delivery Silica Core Fiber?
Power Delivery Silica Core Fiber is a type of fiber optic cable that is designed to deliver high power laser light.
What are the different types of Silica Core Fiber available?
There are several types of Silica Core Fiber available, including Single Clad Fiber, Double Clad Fiber (Step Index and Graded Index), and Triple Clad Fiber.
What are the applications of Power Delivery Silica Core Fiber?
Power Delivery Silica Core Fiber is used in a variety of applications, including optical data transmission, sensor technology, spectroscopy, medical technology, and laser applications.
What is the difference between Single Clad Fiber and Double Clad Fiber?
Single Clad Fiber has only one layer of cladding, while Double Clad Fiber has two layers of cladding. Double Clad Fiber is designed to handle higher power levels than Single Clad Fiber.
What is the advantage of using Silica Core Fiber in laser applications?
Silica Core Fiber has a high damage threshold and can handle high power levels, making it ideal for use in laser applications.
Got more questions? Use the inquiry form to ask the supplier directly.
