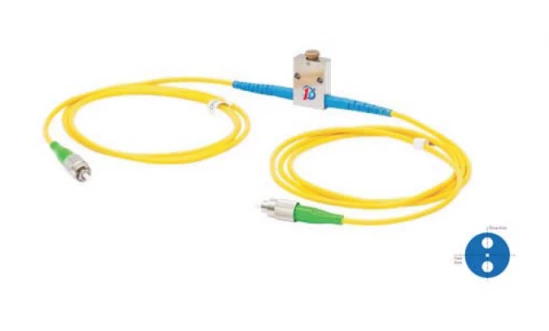

Thumbnail of 1030nm Polarization Maintaining Mechanical Variable Optical Attenuator for Fiber Systems photo 1

Description

1030nm Polarization Maintaining Mechanical Variable Optical Attenuator – Product Overview The 1030nm Polarization Maintaining Mechanical Variable Optical Attenuator from DK Photonics is a precision-engineered solution designed to deliver reliable and accurate optical power control in advanced photonics applications. This attenuator is specifically tailored for systems requiring strict polarization maintenance, making it an ideal choice for fiber laser setups, optical component testing, and laboratory research environments where the integrity of the polarization state is critical.

Constructed with high-quality polarization maintaining fibers, this device ensures that the polarization state of the transmitted light remains stable throughout the attenuation process. The mechanical design incorporates a robust self-locking adjustment mechanism, which eliminates transmission gaps and provides smooth, stable, and repeatable attenuation control.

Users can select between a hand-twist or flat-blade screwdriver adjustment, offering flexibility and ease of use depending on the application environment. The attenuator features a compact and lightweight aluminum alloy housing, making it suitable for integration into space-constrained setups without compromising durability. Its high extinction ratio, low insertion loss, and high return loss guarantee minimal signal degradation and optimal performance even in demanding optical systems.

The device’s high attenuation resolution and excellent vibration resistance further enhance its suitability for precision testing and measurement tasks. Widely used in fiber communication system testing, passive component evaluation, fiber laser and amplifier systems, and optics laboratories, the 1030nm Polarization Maintaining Mechanical Variable Optical Attenuator stands out for its reliability, stability, and user-friendly operation. Its customizable configuration options allow it to meet a broad range of specific requirements, ensuring seamless integration into diverse photonic infrastructures.

1030nm Polarization Maintaining Mechanical Variable Optical Attenuator for Fiber Systems

Visit the DK Photonics Store

Specifications

Number Of Channels: Single Channel
Operating Wavelength Range: 980 – 1060 nm
Dynamic Attenuation Range (max): 0.6 dB
Insertion Loss (max): 0.6 dB
Return Loss (min): 50 dB
Wavelength: 1030 nm
Fiber Type: PM980-XP Panda Fiber
Fiber Length: 1.0 m
Fiber Outer Diameter: 0.9 mm
Connector Type: FC/APC
Attenuator Type: Mechanical Variable
Polarization Maintaining: Yes
Size Options: Mini size, Standard size

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wavelength: Optimized for 1030nm, ideal for Yb-doped fiber laser and amplifier systems.
  • Polarization Maintaining: All input and output fibers are polarization maintaining, ensuring stable polarization state throughout operation.
  • Wide Attenuation Range: Precisely adjustable optical attenuation to suit various testing and system requirements.
  • Low Insertion Loss: Minimal original loss for maximum signal integrity and efficiency.
  • High Extinction Ratio: Superior polarization extinction ratio for demanding PM applications.
  • High Return Loss: Reduces back reflections, protecting sensitive optical components.
  • High Precision Adjustment: Fine-tuned attenuation with high resolution, suitable for laboratory and field use.
  • Stable Mechanical Design: Elastic nut and screw structure with self-locking mechanism for stable, gap-free, and vibration-resistant adjustment.
  • Compact and Lightweight: Available in mini and standard sizes with aluminum alloy shell for easy integration into various setups.
  • Flexible Operation: Adjustment via hand twist or flat-blade screwdriver for user convenience.
  • Customizable Fiber and Connector Options: Supports various fiber types (e.g., PM980-XP Panda Fiber) and connector configurations (e.g., FC/APC).
  • Applications:
    • Fiber communication system testing
    • Optical passive component testing
    • Fiber laser and amplifier systems
    • Optics laboratory use
  • Quality Assurance: Manufactured to strict quality standards with ongoing design improvements.
  • Custom Solutions Available: Tailored configurations and specifications to meet unique customer requirements.

Applications

  • Fiber Laser Systems: Precise control of optical power in fiber laser setups, ensuring optimal performance and protection of sensitive components.
  • Optical Communication System Testing: Used for simulating signal loss and testing the performance of fiber optic communication systems under various attenuation conditions.
  • Optical Passive Component Testing: Essential for evaluating and calibrating passive optical components such as isolators, couplers, and splitters.
  • Fiber Amplifier Characterization: Enables accurate measurement and adjustment of input/output power levels in fiber amplifier modules.
  • Optical Sensing Systems: Maintains precise polarization and power levels in advanced fiber optic sensing applications, including distributed and point sensors.
  • Quantum Optics Experiments: Maintains polarization state and controls photon flux in quantum communication and quantum computing research setups.
  • Laboratory Research & Development: Ideal for general optics laboratory use, including prototyping, experimental setups, and educational demonstrations.
  • Polarization-Sensitive Measurements: Ensures stable polarization for applications requiring high polarization extinction ratios, such as polarization mode dispersion (PMD) and polarization-dependent loss (PDL) testing.
  • System Integration & Prototyping: Facilitates integration into larger photonic systems where variable attenuation and polarization maintenance are critical.
  • Medical and Biophotonics Applications: Used in optical coherence tomography (OCT) and other biomedical imaging systems requiring precise light control and polarization maintenance.

Frequently Asked Questions

What is a 1030nm Polarization Maintaining Mechanical Variable Optical Attenuator?
A 1030nm Polarization Maintaining Mechanical Variable Optical Attenuator (PM VOA) is a precision optical device designed to control and reduce the optical power in fiber optic systems while maintaining the polarization state of the light. It is commonly used in fiber laser systems, optical component testing, and fiber communication setups.
What are the key features of the DK Photonics 1030nm PM Mechanical Variable Optical Attenuator?
Key features include a wide attenuation range, high precision, low insertion loss, high extinction ratio, high return loss, compact size, and robust mechanical stability. It is available in both standard and mini sizes, with options for hand twist or screwdriver adjustment.
What applications is the 1030nm PM Mechanical Variable Optical Attenuator suitable for?
This attenuator is ideal for fiber laser systems, fiber amplifier setups, optical passive component testing, system testing in fiber communications, and general optics laboratory use.
How does the polarization maintaining function benefit optical systems?
The polarization maintaining (PM) function ensures that the polarization state of the input light is preserved throughout the attenuation process. This is crucial in applications where polarization integrity is essential, such as in fiber lasers and high-precision optical measurements.
How do I adjust the attenuation on the DK Photonics PM VOA?
The DK Photonics PM VOA can be adjusted either by hand using a twist mechanism or with a flat-blade screwdriver, depending on the model. The self-locking elastic structure ensures stable and precise attenuation control without transmission gaps.
Can I customize the DK Photonics 1030nm PM VOA for my specific requirements?
Yes, DK Photonics offers customization options for fiber type, connector type, fiber length, and package size. When inquiring, provide the correct part number and a detailed description of your requirements for a tailored solution.
What makes the DK Photonics PM VOA different from standard variable optical attenuators?
Unlike standard VOAs, the DK Photonics PM VOA is specifically designed to maintain the polarization state of light, features a high extinction ratio, and offers a robust, vibration-resistant mechanical design for high stability and precision in demanding optical applications.
