Description

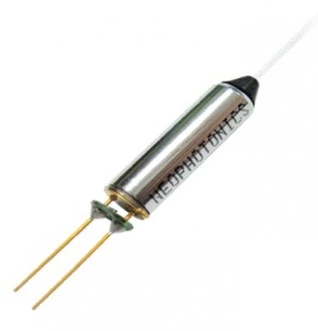

The Pure Photonics MEMS-Based Variable Optical Attenuator (VOA) delivers ultra-compact, high-performance attenuation for modern optical networks. Featuring Lumentum’s advanced MEMS technology, this VOA offers precise control of optical power with both bright and dark configurations available to suit various system requirements. The hermetically-sealed MEMS chip provides excellent resilience, ensuring stable performance even under shock, vibration, or electrostatic discharge conditions (ESD safe up to 500 V).
Designed for flexible integration, this VOA supports low insertion loss, minimal polarization-dependent loss, a high dynamic range, and superior off-state extinction, making it ideal for applications such as receiver protection, transponder power control, and equalization in multi-channel systems including EDFAs. Pure Photonics currently maintains inventory of the VOA8000 model, while the smaller form-factor VOA9000 is available upon request. Compact, reliable, and versatile, the MEMS VOA is a trusted solution for managing optical power in demanding network environments.
MEMS Variable Attenuator
Specifications |
|
|---|---|
| Number Of Channels: | Single Channel |
| Operating Wavelength Range: | 1528 – 1565 nm |
| Dynamic Attenuation Range (max): | 30 dB |
| Insertion Loss (max): | 0.8 dB |
| Return Loss (min): | 45 dB |
Features
- Ultra-Compact Design: Small form-factor for easy integration in dense optical systems.
- High Dynamic Range: Enables precise optical power control across wide attenuation levels.
- Low Insertion Loss: Minimizes signal loss, enhancing overall network performance.
- Low Polarization Dependent Loss: Ensures stable signal integrity across polarization states.
- Hermetically Sealed MEMS Chip: Resistant to shock, vibration, and harsh environments.
- High Off-State Extinction: Effectively blocks light in the off position for superior isolation.
- ESD Safe: Withstands electrostatic discharge up to 500 V for enhanced reliability.
Applications
- Receiver Protection: Shields sensitive receivers from excessive optical power.
- Transponder Power Control: Facilitates precise output power tuning in transponders.
- EDFA Gain Equalization: Optimizes channel balance in multi-channel amplifier systems.
- Optical Network Power Management: Provides dynamic attenuation in DWDM and CWDM systems.
Frequently Asked Questions
It is a voltage controlled attenuator that uses MEMS technology to provide a high dynamic attenuation range and low insertion loss.

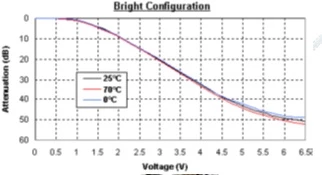

The standard version is transparent at 0V and reaches maximum absorption at around 5V, while the dark version is absorbent at 0V and reaches maximum absorption at 15V.
Yes, it is Telcordia GR-1221 compliant.
No, it is insensitive to shock and vibration.
Please contact Pure Photonics for the datasheet or further information at www.pure-photonics.com.
