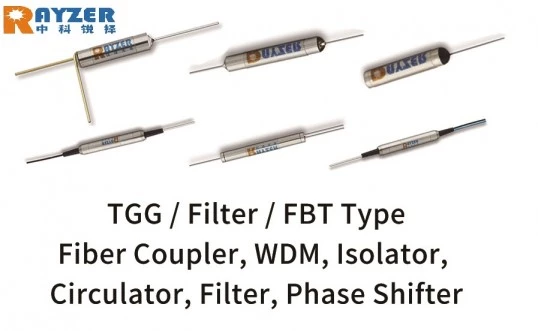

Polarization Maintaining 1x2 Fiber Fused Coupler 50/50 ratio 1550nm
Description
Introducing the Polarization Maintaining Fused Coupler by CSRayzer, a cutting-edge solution designed for precise management of optical signals in specialized applications. This high-performance device, with Part No. PMTC-1X2-50:50-1550-3.0*45-1-0-N-B, is engineered to deliver exceptional performance and reliability.
Operating within a center wavelength of 1550 nm and a ±10 nm operating wavelength range, this coupler ensures accurate signal transmission and manipulation. With a balanced 50/50 coupling ratio, it offers symmetrical splitting of optical power, enabling efficient signal distribution.
Featuring minimal insertion loss of ≤3.60 dB and an excess loss of ≤0.5 dB, this coupler maintains signal integrity while minimizing power loss. It boasts a high polarization extinction ratio of ≥20 dB, guaranteeing excellent polarization purity.
Constructed with PM 1550 (250um) fiber, this coupler ensures robust and consistent performance. Its compact package dimensions of 3.0X45 mm make it suitable for integration into various optical systems.
Designed for versatility, this coupler operates in both axes, accommodating diverse application requirements. It is capable of withstanding operating temperatures ranging from -5°C to +75°C and storage temperatures from -40°C to +85°C, ensuring reliability in challenging environmental conditions.
CSRayzer's Polarization Maintaining Fused Coupler is the ideal choice for applications demanding precision optical signal management, such as telecommunications, fiber optic sensing, and instrumentation. With its exceptional performance, reliability, and versatility, this coupler empowers engineers and researchers to achieve superior results in their optical systems.
Polarization Maintaining 1x2 Fiber Fused Coupler 50/50 ratio 1550nm
Specifications |
|
|---|---|
| Type: | Fused Biconical Taper (FBT) |
| Configuration: | 1x2 |
| Splitting Ratio: | 50/50 |
| Wavelength: | 1550 nm |
| Fiber Type: | |
| Connector Type: | Other / Not specified |
| Housing Material: | Other / Not specified |
| Configuration: | 1x2 |
Features
- Center Wavelength: Operating within the 1550 nm range for precise optical signal management.
- Coupling Ratio: Offers a balanced 50/50 coupling ratio for symmetrical power splitting.
- Minimal Insertion Loss: Ensures efficient signal transmission with an insertion loss of ≤3.60 dB.
- High Polarization Extinction Ratio: Achieves excellent polarization purity with a ratio of ≥20 dB.
- Compact Design: Features compact package dimensions of 3.0X45 mm for easy integration into optical setups.
- Versatile Operation: Capable of operating in both axes to accommodate diverse application requirements.
- Wide Temperature Range: Withstands operating temperatures from -5°C to +75°C and storage temperatures from -40°C to +85°C for reliable performance in varying environmental conditions.
- Fiber Compatibility: Utilizes PM 1550 (250um) fiber for robust and consistent signal transmission.
- Excess Loss: Maintains minimal excess loss of ≤0.5 dB for optimized signal integrity.
- Maximum Average Optical Power: Supports optical power up to ≤500 mW for versatile applications.
Applications
- Telecommunications: Ideal for use in optical communication systems for signal splitting and distribution.
- Fiber Optic Sensing: Enables precise signal management in fiber optic sensing applications for accurate data collection.
- Instrumentation: Suitable for instrumentation setups requiring precise optical signal manipulation and distribution.
- Optical Networking: Facilitates efficient signal routing and distribution in optical network infrastructure.
- Fiber Optic Testing: Essential component for testing and measurement setups to assess optical signal performance.
- Fiber Optic Gyroscopes: Enables precise signal splitting and manipulation in fiber optic gyroscopes for navigation and stabilization applications.
- Biomedical Instrumentation: Supports optical signal management in biomedical instruments for research and diagnostic purposes.
- Aerospace and Defense: Used in aerospace and defense applications for optical signal distribution and control.
- Research and Development: Essential for optical research and development setups requiring precise signal management and control.
- Fiber Laser Systems: Facilitates signal splitting and management in fiber laser systems for industrial and scientific applications.
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2020
Frequently Asked Questions
The product is a polarization-maintaining fiber coupler with a 50/50 ratio and operates at a wavelength of 1550nm. It is suitable for special applications such as aerospace and military.
You can contact CSRayzerOpticalTechnologyCo.Ltd through their telephone number: +86-27-87697602 or via email at INTL@csrayzer.com. You can also visit their website at www.csrayzer.cn.
The specifications include a center wavelength of 1550nm, a coupling ratio of 50/50, insertion loss of ≤3.60dB, and a polarization extinction ratio of ≥20dB. The package dimension is 3.0X45mm and it operates at a temperature range of -5 to +75℃.
The fiber type used is PM1550 (250um).
The maximum average optical power that the coupler can handle is ≤500mW.
