Description

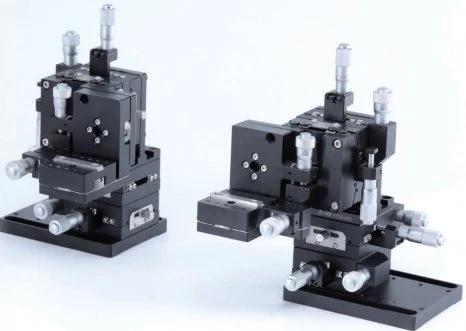

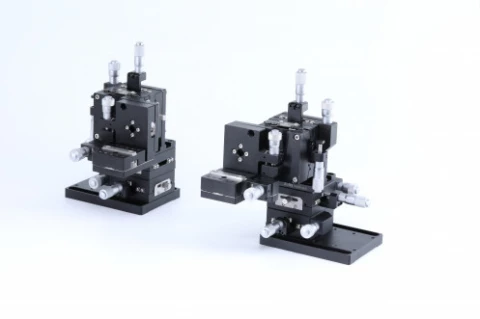

The UFP series high sensitivity fiber coupling stages are designed for precise fiber alignment and coupling applications. These stages offer multi-axis adjustment capability, ensuring accurate positioning.
With linearity sensitivity better than 0.5µm and angular sensitivity better than 23.4", they provide high precision and stability. The stages are available in various models with different travel ranges and configurations.
They feature crossed-roller bearings and micrometer actuators for smooth and precise movement. The UFP series is suitable for applications requiring high sensitivity fiber alignment and integration.
UFP3C-L High Sensitivity Fiber Coupling Stage
Specifications
| Hole Diameter: | 1000 um |
|---|---|
| Angle: | -3 – 3 deg |
| Structure Type: | Translation Stage, Rotary Stage |
| Travel (Sensitivity) X Coarse Adjustment: | ±6.5 mm |
| Travel (Sensitivity) Y Coarse Adjustment: | ±6.5 mm |
| Travel (Sensitivity) Z Coarse Adjustment: | ±6.5 mm |
| Bearings: | Crossed-Roller Bearings |
| Actuators: | Micrometer |
| Weight: | 1.74 kg |
| Weight: | 1.5 kg |
Download Data Sheet
Features
- Multi-axis adjustment for precise positioning
- Linearity sensitivity better than 0.5µm and angular sensitivity better than 23.4"
- High stability for reliable performance
- Different models available for varying travel ranges and configurations
- Crossed-roller bearings and micrometer actuators ensure smooth and precise movement
Applications
- Fiber alignment and coupling
- Optoelectronics research and development
- Telecommunications
- Laser systems
- Optical testing and measurement
Frequently Asked Questions
What kind of bearings do you use in these fiber coupling stages?
For our UFP3C-L and UFP3C-R models we use Crossed-Roller Bearings, and for the other models (UFP5C-L, UFP5C-R, UFP6C-L, and UFP6C-R) we use Crossed-Roller Bearings + Crossed-Roller Ring combo.
How do I specify the configuration of the coupling stage?
We have included a naming rule that will allow you to quickly specify the configuration. please refer to the downloadable data sheet for details.
How many axes does this High Sensitivity Fiber Coupling Stage have
Depending on the model these stages can have from 3 to 6 axes of adjustment.
What is the lead time on this product?
For all questions including on availability, pricing and shipping, please contact us through FindLight. We will get back to you shortly.
What is the sensitivity of the UFP series high sensitivity fiber coupling stage?
The linearity sensitivity is better than 0.5um, and the angular sensitivity is better than 23.4".
How many different models are available in the UFP series high sensitivity fiber coupling stage?
We currently offer 6 different models of the UFP series high sensitivity fiber coupling stage.
What is the weight and load capacity of the UFP series high sensitivity fiber coupling stage?
The weight ranges from 1.74kg to 2.7kg, and the load capacity ranges from 0.5kg to 1.5kg.
What applications is the UFP series high sensitivity fiber coupling stage suitable for?
The UFP series high sensitivity fiber coupling stage is suitable for applications such as optical coupling and alignment, Raman spectroscopy, biomedical experiments, and bio-photonics.
What are the naming rules for the UFP series high sensitivity fiber coupling stage models?
The naming rules include indicating the number of axes (3, 5, or 6), the drive position (L or R), and the configuration (A, B, or C).
