Description
Zolix presents a series of High Precision Fiber Alignment Stages, meticulously designed for utmost accuracy in a multitude of optical applications. With features like adjustable tilt and rotation, crossed-roller bearings, and various axes of travel, these stages are a go-to solution for industries including telecommunications, healthcare, aerospace, and research. Experience unparalleled precision with Zolix’s durable and versatile alignment stages.

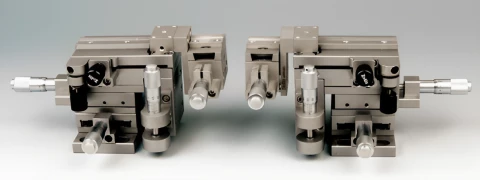

NFP Series High Precision Fiber Optic Alignment Stages
Specifications
| Hole Diameter: | Not Specified |
|---|---|
| Angle: | -10 – 10 deg |
| Structure Type: | Translation Stage |
| Rotation Angle: | ± 10° |
| Linear Sensitivity: | ＜1μm |
| Sensitivity: | 6” |
Got questions about specs? Use the inquiry form to ask.
Download Data Sheet
Features
- High Precision Alignment: The stages offer high precision in fiber alignment, ensuring accurate and reliable results in applications.
- Multiple Axes of Travel: With various models featuring different axes of travel, users can find the ideal stage for their specific alignment needs.
- Durable Construction: Built with quality stainless steel materials like 304 and 430, the stages promise longevity and robustness in different operating environments.
- Crossed-Roller Bearing Type: Ensures stability and smooth movement, reducing the risk of errors during alignment.
- Adjustable Tilt and Rotation: The goniometer and rotation features provide users with versatility in alignment adjustments.
- Micrometer and Linear Motor: These components facilitate precise adjustments and movements, essential for accurate alignment.
- Ultra-High Stability Grades: The stages are categorized into different stability grades, allowing users to choose based on their requirements.
Applications
- Fiber Optic Communications: Ideal for aligning fiber optics in telecommunications, improving signal transmission quality.
- Laboratory Research & Development: Essential for researchers and scientists in developing new optical technologies and conducting experiments.
- Optical Component Manufacturing: Useful in the manufacturing process of lenses, lasers, and other optical components, ensuring precise alignment.
- Medical Imaging & Diagnostics: Applicable in aligning fibers for medical imaging devices, contributing to accurate diagnostics.
- Aerospace & Defense Technologies: Can be utilized in the development and maintenance of advanced optical systems in aerospace and defense.
Frequently Asked Questions
What is the purpose of the NFP series high precision fiber optic alignment stages?
The NFP series high precision fiber optic alignment stages are designed for fiber alignment.
How many axes of adjustment do the NFP series stages provide?
The NFP series stages can provide adjustment from one to six axes.
What materials are used for the base of the NFP series stages?
The base of the NFP series stages is made of 304 stainless steel.
What is the rotation angle and sensitivity of the NFP-GON10 High Precision Goniometer Stage?
The NFP-GON10 High Precision Goniometer Stage has a rotation angle of θx: ± 10° and a sensitivity of 6".
What types of bearings are used in the NFP series stages?
The NFP series stages use crossed-roller bearings.
Got more questions? Use the RFQ form to ask the supplier directly.
