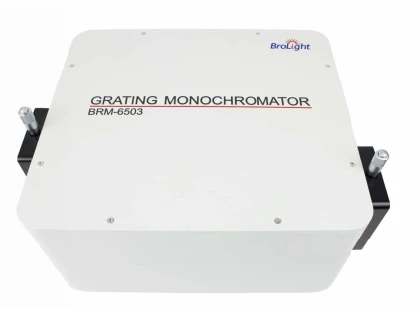

Brolight BRM-650X Grating Monochromator
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
Hangzhou Brolight Technology -
On FindLight:
since 2025
Description
The BRM-650X Series Grating Monochromators are designed to offer exceptional performance with a focal length of 250mm, providing an ultra-wide spectral range of 200 to 2200 nm. This series features an innovative M-type optical path structure, which enhances optical resolution significantly. The monochromators are equipped with an automatic grating switch mechanism to ensure optimal diffraction efficiency across the entire spectral range. Additionally, the BRM-650X series can be fitted with a filter wheel and electronic shutter, catering to more advanced and demanding applications.
One of the standout aspects of the BRM-650X series is its coaxial grating turntable scheme. This design allows for flexible configuration options, enabling the use of single, double, triple, or quadruple gratings. This adaptability means that the monochromators can be tailored to meet specific application requirements, making them a versatile choice for a wide range of scientific and industrial uses.
Manufactured with precision and attention to detail, the BRM-650X series is a testament to cutting-edge technology and engineering. Its robust construction ensures durability and reliability, while the user-friendly control software provides a seamless experience for operators. Whether used in research laboratories or industrial settings, the BRM-650X series is built to deliver outstanding performance and accuracy.
Brolight BRM-650X Grating Monochromator
Specifications |
|
|---|---|
| Focal Length: | 250 mm |
| Grating: | 1200 lines/mm |
| Focal Length: | 250 mm |
| Spectral Range: | 200-2200 nm |
| Grating Specification: | 1200 lines |
| Blaze Wavelength: | 500 nm/800 nm/1800 nm |
| Wavelength Accuracy: | ≤±0.5 nm / ≤±1 nm |
| Stray Light: | <0.0002 |
| Electronic Shutter: | Included, remote control supported |
| Filter Wheel: | Optional, electric control |
| Dimension: | 331×295×167 mm |
Features
- Ultra-Wide Spectral Range: Covers a spectral range of 200-2200 nm, ideal for a variety of applications.
- Advanced Optical Design: M-type optical path structure enhances optical resolution.
- Automatic Grating Switching: Ensures optimal diffraction efficiency with automatic grating changes.
- Versatile Grating Configuration: Supports single to quadruple gratings, adaptable to specific application needs.
- Built-in Electronic Shutter: Includes remote control capability for enhanced convenience.
- Optional Filter Wheel: Electric control filter wheel available for extended functionality.
- User-Friendly Interface: Simple control software with rich functionality for ease of use.
Applications
- Photodetectors Quantum Efficiency Test: Evaluate the efficiency of photodetectors by analyzing their response to different wavelengths.
- Fluorescence/Raman/Absorption/Transmission Spectroscopy Test: Conduct detailed spectroscopic analysis for various scientific and industrial applications.
- Single-Wavelength Power Calibration Test: Perform precise calibration of power measurements at specific wavelengths.
- Electrochemical/Bio-Catalytic Test: Support advanced research in electrochemical and bio-catalytic processes.
Frequently Asked Questions
The BRM-650X series grating monochromators cover an ultra-wide spectral range of 200-2200 nm.
The focal length of the BRM-650X series is 250 mm.
Yes, the grating can automatically switch to ensure the best diffraction efficiency.
Applications include photodetector quantum efficiency tests, fluorescence/Raman/absorption/transmission spectroscopy tests, single-wavelength power calibration tests, and electrochemical/bio-catalytic tests.
Yes, the BRM-650X series includes a built-in electronic shutter that supports remote control.
The BRM-650X series can be configured with single grating, double grating, triple grating, and quadruple grating options.
The dimensions of the BRM-650X series are 331×295×167 mm.
