Shamrock 163 Spectrograph - 150 lpmm 2000nm Blaze
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United Kingdom
-
Sold by:
-
On FindLight:
since 2015
Description
The Shamrock 163 is a compact and versatile Czerny-Turner spectrograph designed to meet the rigorous demands of research-grade spectroscopy. With a focal length of 163 mm and a high F/3.6 aperture, this spectrograph stands out as one of the most compact solutions available for benchtop spectroscopy applications. Its design ensures that it is not only portable but also easily integrated into various experimental setups, thanks to its dual horizontal and vertical mounting positions.
At the heart of the Shamrock 163's adaptability is its imaging-configurable platform, which is optimized for multi-track spectroscopy. This flexibility is further enhanced by a wide range of lens-based accessories that minimize cross-talk and enable simultaneous acquisition from multiple fiber optic signals. The spectrograph also boasts a broad selection of interchangeable gratings, each secured with a precision locking mechanism, allowing seamless upgrades and customization to meet specific experimental needs.
The Shamrock 163 offers a variety of fixed slits, with laser-cut precision widths ranging from 10 µm to 200 μm, and an array of light coupling interfaces, including fiber-optics and C-mount microscope couplers. This extensive configurability ensures that users can tailor the spectrograph to their unique requirements. Additionally, the spectrograph is equipped with a calibrated micrometer drive for wavelength selection, providing simple and rapid wavelength adjustments, which is crucial for efficient and accurate spectroscopic measurements.
Designed for ease of use and maximum functionality, the Shamrock 163 is an ideal choice for researchers looking for a reliable and high-performance spectrograph. Its compact size does not compromise its capabilities, making it a powerful tool for a wide range of spectroscopy applications. Whether for educational purposes or advanced research, the Shamrock 163 delivers precision and adaptability in a user-friendly package.
Shamrock 163 Spectrograph - 150 lpmm 2000nm Blaze
Specifications |
|
|---|---|
| Monochromator Type: | Czerny-Turner |
| Effective Focal Length: | 163 mm |
| Diffraction Grating: | 150 lines/mm |
| Grating Blaze Wavelength: | 2000 nm |
| Spectral Range: | 650 – 2300 nm |
| Linear Dispersion (Avg): | 37 nm/mm |
| Spectral Resolution (Avg): | 2.22 nm |
Features
- Compact & Rugged Design: Offers horizontal and vertical mounting positions for portability and ease of integration.
- Imaging-Configurable Platform: Supports multi-track spectroscopy with lens-based accessories, optimizing system performance for low cross-talk and simultaneous multi-leg fiber signal acquisition.
- Interchangeable Gratings: Features a simple precision locking mechanism for seamless upgradability, accommodating a wide range of gratings.
- Variety of Fixed Slits: Includes interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 µm.
- Light Coupling Interfaces: Offers a large choice, including fiber-optics and C-mount microscope couplers.
- Calibrated Micrometer Drive: Facilitates simple and rapid wavelength adjustment for precise selection.
- Versatile Compact Benchtop Spectrograph: The Shamrock 163 is the most compact research-grade Czerny-Turner spectrograph on the market, ideal for general benchtop spectroscopy measurements.
Applications
- General Benchtop Spectroscopy: Ideal for general spectroscopy measurements with its compact design.
- Multi-Track Spectroscopy: Imaging-configurable platform with lens-based accessories for low crosstalk and simultaneous multi-leg fiber signal acquisition.
- Customization for Specific Applications: Wide range of interchangeable gratings and slits for precise customization. Variety of fixed and adjustable slit width sizes for tailored measurements.
- Research and Development: Used for monitoring biphasic reactions, such as the oxidation of styrene.
- Optical Coating Customization: Options for aluminum + MgF2 or protected silver-coated optics for NIR detection.
- Compatibility with Andor Detectors: Compatible with Solis software or Software Development Kit (SDK) for enhanced functionality.
- Educational and Laboratory Use: Compact and portable design allows for easy integration into educational and laboratory settings.
Frequently Asked Questions
The Shamrock 163 Spectrograph is used for general benchtop spectroscopy measurements.
The focal length of the Shamrock 163 Spectrograph is 163 mm.
The aperture of the Shamrock 163 Spectrograph is F/3.6.
The weight of the Shamrock 163 Spectrograph is 3.5 kg [7.71 lb].

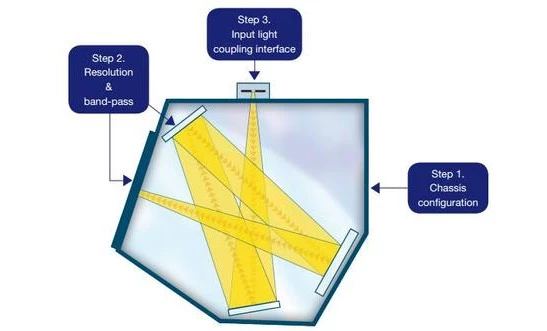

You can customize the Shamrock 163 Spectrograph by selecting the appropriate chassis configuration, gratings, detector, input light coupling interface, and software interface.
