Description
The Shamrock 163 is a cutting-edge Czerny-Turner spectrograph designed to offer unparalleled performance in a compact form factor. With a focal length of 163 mm and a high F/3.6 aperture, this spectrograph stands out as one of the most compact research-grade options available on the market. Its innovative design includes a wide range of seamlessly interchangeable gratings, slits, and light coupling accessories, making it an ideal tool for general benchtop spectroscopy measurements.
This versatile spectrograph is engineered to meet the demands of both portability and ease of integration. Its compact and rugged design allows for horizontal and vertical mounting positions, ensuring flexibility in various experimental setups. Additionally, the imaging-configurable platform supports multi-track spectroscopy, providing enhanced optimization for low cross-talk and simultaneous acquisition of multi-leg fiber signals.
The Shamrock 163 also features a large choice of light coupling interfaces, including fiber-optics and C-mount microscope couplers, allowing for diverse applications. The calibrated micrometer drive facilitates simple and rapid wavelength adjustment, ensuring precise and efficient operation. Whether you're conducting routine spectroscopy or engaging in complex research, the Shamrock 163 offers a reliable and adaptable solution for a wide range of scientific endeavors.

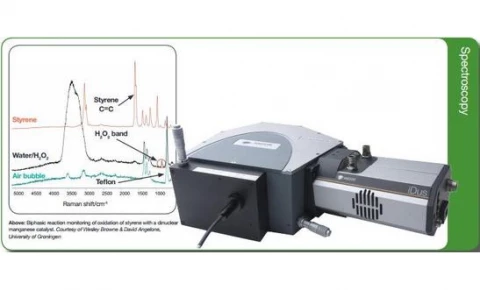

Shamrock 163 Spectrograph -150 lpmm 1250nm Blaze
Specifications
Monochromator Type: | Czerny-Turner |
---|---|
Effective Focal Length: | 163 mm |
Diffraction Grating: | 150 lines/mm |
Grating Blaze Wavelength: | 1250 nm |
Spectral Range: | 400 – 2300 nm |
Linear Dispersion (Avg): | 37.94 nm/mm |
Spectral Resolution (Avg): | 2.28 nm |
Features
- Compact & Rugged Design: The Shamrock 163 features a compact and robust design with both horizontal and vertical mounting positions, ensuring portability and ease of integration.
- Imaging-Configurable Platform: Ideal for multi-track spectroscopy, this platform allows for lens-based accessories to optimize system performance for low cross-talk and simultaneous acquisition of multi-leg fiber signals.
- Interchangeable Gratings: Offers a wide range of interchangeable gratings with a simple precision locking mechanism, allowing for seamless upgrades.
- Variety of Fixed Slits: Features interchangeable laser-cut precision slits with widths ranging from 10 µm to 200 μm.
- Large Choice of Light Coupling Interfaces: Includes options for fiber-optics and C-mount microscope couplers, enhancing versatility in applications.
- Calibrated Micrometer Drive: Facilitates simple and rapid wavelength adjustment for precise selection.
Applications
- General Spectroscopy: Ideal for benchtop spectroscopy measurements with its compact and versatile design.
- Multi-Track Spectroscopy: Imaging-configurable platform allows for low cross-talk, multi-leg fiber signal simultaneous acquisition.
- Raman Spectroscopy: Suitable for applications requiring high resolution and precise wavelength selection.
- Fluorescence Spectroscopy: Compatible with a variety of light coupling interfaces, including fiber-optics and C-mount microscope couplers.
- Customizable Research Applications: Wide range of interchangeable gratings and slits for tailored research requirements.
- Educational Use: Compact design and ease of integration make it a great tool for educational purposes in spectroscopy.
- Industrial Applications: Rugged and portable design suitable for various industrial spectroscopy needs.
Frequently Asked Questions
What is the focal length of the Shamrock 163 Spectrograph?
What is the aperture of the Shamrock 163 Spectrograph?
What kind of gratings can be used with the Shamrock 163 Spectrograph?
What kind of light coupling interfaces are included with the Shamrock 163 Spectrograph?
How can the wavelength selection be adjusted on the Shamrock 163 Spectrograph?
