Right-Angle Prisms

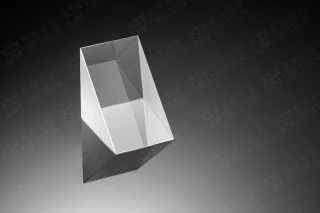

The Right Angle Prism is a fundamental optical component utilized for redirecting the optical path by 90 degrees. Depending on the azimuth of the prism, it can produce various imaging configurations, including consistent left-right and top-bottom orientations or differing left-right orientations while maintaining consistent ...

Specifications

Material: BK7, UVFS

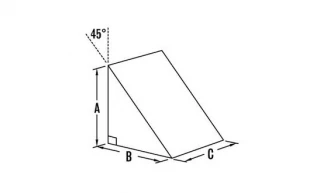

Dimensions (A): 1-50 mm
Dimensions (B): 1-50 mm
Dimensions (C): 1.41-70.71 mm
Data Sheet

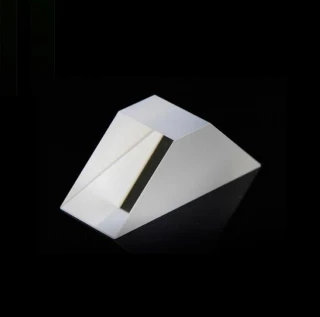

We offer sapphire prisms: right angular prisms corner cubes dove prisms penta prisms

Specifications

Material: Custom
Dimensions (A): 2-200 mm
Dimensions (B): 2-200 mm
Dimensions (C): 2-200 mm
Surface Quality: SD 10-20 MIL-PRF-13830B
...
Data Sheet
Right-angle prism deflects incident light by 90° or 180°. When light is incident from one right-angle side of the prism, the light will undergo total internal reflection at the glass/air interface of the beveled side and exit from the other right-angle side. When the light beam is incident from an oblique plane, the beam will ...

Specifications

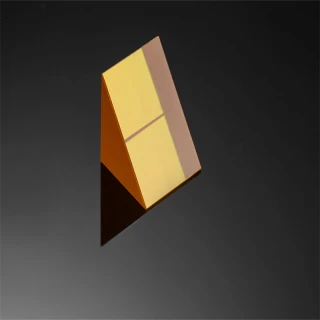

Material: CaF2
Dimensions (A): 5-50 mm
Dimensions (B): 7.07-70.7 mm
Dimensions (C): - mm
Data Sheet
The Right Angle Prism is the most commonly used prism, designed to redirect a beam of light at a 90-degree angle from the incident direction or used as a 180-degree beam retro-reflector. These prisms are often coated with various optical coatings to form cubic beam splitters and color separation cubes, commonly used in various ...

Specifications

Material: BK7
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Optics Parallel Error: <10 mm
...
Data Sheet
Experience unparalleled optical clarity with Meller Optics' Sapphire Prisms. Crafted with precision-cut synthetic sapphire, these prisms offer exceptional durability, heat resistance, and scratch-resistant properties. Ideal for use in high-pressure and high-temperature environments, these prisms are perfect for industrial, military, ...

Specifications

Material: Other
Dimensions (A): 6.35 mm
Dimensions (B): 3.17 mm
Dimensions (C): -- mm
Configuration: Prism, right angle
...
Data Sheet

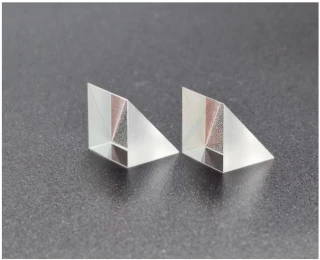

Right Angle Prism can be used to bend a beam by 90° or 180°, depending on which face is entrance face. Please refer to following image to see how it works. Crysmit can provide right angle prisms from 0.5mm to 50.8mm size. Special size can also be offered upon request.

Specifications

Material: BK7
Dimensions (A): 10 mm
Dimensions (B): 10 mm
Dimensions (C): 10 mm
Data Sheet
Bluebel Industries Prisms
Bluebell Industries Ltd
Our range of high quality glass prisms are manufactured to exacting standards resulting in a product that is accurate to your desired specification.Whether you’re looking for moulded prisms or fully ground and polished prisms, we are confident that our products will meet your requirements perfectly.A wide range of specialist coatings ...

Specifications

Material: BK7, FS, UVFS
Dimensions (A): Custom mm
Dimensions (B): Custom mm
Dimensions (C): Custom mm
Data Sheet
PPD Prisms
Perkins Precision Developments
Perkins Precision Developments (PPD) manufactures custom, high-precision prisms and prism assemblies of all shapes and sizes and in a variety of materials including fused silica, fused quartz, N-BK7, YAG, CaF2, ZnSe, SF11 and other high index glasses.  Prisms are available uncoated or coated with our low-loss, high energy IBS ...

Specifications

Material: BK7, FS, UVFS, IRFS, F2, N-SF11, ZnSe, Other
Dimensions (A): 2 mm
Dimensions (B): 2 mm
Dimensions (C): 2 mm
Data Sheet
Gurley Right-Angle Prisms
Gurley Precision Instruments
In addition to our Optographics capabilities, Gurley offers a wide variety of high quality optical materials and optical components, at prices that are second to none.GPI has the ability to supply standard, precision and custom designed components that may be fabricated from fused silica, crystal quartz, optical crystals, acrylics ...

Specifications

Material: BK7, FS
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Optica Right Angle Prism
Optics India
This is used as a Mirror to deviate light through 90 degree and also as retro reflector to deflect light through 180 degree by total internal reflection.

Specifications

Material: BK7, FS, UVFS, Custom
Dimensions (A): custom mm
Dimensions (B): custom mm
Dimensions (C): custom mm
Data Sheet
Tecnottica Right Prisms
Tecnottica Consonni
Right prisms are dispersive optical elements constituted by a 90° angle and two 45° angles. These prisms are commonly used to deflect to 90° a beam entering into the first catheter and taking it out from the second one through a reflection over the hypotenuse. If you wish to exit the light from the same surface on which it has ...

Specifications

Material: BK7, FS, UVFS, Other
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Rainbow Research Optics Right Angle Folding Prisms
Rainbow Research Optics
Rainbow Research Optics Right Angle Folding Prisms.

Specifications

Material: BK7, UVFS, SF2
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Data Sheet
Rainbow Research Optics Right Angle Bending Prisms
Rainbow Research Optics
Rainbow Research Optics Right Angle Bending Prisms.

Specifications

Material: BK7, UVFS, SF2
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Data Sheet
Rainbow Research Optics Right Angle Prisms
Rainbow Research Optics
Rainbow Research Optics Right Angle Prisms.

Specifications

Material: BK7, UVFS, SF2
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Data Sheet
Precision Glass and Optics Right Angle Prisms
Precision Glass and Optics
Commonly used to create a 90° bend in the light path, these prisms present images two ways depending on their orientation. In the first, images will be inverted but positioned correctly left to right. Rotate the prism 90°, and images will be right side up, but transposed horizontally. Several right angle prisms can be combined to ...

Specifications

Material: BK7, FS, Other
Dimensions (A): -- mm
Dimensions (B): -- mm
Dimensions (C): -- mm
Data Sheet
N-BK7 Right Angle Prisms
FOCTek Photonics
N-BK7 Right Angle Prisms manufactured in our state-of-the-art production facility. These right angle prisms are used in various applications, from laser optics to industrial and medical.

Specifications

Material: BK7, Other
Dimensions (A): 1.0 mm
Dimensions (B): 1.0 mm
Dimensions (C): 1.0 mm
Data Sheet
Porro Prism / Right Angle Prism
Precision Optical
Right angle prisms are extremely versatile optical components, commonly used as individual prisms and components of optical assemblies. A beam of light entering the leg of a right angle prism will deviate by a nominal value of 90°, while precise rotation of the prism controls beam alignment. When light enters the hypotenuse of the ...

Specifications

Material: BK7, FS, Custom
Dimensions (A): 6.4 mm
Dimensions (B): 6.4 mm
Dimensions (C): -- mm
Data Sheet
Prism: A prism is the optical components with high precision polished surfaces. At least two of the flat surfaces have an angle between them. Mainly used for break light up like dispersive or beamsplitter. Or used for light reflection. Even some parts can glued together for a certain light transmission or reflective purpose. PHYO ...

Specifications

Material: BK7, UVFS, N-SF11, Custom
Dimensions (A): 25 mm
Dimensions (B): 25 mm
Dimensions (C): 25 mm
Coating: HR, AR, Beamsplitter
...
Data Sheet
A Right Angle Prism is used to turn or deflect a beam through 90° or 180°. In either case this is achieved by total internal reflection and produces a very efficient broadband reflector. It is important that the incoming beam is collimated and enters the prism at a normal angle of incidence. This is so that total internal ...

Specifications

Material: BK7, FS
Dimensions (A): 25.4 mm
Dimensions (B): 25.4 mm
Dimensions (C): 25.4 mm
Data Sheet
A Right Angle Prism is used to turn or deflect a beam through 90° or 180°. In either case this is achieved by total internal reflection and produces a very efficient broadband reflector. It is important that the incoming beam is collimated and enters the prism at a normal angle of incidence. This is so that total internal ...

Specifications

Material: BK7, FS
Dimensions (A): 12.7 mm
Dimensions (B): 12.7 mm
Dimensions (C): 12.7 mm
Data Sheet
A Right Angle Prism is used to turn or deflect a beam through 90° or 180°. In either case this is achieved by total internal reflection and produces a very efficient broadband reflector. It is important that the incoming beam is collimated and enters the prism at a normal angle of incidence. This is so that total internal ...

Specifications

Material: BK7, FS
Dimensions (A): 25.4 mm
Dimensions (B): 25.4 mm
Dimensions (C): 25.4 mm
Data Sheet
A Right Angle Prism is used to turn or deflect a beam through 90° or 180°. In either case this is achieved by total internal reflection and produces a very efficient broadband reflector. It is important that the incoming beam is collimated and enters the prism at a normal angle of incidence. This is so that total internal reflection ...

Specifications

Material: BK7, FS
Dimensions (A): 12.7 mm
Dimensions (B): 12.7 mm
Dimensions (C): 12.7 mm
Data Sheet
Right Angle Prism can be used to bend a beam by 90deg or 180deg, depending on which face is entrance face. Please refer to following image to see how it works. Now Union Optic can provide right angle prisms from 0.5mm to 50.8mm size. Special size can also be offered upon request.

Specifications

Material: BK7, FS, UVFS, Other
Dimensions (A): 10 mm
Dimensions (B): 10 mm
Dimensions (C): 10 mm
Data Sheet
Right-Angle Prisms can be used to deviate a light path by 90° or 180°, depending on which surface is used as the input for the light source. These prisms are fabricated from N-BK7, UV fused silica, N-SF11 etc They can be AR coated or metal coated.

Specifications

Material: BK7, FS, UVFS, N-SF11, Ge
Dimensions (A): 12.7 mm
Dimensions (B): 12.7 mm
Dimensions (C): 12.7 mm
Angle Tolerance: 10 arc Sec
Data Sheet
Right Angle Prisms are well suited for beam deviation and retro-reflection. They are often preferable to plane mirrors, because they are easier to mount and align. High throughput is attained when the hypotenuse is used in total internal reflection (TIR), and the entrance and exit surfaces are anti-reflection coated. An incident beam ...

Specifications

Material: CaF2
Dimensions (A): - mm
Dimensions (B): - mm
Dimensions (C): - mm
Dimensions: Custom
...
Data Sheet
There are 30 different Right-Angle Prisms from suppliers and manufacturers listed in this category. In just a few clicks you can compare different Right-Angle Prisms with each other and get an accurate quote based on your needs and specifications. Please note that the prices of Right-Angle Prisms vary significantly for different products based on various factors including technical parameters, features, brand name, etc. Please contact suppliers directly to inquire about the details and accurate pricing information for any product model. Simply navigate to the product page of interest and use the orange button to directly reach out to the respective supplier with one click.

Did You know?

Right-angle prisms were named for their classic 45˚-45˚-90˚ triangle shape. This unique geometry is a key reason why they are the most common and versatile prisms used in experimental physics today. While they have a variety of applications, right-angle prisms are most commonly used as a convenient and cost-effective way to change the direction of a beam of light. Depending upon the direction at which incident light rays enter the prism, their path can be rotated by 45, 90, or 180 degrees. As a result, right-angle prisms are often a component of a variety of optical devices, such as in periscopes and microscopes.
