Description

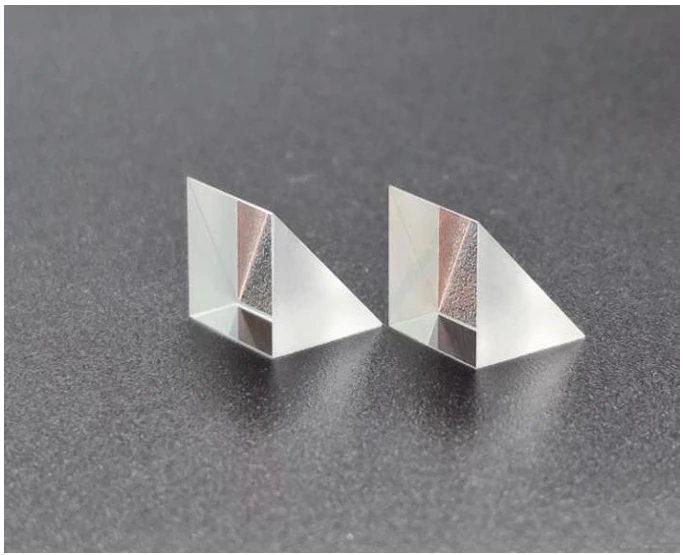

LaserOptics Prisms by CRYSTECH are meticulously crafted to meet the high precision demands of solid-state laser systems. With over 20 years of experience in prism manufacturing, design, and coating, CRYSTECH has established itself as a leader in the optical components industry. Each prism is designed with a specific geometry to invert, rotate, deviate, or displace a beam, making them essential components in various optical systems.

Our prisms are available in materials suitable for visible to infrared wavelengths, offering a wide range of customizable shapes and sizes to meet specific customer requirements. The diameter of our prisms ranges from 1mm to 100mm, with a clear aperture greater than 90%, ensuring optimal performance. The surface quality is maintained at an exceptional 10/5, and the flatness is measured at L/4@633nm, providing precision and reliability in every piece.

CRYSTECH prisms are built to withstand high damage thresholds, making them durable for demanding applications. We offer standard coatings and can customize them according to customer needs, ensuring that each product is perfectly suited to its intended use. Whether you need a right-angle prism for beam deviation or a Dove prism for image rotation, CRYSTECH provides high-quality solutions that enhance the performance of optical systems.

High-Precision Laser Prisms: Customizable, Durable, and Versatile

Specifications

Material: BK7, FS, UVFS, IRFS, CaF2, F2, N-SF11, ZnSe, Ge, SF2
Max Dimensions (A): 10 mm
Max Dimensions (B): 10 mm
Max Dimensions (C): 14 mm
Diameter: 1-100 mm
Clear Aperture: >90%
Flatness: L/4@633nm
Surface Quality: 10/5
Angle Tolerance: <15″

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Wide Range of Materials: Available in materials suitable for visible to infrared wavelengths.
  • Customizable Design: Shape and size can be customized to meet specific requirements.
  • Versatile Diameter: Options ranging from 1-100mm to suit various applications.
  • High Clear Aperture: Greater than 90% for maximum light transmission.
  • Precision Flatness: Flatness of L/4 at 633nm ensures high-quality optical performance.
  • Superior Surface Quality: Rated at 10/5 for excellent surface finish.
  • Accurate Angle Tolerance: Less than 15 seconds for precise beam manipulation.
  • High Damage Threshold: Durable under high-intensity laser applications.
  • Flexible Coating Options: Standard coatings available or customizable according to customer needs.

Applications

  • Laser optics
  • Spectroscopy
  • Imaging
  • Metrology

Frequently Asked Questions

What materials are available for the prisms?
The prisms are available in materials that cover the visible to infrared wavelength range.
Can the shape and size of the prisms be customized?
Yes, the shape and size of the prisms can be customized according to customer needs.
What is the diameter range for the prisms?
The prisms have a diameter range of 1-100mm.
What is the clear aperture of the prisms?
The clear aperture of the prisms is greater than 90%.
What are the main applications of right-angle prisms?
Right-angle prisms are used to deviate or deflect a beam of light by 90° or 180°, and are often used in telescopes, periscopes, and other optical systems.
What are the applications of Dove prisms?
Dove prisms are mainly used as rotators, where rotating the prism about the input parallel ray rotates the image through twice the angle. They can also be used as retroreflectors.
What is the surface quality of the prisms?
The surface quality of the prisms is 10/5.
