Corner cube retro-reflectors reflect an image or beam back toward its original direction via three total internal reflections (TIR). The beam or image will be inverted and reflected through 180° even if the angle of incidence is not zero. The insensitivity of the alignment of these prisms make them ideal retroreflecting optics. ...
  • Material: BK7, Sapphire, Ge, ZnSe, N-SF11, F2, CaF2, IRFS, UVFS, FS, Other
  • Length: custom mm
  • Diameter: custom mm
  • Height: custom mm
  • Thickness: custom mm
  • ...
Data Sheet
AWI Corner Cube Lens
AWI Industries
Corner Cubes, also known as Corner Cube Reflectors, Trihedral Retro-reflectors, Trihedral Prisms, or Corner Cube Retro-reflectors, are most commonly used for alignment because light is always reflected back towards the source.
  • Material: BK7
  • Length: Custom mm
  • Diameter: 7.16 mm
  • Height: Custom mm
  • Thickness: Custom mm
  • ...
Data Sheet
Optica Corner Cube Retro Reflector
Optics India
Corner Cube Retro Reflector are used to reflect light beam back to the direction that it comes from. The reflected beam is always parallel to to the incident beam, and it travels in the reverse direction of the incident beam. This hold true regardless of the angle of incident beam. The beam reflection is achieved either through total ...
  • Material: BK7, FS, UVFS
  • Length: custom mm
  • Diameter: custom mm
  • Height: custom mm
  • Thickness: custom mm
  • ...
Data Sheet
Corner Cubes / Solid Retro Reflectors (CCP)
Lambda Research Optics
Corner cubes are excellent retro-reflectors. They return an incoming beam in the opposite direction along the same path. They produce a two dimensional 180° beam deviation making them useful for alignment purposes. These prisms are manufactured from BK7A or Fused Silica and may be selected to have 2, 5 or 10 arc sec angular deviation ...
  • Material: BK7, UVFS
  • Length: -- mm
  • Diameter: -- mm
  • Height: 5.0 mm
  • Thickness: -- mm
  • ...
Data Sheet
Corner Cube Retroreflector
Precision Optical
A corner cube, also known as a retroreflector, is an optical component with the unique ability to return an incoming beam of light directly towards its point of origin regardless of the beam’s angle of entry. This property makes this prism type ideal for a wide variety of applications, such as laser resonator cavities, land ...
  • Material: BK7, FS
  • Length: 2.5 mm
  • Diameter: 3 mm
  • Height: 3 mm
  • Thickness: 3 mm
  • ...
Data Sheet
Hemispherical Prism made form IR Grade sapphire Diameter 25.4mm+/-0.01mm Radius    12.7mm+/-0.005mm Thickness 12.7mm+/-0.05mm Surfave Quality S/D-60/40 Per MIL-PRF-13830B Chamfers: no chamfers
  • Material: Sapphire
  • Length: - mm
  • Diameter: 25.4 mm
  • Height: 12.7 mm
  • Thickness: 12.7 mm
  • ...
Data Sheet
Retroreflectors are trihedral prisms, Commonly referred to as corner cubes, the prisms most sold available in three different sizes (Ø10.0 mm, Ø25.4 mm, or Ø50.0 mm). Retroreflectors reflect an image or beam back toward its original direction via three total internal reflections (TIR). The beam or image will be inverted and reflected ...
  • Material: BK7, FS, UVFS, Ge
  • Length: 0 mm
  • Diameter: 25.4 mm
  • Height: 19.0 mm
  • Thickness: 10 mm
  • ...
Data Sheet
Corner Cube Reflectors
Crysmit Photonics CO.,Ltd
Corner Cube Retro Reflector operates on the principle of Total Internal Reflection (TIR). An incident beam will be reflected parallel to itself by the three roof surfaces. The reflection is insensitive to the incident angle, even when the incident beam enters the prism off normal axis, there will still be a strict 180deg reflection.
  • Material: UVFS
  • Length: 50 mm
  • Diameter: 50 mm
  • Height: 10 mm
  • Thickness: 5 mm
  • ...
Data Sheet

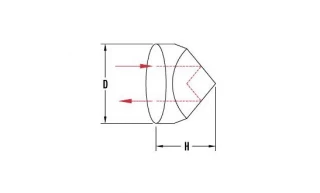

Corner Cube Retro-Reflectors operate on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance / exit surface parallel to itself. This property is independent of orientation of the retro-reflector, within acceptance angle ...
  • Material: CaF2
  • Length: - mm
  • Diameter: - mm
  • Height: - mm
  • Thickness: - mm
  • ...
Data Sheet
RMI Corner Cube Retro-Reflectors
Rocky Mountain Instrument Co.
Corner Cube Retro-Reflectors operate on the principle of total internal reflection (TIR). A beam entering the effective aperture is reflected by the three roof surfaces and emerges from the entrance / exit surface parallel to itself. This property is independent of orientation of the retro-reflector, within acceptance angle ...
  • Material: BK7, FS, UVFS
  • Length: - mm
  • Diameter: - mm
  • Height: - mm
  • Thickness: - mm
  • ...
Data Sheet
Reftroreflector prisms by STANDA. Right-angle prisms - retroreflectors are often preferable to an inclined mirror in applications involving severe acoustic or inertial loads, because they are easier to mount, and deform much less than mirror in response to external mechanical stress.As long as acceptance angle limitations for TIR ...
  • Material: BK7
  • Length: 35 mm
  • Diameter: - mm
  • Height: 10 mm
  • Thickness: 5 mm
  • ...
Data Sheet
Reftroreflector prisms by STANDA. Right-angle prisms - retroreflectors are often preferable to an inclined mirror in applications involving severe acoustic or inertial loads, because they are easier to mount, and deform much less than mirror in response to external mechanical stress.As long as acceptance angle limitations for TIR ...
  • Material: BK7
  • Length: 25 mm
  • Diameter: - mm
  • Height: 10 mm
  • Thickness: 4 mm
  • ...
Data Sheet
Reftroreflector prisms by STANDA. Right-angle prisms - retroreflectors are often preferable to an inclined mirror in applications involving severe acoustic or inertial loads, because they are easier to mount, and deform much less than mirror in response to external mechanical stress.As long as acceptance angle limitations for TIR ...
  • Material: BK7
  • Length: 22 mm
  • Diameter: - mm
  • Height: 16 mm
  • Thickness: 8 mm
  • ...
Data Sheet
Reftroreflector prisms by STANDA. Right-angle prisms - retroreflectors are often preferable to an inclined mirror in applications involving severe acoustic or inertial loads, because they are easier to mount, and deform much less than mirror in response to external mechanical stress.As long as acceptance angle limitations for TIR ...
  • Material: BK7
  • Length: 18 mm
  • Diameter: - mm
  • Height: 8 mm
  • Thickness: 4 mm
  • ...
Data Sheet
Retroreflector prisms by STANDA.BK7 or UVFS Corner cube retroreflectors designed to deviate incident light by 180 degrees independently of an angle of incidence. These prisms have 3 mirror surfaces making angles of 90 deg to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All ...
  • Material: UVFS
  • Length: 19.0 mm
  • Diameter: 25.4 mm
  • Height: 19.0 mm
  • Thickness: 19.0 mm
  • ...
Data Sheet
Retroreflector prisms by STANDA.BK7 or UVFS Corner cube retroreflectors designed to deviate incident light by 180 degrees independently of an angle of incidence. These prisms have 3 mirror surfaces making angles of 90 deg to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All ...
  • Material: BK7
  • Length: 28.5 mm
  • Diameter: 38.1 mm
  • Height: 28.5 mm
  • Thickness: 28.5 mm
  • ...
Data Sheet
Retroreflector prisms by STANDA.BK7 or UVFS Corner cube retroreflectors designed to deviate incident light by 180 degrees independently of an angle of incidence. These prisms have 3 mirror surfaces making angles of 90 deg to each other, juxtaposed to form the corner of a cube with the entrance face perpendicular to cube diagonal. All ...
  • Material: BK7, UVFS
  • Length: NA mm
  • Diameter: 25.4 mm
  • Height: 19 mm
  • Thickness: NA mm
  • ...
Data Sheet
Reftroreflector prisms by STANDA. Right-angle prisms - retroreflectors are often preferable to an inclined mirror in applications involving severe acoustic or inertial loads, because they are easier to mount, and deform much less than mirror in response to external mechanical stress.As long as acceptance angle limitations for TIR ...
  • Material: BK7
  • Length: 16 mm
  • Diameter: NA mm
  • Height: 10 mm
  • Thickness: 5 mm
  • ...
Data Sheet

Did You know?

There are several different types of retroreflectors such as Corner Cube, Cat’s Eye, Phase Conjugate Mirror, etc. Retroreflectors are used in situations where there is a need to reflect the light back to the source with minimal deflection. Applications include free-space optical communications networks, satellite tracking as well as laser spectroscopy experiments. A key property of the corner-cube reflector is that the entering ray is reflected back with a precisely inverted independent of the angle of incidence.
