Fresnel Prisms

ORAFOL Fresnel Prism PR 727

ORAFOL Fresnel Prism PR 727

The ORAFOL Fresnel Prism PR 727 is a high-precision optical component designed to bend and redirect light efficiently. This lightweight and thin prism leverages Fresnel technology to offer superior optical ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 11 deg
Deflected Angle: 5 deg
Facet Spacing: 0.508 mm
Clear Aperture: 303.7 mm
Prism Length: 303.7 mm
ORAFOL Fresnel Prism PR 709

ORAFOL Fresnel Prism PR 709

The Fresnel Prism PR 709 by ORAFOL Fresnel Optics GmbH is engineered for precise light manipulation and optical applications. Featuring a lightweight and compact design, this prism utilizes advanced Fresnel lens ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 20 deg
Deflected Angle: 10 deg
Facet Spacing: 1.016 mm
Clear Aperture: 216.6 mm
Prism Length: 216.6 mm

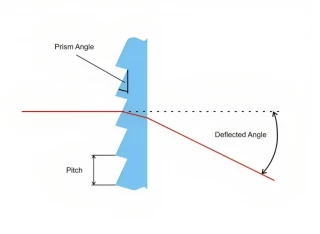

ORAFOL Fresnel Prism PR 723

ORAFOL Fresnel Prism PR 723

The Fresnel Prism PR 723 by ORAFOL Fresnel Optics GmbH is a high-performance optical component designed for a variety of applications in beam manipulation and light distribution. Engineered using advanced materials ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 24 deg
Deflected Angle: 12 deg
Facet Spacing: 0.152 mm
Clear Aperture: 165.2 mm
Prism Length: 165.2 mm
ORAFOL Fresnel Prism PR 675

ORAFOL Fresnel Prism PR 675

The Fresnel Prism PR 675, designed by ORAFOL Fresnel Optics GmbH, is a versatile optical component engineered for precision light manipulation. This high-performance prism utilizes Fresnel’s design principles ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 30 deg
Deflected Angle: 15 deg
Facet Spacing: 0.33 mm
Clear Aperture: 456.5 mm
Prism Length: 456.5 mm
ORAFOL Fresnel Prism PR 729

ORAFOL Fresnel Prism PR 729

The Fresnel Prism PR 729, developed by ORAFOL Fresnel Optics GmbH, is a high-performance optical component designed for precision light control and deviation. Its compact and lightweight structure makes it suitable ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 31 deg
Deflected Angle: 16 deg
Facet Spacing: 0.152 mm
Clear Aperture: 241.7 mm
Prism Length: 241.7 mm
ORAFOL Fresnel Prism PR 712

ORAFOL Fresnel Prism PR 712

The Fresnel Prism PR 712 is a precision-engineered optical component designed for applications requiring light deviation, beam control, and enhanced optical performance. Manufactured by ORAFOL Fresnel Optics GmbH, ...

Sold by: ORAFOL Fresnel Optics Ships from: Germany
Specifications
Prism Angle: 41 deg
Deflected Angle: 23 deg
Facet Spacing: 0.127 mm
Clear Aperture: 147.6 mm
Prism Length: 147.6 mm

Did You Know?

Did you know that Fresnel prisms revolutionize vision correction? Unlike traditional prisms, Fresnel prisms feature a flat, lightweight design that adheres directly to eyeglasses, offering a discreet and comfortable solution for individuals with eye alignment issues. Developed by French physicist Augustin-Jean Fresnel in the 19th century, these prisms effectively redirect light, helping alleviate conditions like double vision and strabismus. Their slim profile eliminates the need for bulky lenses, providing users with enhanced aesthetics and reduced lens thickness. Fresnel prisms have become integral in optometry, offering customizable options for various prescription needs. With their innovative approach to vision correction, these prisms showcase how advancements in optical technology continue to improve the quality of life for individuals facing visual challenges.

Frequently Asked Questions

A Fresnel prism is a flat, lightweight optical device used in eyeglasses to correct vision issues like double vision and strabismus. Unlike traditional prisms, Fresnel prisms have a slim design that adheres directly to eyeglasses, offering a more discreet and comfortable solution for vision correction while minimizing bulkiness.

Fresnel Prisms: Lightweight, Thin, and Efficient Beam Deflectors

Fresnel prisms are a specialized type of optical element designed to achieve beam deflection or image displacement using a thin, lightweight structure. Named after the legendary physicist Augustin-Jean Fresnel, these prisms replicate the function of traditional bulky prisms but with a series of concentric grooves or steps etched onto a flat surface.

Thanks to their unique design, Fresnel prisms offer efficient light bending and image displacement in a compact, cost-effective form, making them ideal for applications where weight, thickness, or space constraints are critical.

How Fresnel Prisms Work

A Fresnel prism replaces the thick, solid glass of a conventional prism with a stepped surface pattern that mimics the angles of a larger prism, but using thin plastic or glass substrates. Each step in the prism acts like a tiny prism facet, bending light slightly. The cumulative effect produces the same angular deviation as a standard prism but with significantly less bulk and weight.

This stepped design enables Fresnel prisms to be much thinner and lighter than traditional prisms while maintaining similar optical performance for beam deflection, image shifting, and dispersion correction.

Applications of Fresnel Prisms

Fresnel prisms are popular in many fields that benefit from lightweight and compact optics:

  • Ophthalmic Devices: Used in vision therapy and eyeglasses to correct double vision by shifting images onto the retina.

  • Display Technology: Employed in head-up displays (HUDs) and augmented reality (AR) optics to bend or shift images within tight spatial constraints.

  • Laser Systems: Provide compact beam steering or deviation without adding bulk to the optical path.

  • Imaging and Projection: Help in image displacement or distortion correction while minimizing added weight.

  • Consumer Electronics: Integrated into devices requiring lightweight optical elements with precise angular deflection.

Advantages and Limitations

Fresnel prisms offer several advantages over traditional prisms:

  • Lightweight and Thin: Ideal for portable or weight-sensitive applications.

  • Cost-Effective Manufacturing: Easier and cheaper to produce, especially in plastic.

  • Customizable: Step height and angles can be tailored to specific deflection angles.

However, due to their stepped structure, Fresnel prisms may introduce diffraction effects and slight image quality degradation compared to solid prisms. They are best suited where minimal thickness and weight outweigh the need for perfect image fidelity.

Choosing Fresnel Prisms on FindLight

At FindLight, explore a variety of Fresnel prisms with different deflection angles, materials, and sizes. Whether you're designing a compact HUD or need a lightweight beam deflector, FindLight connects you with suppliers who can provide detailed specs and custom quotes.

Explore Fresnel Prisms on FindLight

Looking for lightweight optics that deflect beams efficiently in a compact form? Discover Fresnel prisms on FindLight and easily request quotes from trusted vendors, all in one place.
