ORAFOL Fresnel Prism PR 675

Name: ORAFOL Fresnel Prism PR 675
Brand: ORAFOL Fresnel Optics
Availability: InStock

Description

The Fresnel Prism PR 675, designed by ORAFOL Fresnel Optics GmbH, is a versatile optical component engineered for precision light manipulation. This high-performance prism utilizes Fresnel’s design principles to achieve efficient light deviation while maintaining a compact, lightweight structure. Ideal for applications requiring precise light refraction, such as optical imaging systems, laser alignment, and instrumentation, the PR 675 offers high light transmission and minimal optical loss.

Constructed from durable, optical-grade polymers, the Fresnel Prism PR 675 ensures long-lasting performance even in challenging environments. Its compact size makes it perfect for integration into space-constrained systems while delivering consistent optical precision. The prism is compatible with a wide range of wavelengths, including UV, visible, and infrared, making it an ideal solution for various industrial, medical, and scientific applications. With customizable features, such as deviation angles and size, the Fresnel Prism PR 675 can be tailored to meet specific project requirements.

Specifications

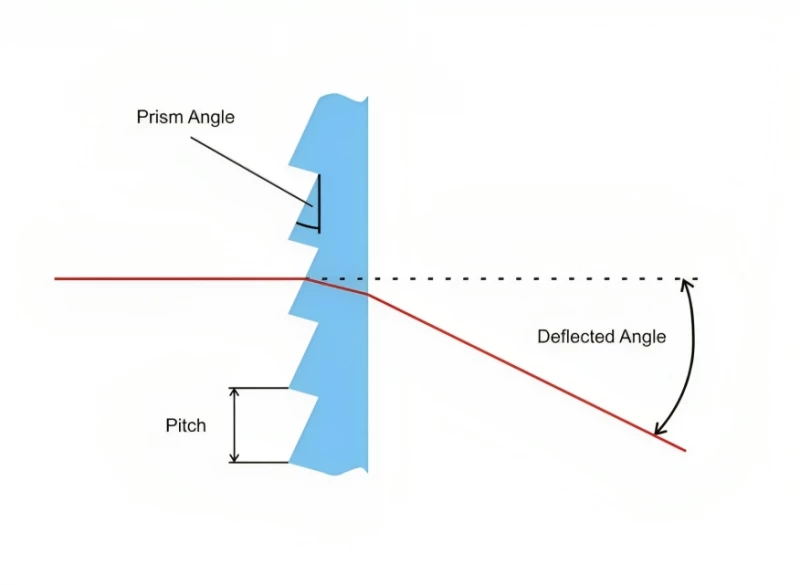

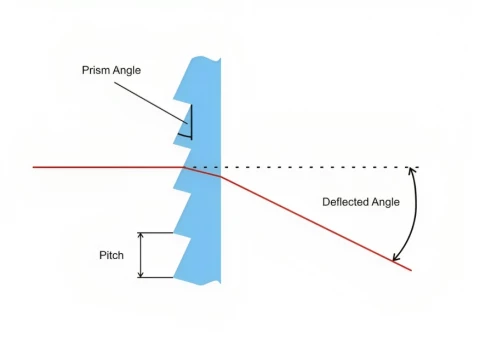

Prism Angle:	30 deg
Deflected Angle:	15 deg
Facet Spacing:	0.33 mm

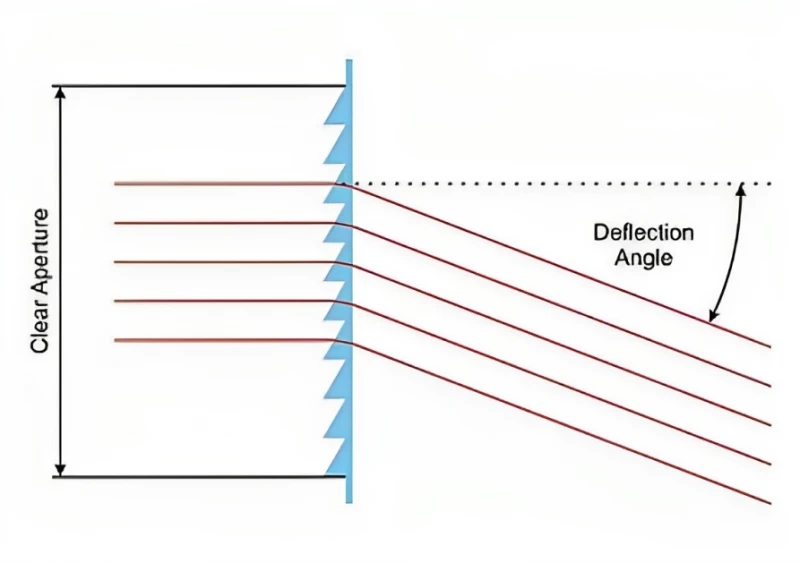

Clear Aperture:	456.5 mm
Prism Length:	456.5 mm
Thickness:	2.5 mm

Download Data Sheet

Features

Advanced Fresnel Prism Technology

Linear Structures with Constant Prism Angle

Optimal Deflection of Parallel Light

Diverse Visual Design Options

High-Quality, Cost-Effective Optical Solutions

Applications

Optical Devices in Automotive

Lighting Systems

Projection Systems

Surveillance and Security Systems

Custom Optical Configurations

Name

Work Email

Organization (recommended)

Your message to supplier

Get quotes from similar suppliers

Add to Watchlist (My Watchlist)

Ships from:

Germany

Sold by:

ORAFOL Fresnel Optics

On FindLight:

since 2020

Got Questions? Ask Above ▲

Message the supplier directly
No signup or account needed
No FindLight fees or markups
Expect a fast reply

Frequently Asked Questions

What is the main material used for the Fresnel Prism PR 675?

The Fresnel Prism PR 675 is made from optical-grade polymer, providing durability and optimal light transmission.

What wavelength ranges is the prism compatible with?

The PR 675 is compatible with UV, visible, and infrared wavelengths, making it versatile for various optical applications.

Can the angle of deviation be customized?

Yes, the angle of deviation for the Fresnel Prism PR 675 can be tailored to meet specific project requirements.

How much light transmission does the PR 675 offer?

The Fresnel Prism PR 675 achieves up to 95% light transmission, ensuring minimal optical loss in systems where it is integrated.

Is the prism suitable for compact systems?

Yes, the lightweight and compact design makes it ideal for space-constrained applications without compromising performance.

What types of applications is the Fresnel Prism PR 675 commonly used in?

It is commonly used in imaging systems, laser alignment, and optical instrumentation that require precise light redirection.

Can the dimensions of the prism be customized?

Yes, the Fresnel Prism PR 675 is available in customizable dimensions to fit specific system requirements.

What is the operating temperature range for the Fresnel Prism PR 675?

The prism operates efficiently in temperatures ranging from -20°C to +80°C.

What are the durability features of this prism?

The PR 675 is designed with optical-grade polymers, providing durability and resistance to environmental factors, ensuring long-lasting performance.

How is the Fresnel Prism PR 675 different from traditional prisms?

The Fresnel design offers a compact, lightweight structure while maintaining high precision and efficient light deviation, which traditional prisms may not achieve.
