Description

The Fresnel Prism PR 729, developed by ORAFOL Fresnel Optics GmbH, is a high-performance optical component designed for precision light control and deviation. Its compact and lightweight structure makes it suitable for applications where space constraints are critical. Constructed using high-quality optical polymers, this prism offers superior durability while maintaining high optical clarity and transmission efficiency. The Fresnel Prism PR 729 is optimized for use across a broad wavelength spectrum, from ultraviolet (UV) to infrared (IR), making it versatile for various industrial, commercial, and scientific applications.

Engineered for beam steering and redirection, the Fresnel Prism PR 729 is ideal for use in imaging systems, laser optics, and illumination setups, where precise light manipulation is essential. Its excellent light transmission, up to 95%, ensures minimal energy loss during beam deviation, making it a critical component for high-performance optical systems. Furthermore, it offers exceptional environmental stability, operating reliably under a wide range of temperatures and conditions.

The PR 729 can also be customized to meet specific requirements, such as different sizes, angles of deviation, and wavelength compatibility, making it an adaptable solution for a wide range of optical configurations.

ORAFOL Fresnel Prism PR 729

Specifications

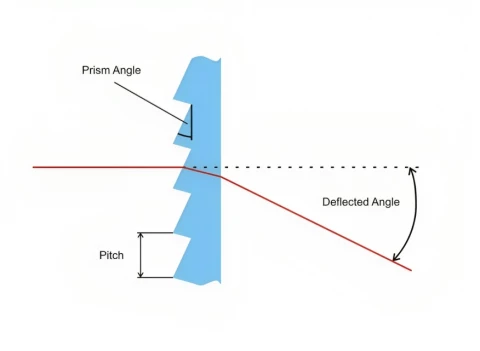

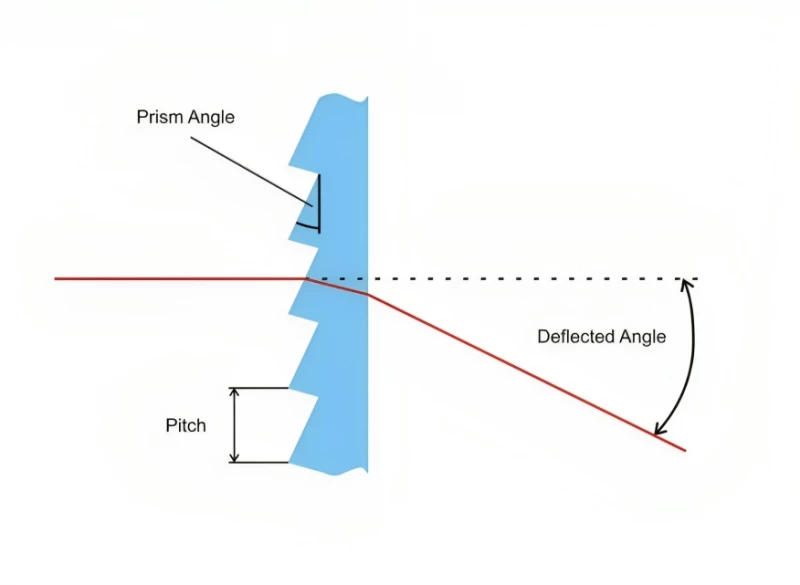

Prism Angle: 31 deg
Deflected Angle: 16 deg
Facet Spacing: 0.152 mm

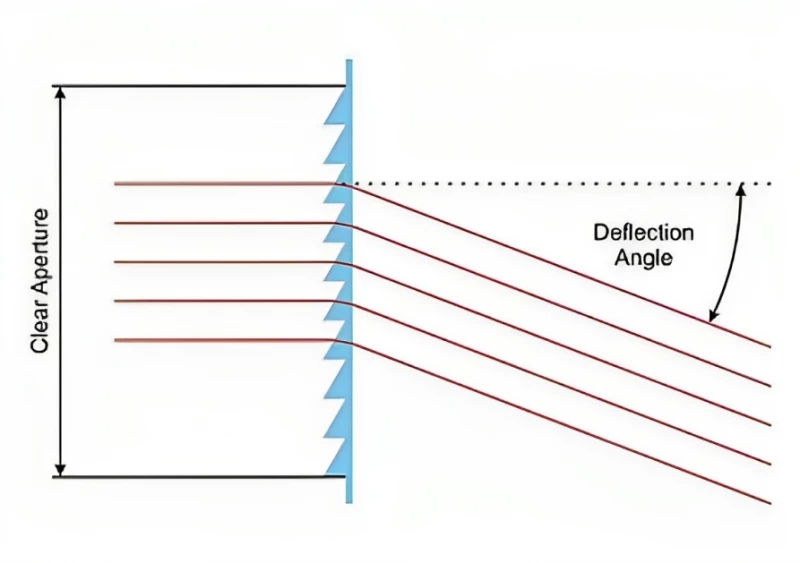

Clear Aperture: 241.7 mm
Prism Length: 241.7 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Fresnel Prism Technology
  • Linear Structures with Constant Prism Angle
  • Optimal Deflection of Parallel Light
  • Diverse Visual Design Options
  • High-Quality, Cost-Effective Optical Solutions

Applications

  • Optical Devices in Automotive
  • Lighting Systems
  • Projection Systems
  • Surveillance and Security Systems
  • Custom Optical Configurations

Frequently Asked Questions

What is the light transmission efficiency?
The Fresnel Prism PR 729 offers up to 95% light transmission efficiency, ensuring minimal signal loss.
What materials is the prism made from?
It is constructed from high-quality optical-grade polymers that ensure durability and long-lasting performance.
What wavelengths is the prism compatible with?
The PR 729 is compatible with UV, visible, and infrared (IR) wavelengths, making it suitable for various optical applications.
Can this prism be customized?
Yes, the Fresnel Prism PR 729 can be customized in terms of size, angle of deviation, and wavelength compatibility to meet specific requirements.
What is the operating temperature range?
The prism operates reliably within a temperature range of -20°C to +80°C.
What are common applications for this prism?
It is commonly used in imaging systems, laser optics, illumination systems, and optical instrumentation.
Is the prism suitable for space-constrained environments?
Yes, its compact and lightweight design makes it ideal for use in applications with limited space.
How durable is the prism?
The optical-grade polymer construction ensures that the prism is both durable and resistant to environmental factors.
Can the Fresnel Prism PR 729 handle high-intensity lasers?
Yes, the prism is designed to be used in laser optics, including setups that involve high-intensity beams.
What customization options are available?
You can request different sizes, angles of deviation, and wavelength-specific designs to suit your optical system's needs.

Got more questions? Use the inquiry form to ask the supplier directly.
