Description

The ORAFOL Fresnel Prism PR 727 is a high-precision optical component designed to bend and redirect light efficiently. This lightweight and thin prism leverages Fresnel technology to offer superior optical performance while minimizing material use. Ideal for applications requiring light bending, magnification, or redirection, the PR 727 is commonly used in fields such as solar energy, lighting systems, projection displays, and augmented reality devices.

Engineered for versatility, the PR 727 Fresnel prism offers excellent light transmission, enabling clear and crisp imaging even under challenging environmental conditions. Its durable construction ensures consistent performance over time, making it a reliable choice for both industrial and research applications. The prism is also easy to integrate into complex optical systems, thanks to its thin design and compatibility with various mounting solutions.

Whether used in advanced optical equipment, solar concentrators, or in innovative display technologies, the ORAFOL Fresnel Prism PR 727 provides a powerful solution for bending light with minimal distortion and high precision. It is an ideal component for anyone requiring compact yet highly effective optical devices.

ORAFOL Fresnel Prism PR 727

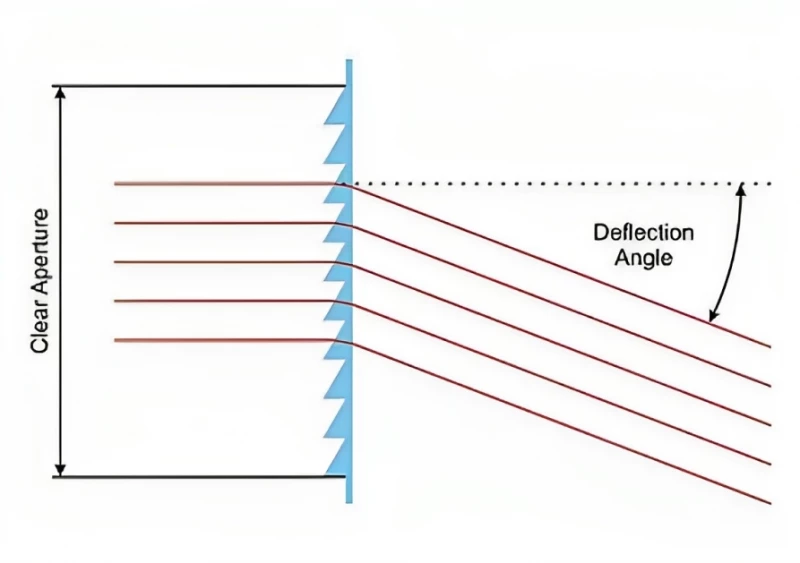

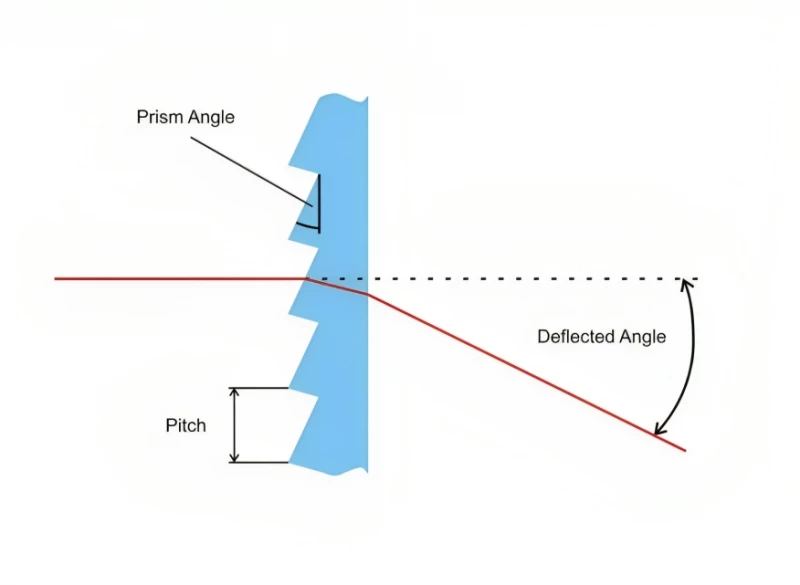

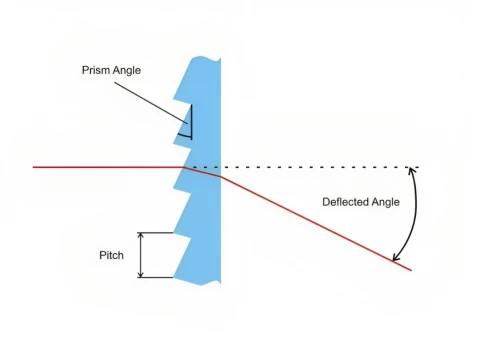

Specifications

Prism Angle: 11 deg
Deflected Angle: 5 deg
Facet Spacing: 0.508 mm
Clear Aperture: 303.7 mm
Prism Length: 303.7 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Fresnel Prism Technology
  • Linear Structures with Constant Prism Angle
  • Optimal Deflection of Parallel Light
  • Diverse Visual Design Options
  • High-Quality, Cost-Effective Optical Solutions

Applications

  • Optical Devices in Automotive
  • Lighting Systems
  • Projection Systems
  • Surveillance and Security Systems
  • Custom Optical Configurations

Frequently Asked Questions

What is the ORAFOL Fresnel Prism PR 727 made of?
The prism is made of optical-grade polymer, designed for high transparency and durability.
How thick is the ORAFOL Fresnel Prism PR 727?
It has a thickness of 1.5 mm, making it lightweight and easy to integrate into systems.
Can the PR 727 be used in outdoor applications?
Yes, the prism is resistant to environmental conditions and operates reliably from -40°C to +85°C.
What is the size of the PR 727 Fresnel prism?
The prism measures 100 mm x 100 mm, offering a compact design for versatile use.
What is the prism angle of the ORAFOL Fresnel Prism PR 727?
The prism has a 90° angle, which is optimized for effective light bending and redirection.
Is the PR 727 compatible with augmented reality devices?
Yes, the PR 727 is suitable for augmented reality applications where precise light manipulation is required.
How much light transmission does the PR 727 offer?
The prism provides over 92% light transmission for clear and efficient optical performance.
Can the PR 727 be used in solar energy systems?
Yes, it is ideal for solar energy applications, enhancing light concentration for improved energy capture.
What is the weight of the ORAFOL Fresnel Prism PR 727?
The prism weighs only 15 grams, contributing to its ease of integration into various optical systems.

Got more questions? Use the inquiry form to ask the supplier directly.
