Dove Prisms

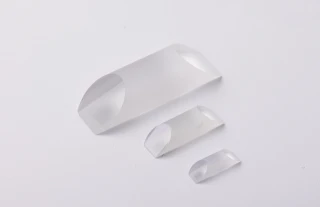

High Quality Optical Glass Dove Prism Image Rotator

High Quality Optical Glass Dove Prism Image Rotator

A Dove prism is a type of optical prism used mainly for image rotation and inversion. When the prism is rotated along its longitudinal axis, the transmitted image rotates at twice the prism’s rotation angle. ...

Sold by: Fuzhou HCT Optics Co.,LTD Ships from: China
Specifications
Material: BK7
Dimension (A): Not Specified
Dimension (B): Not Specified
Dimension (h): Not Specified
Mounting: Unmounted
High Precision Prisms for Solid-State Laser Systems

High Precision Prisms for Solid-State Laser Systems

CRYSTECH is a leading manufacturer dedicated to the production of high-precision prisms for solid-state laser systems. With over 20 years of experience in prism manufacturing, design, and coating, we pride ourselves ...

Sold by: CRYSTECH Inc. Ships from: China
Specifications
Material: BK7, FS, UVFS, IRFS, CaF2, F2, N-SF11, ZnSe, Ge
Dimension (A): 10 mm
Dimension (B): 10 mm
Dimension (h): 14 mm
Mounting: Unmounted
14DOP-1-2 Dove Prisms

14DOP-1-2 Dove Prisms

Dove Prisms are reflective prisms specifically designed for image rotation applications. They are shaped from a truncated right-angle prism, and a beam of light entering one of the sloped faces of the prism ...

Sold by: Altos Photonics, Inc. Ships from: United States
Specifications
Material: UVFS
Dimension (A): 21.1 mm
Dimension (B): 5 mm
Dimension (h): 5 mm
Mounting: Unmounted

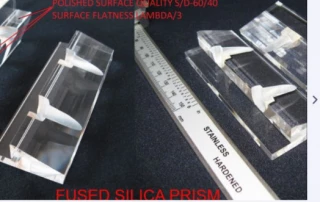

Custom Precision Polished Sapphire Prisms | Ard Optics

Custom Precision Polished Sapphire Prisms | Ard Optics

Elevate your optical solutions with our state-of-the-art Sapphire Prisms, meticulously manufactured to meet the most demanding standards. Our prisms are custom-made from high-quality sapphire and other optical ...

Sold by: ARD-OPTICS Ships from: Armenia
Specifications
Material: BK7, FS, CaF2, Other
Dimension (A): 100 mm
Dimension (B): 100 mm
Dimension (h): 100 mm
Mounting: Unmounted

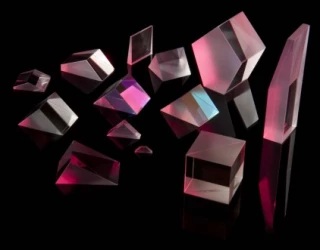

Custom Prisms

Custom Prisms

Precision Glass & Optics (PG&O) offers a wide range of custom-engineered optical prisms designed for critical applications in imaging, laser systems, and beam control. Each prism type is manufactured with ...

Sold by: Precision Glass & Optics (PG&O) Ships from: United States
Specifications
Material: BK7, Other
Dimension (A): 50 mm
Dimension (B): 50 mm
Dimension (h): 50 mm
Mounting: Unmounted
Union Optic Dove Prism

Union Optic Dove Prism

Dove prism is always used to rotate image. If you rotate the prism around a longitudinal axis, the image rotates through twice the angle the prism rotates through. Sometimes, dove prism is also used for 180deg reflection

Sold by: Union Optic Ships from: China
Specifications
Material: BK7, UVFS
Dimension (A): 21.1 mm
Dimension (B): 5 mm
Dimension (h): 5 mm
Mounting: Unmounted
RMI CaF2 Dove Prism

RMI CaF2 Dove Prism

Dove Prisms are an essential component in advanced opto-mechanical systems, renowned for their ability to function as image rotators. These prisms are a specialized form of the right-angle prism and utilize total ...

Sold by: Rocky Mountain Instrument Co. Ships from: United States
Specifications
Material: CaF2
Mounting: Unmounted
Dimensions: Custom
Design Wavelength: 546.1 nm
Dove Prism - BK7-UVFS-FS

Dove Prism - BK7-UVFS-FS

Dove Prisms, offered by Rocky Mountain Instrument Co., are essential components in the realm of optical systems, serving as precise image rotators. These prisms are a truncated form of the right angle prism and ...

Sold by: Rocky Mountain Instrument Co. Ships from: United States
Specifications
Material: BK7, FS, UVFS
Mounting: Unmounted
Dimensions: Custom
Design Wavelength: 546.1 nm
Surface Figure: Lambda/20 @ 633nm

Did You Know?

Named after its inventor, Heinrich Wilhelm Dove, the Dove prism is a type of reflective prism used to invert an image. Dove prisms are shaped from a truncated right-angle prism. When a beam of light passes through the prism, it undergoes total internal reflection. While images passing through the prism will rotate 180 degrees, the image will be inverted, however, not laterally transposed. Additionally, Dove prisms have a unique property - as they are rotated along their longitudinal axis, the resulting transmitted image rotates at twice the rate of the prism. Because of this characteristic, Dove prisms are commonly used in beam rotators, which find applications in fields like interferometry, astronomy, and pattern recognition.

Dove Prisms: Image Rotation with Optical Precision

Dove prisms are uniquely designed optical components used primarily for image rotation and beam alignment in optical systems. Their ability to invert and rotate images without distorting them makes them essential tools in metrology, astronomy, laser scanning, and various imaging applications.

At first glance, Dove prisms resemble a right-angle triangular block with a trapezoidal base. But their power lies in the physics of total internal reflection and a clever optical geometry that allows them to flip an image along one axis, or even rotate it continuously when the prism itself is rotated. This functionality opens up precise control over image orientation and beam direction in compact optical setups.

How Dove Prisms Work

When a collimated light beam enters the prism through one of the slanted faces, it reflects internally off the flat bottom surface and exits through the opposite slanted face. Due to this internal reflection, the image or beam is inverted along one axis. But the real magic happens when the prism is rotated around its longitudinal axis, this causes the image to rotate at twice the angle of the prism’s rotation.

This predictable and precise behavior is incredibly useful for applications that require controlled image manipulation without complex lens systems.

Key optical characteristics include:

  • Image Inversion: A single reflection causes a flip along one axis.

  • Image Rotation: Rotation of the prism results in a 2× rotational effect on the image.

  • Minimal Optical Path Deviation: The exit beam remains parallel to the input beam, simplifying alignment.

Dove prisms are typically made from high-quality optical glass like BK7 or fused silica, and are often AR-coated for maximum transmission efficiency in specific wavelength ranges.

Applications of Dove Prisms

Thanks to their compact form and powerful optical function, Dove prisms are used in a range of systems that benefit from image rotation or beam alignment:

  • Astronomy & Telescopic Systems: Dove prisms are used to rotate or stabilize images captured through telescopes, helping observers align celestial views more effectively.

  • Metrology & Interferometry: In optical metrology setups, Dove prisms help align reference beams or rotate interference patterns for precision measurements.

  • Laser Beam Steering: In laser systems, Dove prisms offer a simple way to rotate the beam orientation, especially in scanning and targeting applications.

  • Microscopy and Imaging Systems: For instruments that require dynamic image adjustment, Dove prisms provide rotational control without affecting focus or magnification.

  • Educational Demonstrations: Dove prisms are frequently used to demonstrate optical principles like reflection, inversion, and image rotation.

Choosing the Right Dove Prism

When selecting a Dove prism, key considerations include material, wavelength compatibility, angular accuracy, and clear aperture. For high-precision applications, look for Dove prisms with tight angular tolerances and high transmission coatings to minimize distortion and maximize performance.

At FindLight, we offer a carefully selected range of Dove prisms from reputable optical manufacturers. Whether you're integrating them into a laser system, a scientific instrument, or an educational setup, you'll find the specs and supplier information you need to make an informed choice.

Explore Dove Prisms on FindLight

Looking to add rotation to your optical toolkit? Browse our catalog of Dove prisms to compare products, access technical specs, and request quotes from trusted vendors, only on FindLight.
