Description

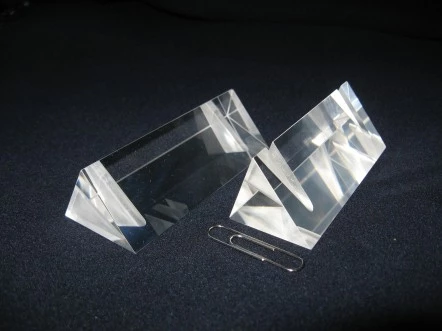

Elevate your optical solutions with our state-of-the-art Sapphire Prisms, meticulously manufactured to meet the most demanding standards. Our prisms are custom-made from high-quality sapphire and other optical materials, ensuring exceptional durability and performance. The surface quality meets the MIL-PRF-13830B standard with an impressive S/D-20/10, the surface flatness is up to lambda/6 at 632nm, and the angular accuracy is up to +/-20 arcsec. These precision polished prisms are perfectly suited for applications in medical devices, science projects, and custom uses. Trust ARD-OPTICS to deliver the best in optical performance through our precision-engineered sapphire prisms.
Custom Precision Polished Sapphire Prisms | Ard Optics
Specifications
| Material: | BK7, FS, CaF2, Other |
|---|---|
| Dimension (A): | 100 mm |
| Dimension (B): | 100 mm |
| Dimension (h): | 100 mm |
| Mounting: | Unmounted |
| Surface Quality: | S/D-20/10 (MIL-PRF-13830B) |
| Surface Flatness: | Lambda/6 @ 632nm |
| Angular Accuracy: | +/- 20 arcsec |
| Linear Dimensions Tolerance: | +/- 0.01 mm |
Download Data Sheet
Features
- Custom-made to customer specifications
- Made from high-quality sapphire and other optical materials
- Exceptional surface quality up to S/D-20/10 according to MIL-PRF-13830B
- Superior surface flatness up to lambda/6 @632nm
- High angular accuracy up to +/-20 arcsec
- Linear dimensions tolerances up to +/-0.01mm
- Unmounted for versatility in applications
Applications
- Medical devices for imaging and diagnostics
- Science projects requiring precise optical components
- Custom use in various optical applications
- High-pressure sensors made from sapphire

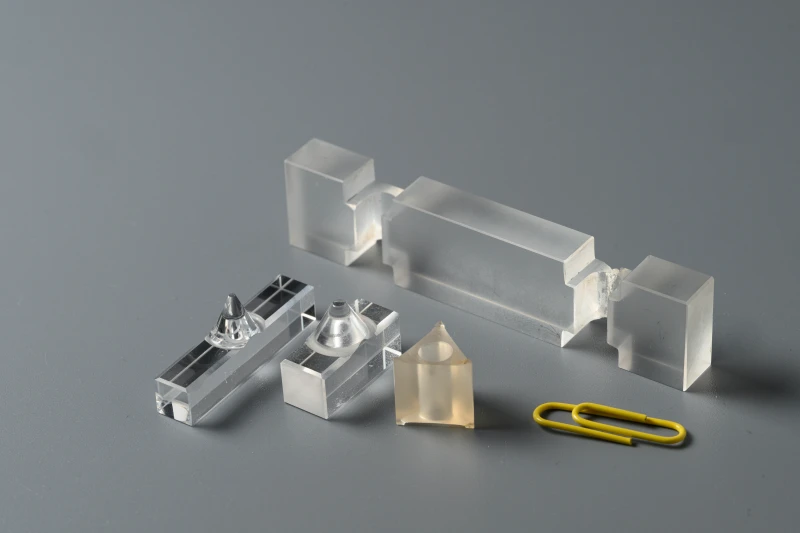

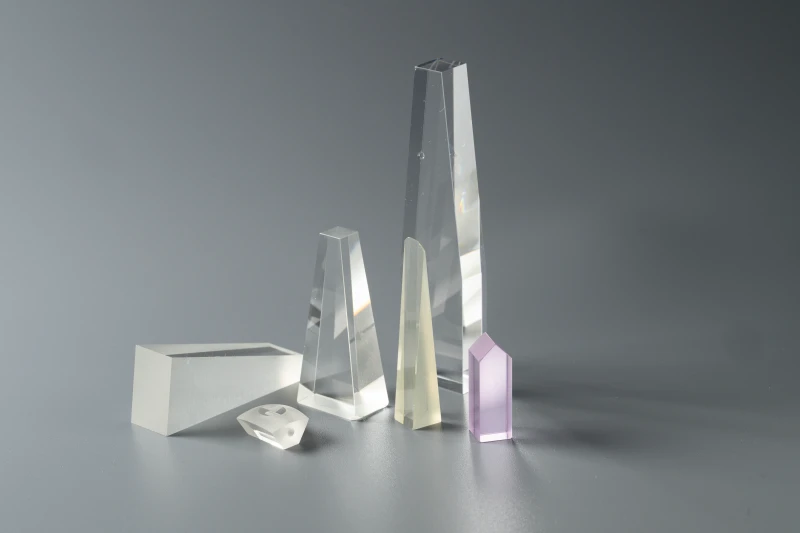

- Manufacturing of products with complicated configurations such as cones, pyramids, cylinders, rods, tubes, prisms, wedges, and axicones
Frequently Asked Questions
What materials are used to make ARD-OPTICS Sapphire Prisms?
ARD-OPTICS Sapphire Prisms are primarily made from high-quality sapphire. Other materials like BK7, FS, and CaF2 are also used depending on customer requirements.
What are the applications of ARD-OPTICS Sapphire Prisms?
These prisms are versatile and can be used in medical devices, science projects, high-pressure sensors, and custom applications that require precision optical components.
Can ARD-OPTICS customize the Sapphire Prisms?

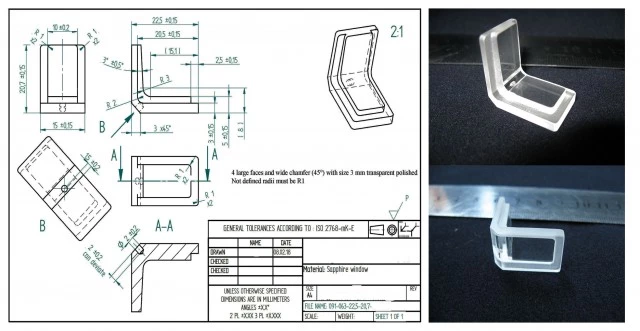

Yes, all sapphire prisms are custom-made according to the customer's design and specifications.
What is the surface quality of these Sapphire Prisms?
The surface quality is up to S/D-20/10 according to the MIL-PRF-13830B standard.
How are ARD-OPTICS Sapphire Prisms mounted?
The Sapphire Prisms are unmounted, offering versatility for integration into various applications.
Can ARD-OPTICS manufacture other optical components?
Yes, besides prisms, ARD-OPTICS also manufactures other optical components such as cones, pyramids, cylinders, rods, tubes, wedges, and axicones with a high degree of flatness.
Are these prisms suitable for high-pressure applications?
Yes, ARD-OPTICS offers high-pressure sensors made from sapphire, which are suitable for applications that require robust and durable optical components.
What are Custom Precision Polished Sapphire Prisms?
Custom Precision Polished Sapphire Prisms are high-quality optical components made from sapphire and other optical materials that are custom-made to customer specifications.
What is the surface quality of these prisms?
The surface quality of these prisms meets the MIL-PRF-13830B standard with an impressive S/D-20/10.
What are the applications of these prisms?
These precision polished prisms are perfectly suited for applications in medical devices, science projects, and custom uses.
What is the angular accuracy of these prisms?
The angular accuracy of these prisms is up to +/-20 arcsec.
What is the manufacturing capability of ARD-OPTICS?
ARD-OPTICS manufactures optical polished items of complicated configuration from sapphire, quartz glass, and other optical materials, in case of requirement with a high degree of flatness.
