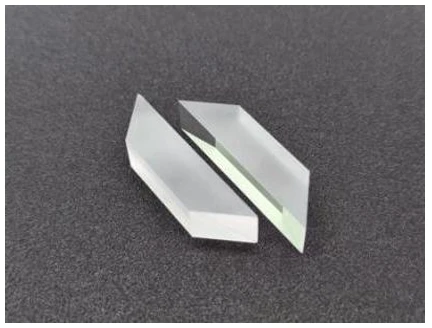

High Precision Prisms for Solid-State Laser Systems
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
China
-
Sold by:
-
On FindLight:
since 2018
Description
CRYSTECH is a leading manufacturer dedicated to the production of high-precision prisms for solid-state laser systems. With over 20 years of experience in prism manufacturing, design, and coating, we pride ourselves on delivering top-quality optical components. Our expertise in crafting prisms ensures optimal performance for various optical applications, where precision and reliability are paramount.
Prisms play a crucial role in manipulating light beams, whether it's inverting, rotating, deviating, or displacing them. Each type of prism is crafted with specific geometries to achieve these effects. Our range includes right-angle prisms, which are essential in optical systems like telescopes and periscopes for their ability to deviate or deflect light beams by 90° or 180°. Additionally, our Dove prisms serve multiple purposes, primarily as rotators, where rotating the prism about an input parallel ray results in the image rotating through twice the angle. They can also function as retroreflectors.
At CRYSTECH, we offer prisms made from materials suitable for visible to infrared wavelengths. Our products are customizable in shape and size, with diameters ranging from 1mm to 100mm. Each prism is crafted to ensure a clear aperture of over 90%, flatness of L/4@633nm, and surface quality of 10/5. We also provide standard coatings or can customize coatings according to customer needs, ensuring a high damage threshold for all our products.
High Precision Prisms for Solid-State Laser Systems
Specifications |
|
|---|---|
| Material: | BK7, FS, UVFS, IRFS, CaF2, F2, N-SF11, ZnSe, Ge |
| Dimension (A): | 10 mm |
| Dimension (B): | 10 mm |
| Dimension (h): | 14 mm |
| Mounting: | Unmounted |
| Diameter: | 1-100 mm |
| Clear Aperture: | >90% |
| Flatness: | L/4@633nm |
| Surface Quality: | 10/5 |
| Angle Tolerance: | <15″ |
Features
- Wide Range of Materials: Available in visible to infrared wavelengths, suitable for various applications.
- Customizable Design: Shape and size can be tailored to meet specific requirements.
- Diameter Options: Ranges from 1mm to 100mm to fit different needs.
- High Clear Aperture: Greater than 90% clear aperture ensures optimal light transmission.
- Precision Flatness: Flatness of L/4 at 633nm for high precision applications.
- Superior Surface Quality: Surface quality of 10/5 for minimal imperfections.
- Accurate Angle Tolerance: Angle tolerance of less than 15″ for precise beam control.
- High Damage Threshold: Designed to withstand high power laser applications.
- Versatile Coating Options: Standard coatings available, or customize according to customer needs.
Applications
- Laser optics
- Metrology
- Imaging
- Spectroscopy
Frequently Asked Questions
The prisms are available in materials that cover the visible to infrared wavelength range.
Yes, the shape and size of the prisms can be customized according to customer needs.
The diameter of the prisms ranges from 1mm to 100mm.
The flatness of the prisms is specified as L/4 at 633nm.
The surface quality of the prisms is rated at 10/5.
Right-angle prisms are used to deviate or deflect a beam of light by 90° or 180°, often in telescopes, periscopes, and other optical systems. Dove prisms are primarily used as rotators, where rotating the prism causes the image to rotate twice the angle, and also as retroreflectors.
Yes, standard coatings are available, and they can also be customized according to customer requirements.
