Custom Prisms
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2017
Description

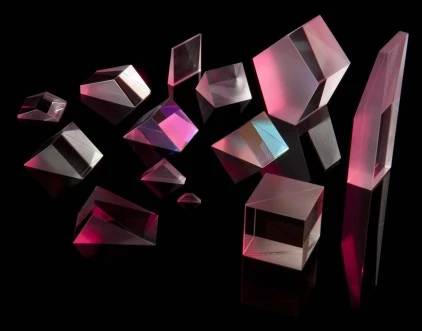

Precision Glass & Optics (PG&O) offers a wide range of custom-engineered optical prisms designed for critical applications in imaging, laser systems, and beam control. Each prism type is manufactured with precise angular tolerances, high-quality surface finishes, and tight dimensional control, ensuring optimal optical performance in complex optical paths.
Our Dove prisms enable image rotation at twice the angle of the prism’s rotation—ideal for image inversion or beam manipulation in collimated systems. Equilateral prisms serve as efficient dispersive elements, while Littrow prisms are perfect for wavelength selection in laser cavities. Penta prisms provide fixed 90° beam deviation without image inversion, making them ideal for instrument compactness.
Additional options include Rhomboid prisms for lateral beam displacement, Right Angle prisms for beam folding and redirection, and Roof (Amici) prisms for upright, correctly oriented imaging. Wedge prisms, offered as single or paired units, allow precise beam steering or anamorphic correction.
PG&O’s custom prisms are built to exacting standards, with angular tolerances as tight as ±2 arc seconds and surface accuracies up to λ/10. All designs can be tailored to meet your project’s size, coating, and material requirements.
Custom Prisms
Specifications |
|
|---|---|
| Material: | BK7, Other |
| Dimension (A): | 50 mm |
| Dimension (B): | 50 mm |
| Dimension (h): | 50 mm |
| Mounting: | Unmounted |
Features
- High Precision Manufacturing: Angular tolerances as tight as ±2 arc seconds for demanding applications
- Excellent Surface Quality: Up to 20/10 scratch-dig for minimal scatter and reflection
- Multiple Configurations: Dove, Penta, Equilateral, Littrow, Right Angle, Roof, Rhomboid, and Wedge prisms
- Superior Flatness and Accuracy: Surface flatness up to λ/10 for optical path fidelity
- Custom Fabrication: Tailored sizes, coatings, and materials to meet project-specific requirements
- Dimensional Tolerances: Maintained to ±0.002” across all prism types
Applications
- Optical Imaging Systems: Achieve image inversion, rotation, or displacement for unique viewing geometries
- Laser Systems: Beam steering, dispersion, or cavity feedback with Littrow or wedge prisms
- Spectroscopy & Metrology: Use equilateral or dispersive prisms for accurate wavelength separation
- Compact Optical Assemblies: Reduce system footprint using penta and right-angle prisms
- Beam Displacement & Scanning: Rhomboid and wedge prisms for lateral shift or full-circle beam control
Frequently Asked Questions
The main substrates used for custom prisms are BK7 and Fused Silica. Other substrates include SCHOTT glass and HOYA optical glass.
Applications of custom prisms include biomedical, aerospace, military/defense, avionics, solar, digital cinema, lasers, solar markets, and imaging.
The angular tolerance for equilateral prisms is ± 5 arc minutes.
Littrow prisms are commonly used in laser cavities to limit lasing to a specific wavelength.
Roof prisms invert the image and bend the line of sight through a 90° angle.
