Dove Prisms (Material: UVFS)

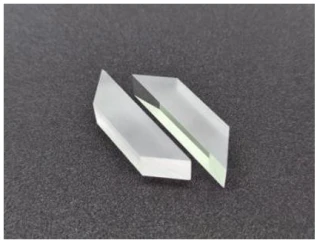

High-Precision Optical Prisms | Custom Wedge, Dove, and Right-Angle Options
Minyi Technology
Add to watch list
High-Precision Optical Prisms | Custom Wedge, Dove, and Right-Angle Options
Compare
Our High-Precision Optical Prisms are meticulously crafted transparent optical elements, designed to refract, reflect, or disperse light based on specific requirements. With flat, polished surfaces arranged at precise angles, these prisms are essential components in a variety of optical systems.

Specifications
Material: BK7, FS, UVFS, Other
Mounting: Unmounted
Surface Quality: 40-20 S-D
Surface Flatness: 1/4 λ @632.8nm
Deviation: ±1 arc min
Data Sheet
Inquire Price
14DOP-1-2 Dove Prisms
Altos Photonics, Inc.
Add to watch list
14DOP-1-2 Dove Prisms
Compare
Dove Prisms are reflective prisms specifically designed for image rotation applications. They are shaped from a truncated right-angle prism, and a beam of light entering one of the sloped faces of the prism undergoes total internal reflection from the inside of the longest (bottom) face. As a result, the image passing through the ...

Specifications
Material: UVFS
Dimension (A): 21.1 mm
Dimension (B): 5 mm
Dimension (h): 5 mm
Mounting: Unmounted
Data Sheet
Inquire Price
Union Optic Dove Prism
Union Optic
Add to watch list
Union Optic Dove Prism
Compare
Dove prism is always used to rotate image. If you rotate the prism around a longitudinal axis, the image rotates through twice the angle the prism rotates through. Sometimes, dove prism is also used for 180deg reflection

Specifications
Material: BK7, UVFS
Dimension (A): 21.1 mm
Dimension (B): 5 mm
Dimension (h): 5 mm
Mounting: Unmounted
Data Sheet
Inquire Price
Dove Prism - BK7-UVFS-FS
Rocky Mountain Instrument Co.
Add to watch list
Dove Prism - BK7-UVFS-FS
Compare
Dove Prisms are used as image rotators in a variety of opto-mechanical systems. They are a truncated form of the right angle prism, and use total internal reflection (TIR) to produce an inverted image which emerges from the exit surface without deviation. As the prism is rotated about its optical axis, the image will rotate at twice ...

Specifications
Material: BK7, FS, UVFS
Dimension (A): Not Specified
Dimension (B): Not Specified
Dimension (h): Not Specified
Mounting: Unmounted
Data Sheet
Inquire Price
On FindLight marketplace you will find 4 different Dove Prisms (Material: UVFS) from top global suppliers. Compare features, request pricing, and connect instantly with manufacturers — no registration required.
