Description

The Fresnel Prism PR 712 is a precision-engineered optical component designed for applications requiring light deviation, beam control, and enhanced optical performance. Manufactured by ORAFOL Fresnel Optics GmbH, this high-quality prism utilizes advanced Fresnel lens technology to achieve superior beam shaping and direction control while maintaining a lightweight and compact form factor.

The PR 712 prism is particularly well-suited for industries such as imaging systems, laser optics, and optical instrumentation, where space and weight constraints are crucial.

This Fresnel Prism is built with optical-grade polymers, offering excellent transmission efficiency and low light loss, ensuring minimal energy consumption during operation. The prism is highly customizable, allowing for adjustments in size, angle, and wavelength compatibility to meet specific project requirements.

With its capability to handle a wide range of light wavelengths, from ultraviolet (UV) to infrared (IR), and its robustness under various environmental conditions, the Fresnel Prism PR 712 offers versatile solutions for precision optical applications.

ORAFOL Fresnel Prism PR 712

Specifications

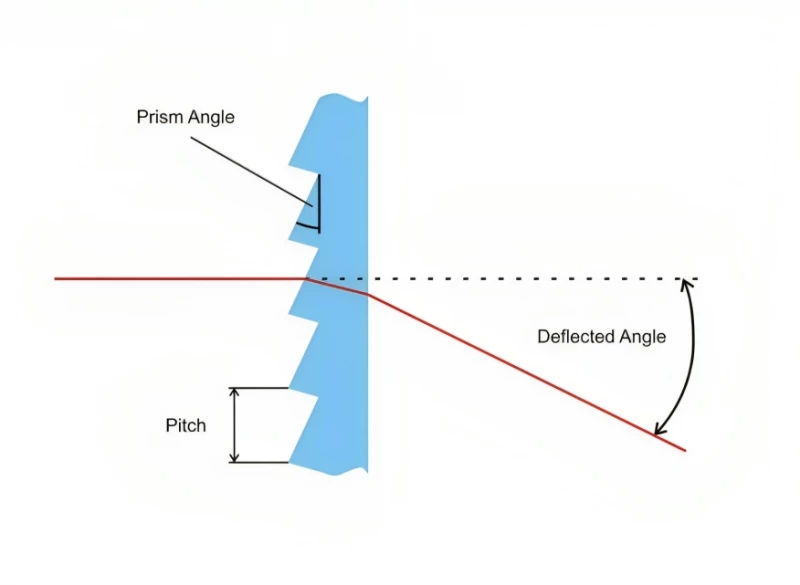

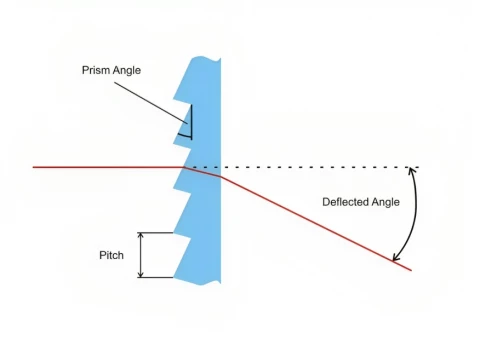

Prism Angle: 41 deg
Deflected Angle: 23 deg
Facet Spacing: 0.127 mm

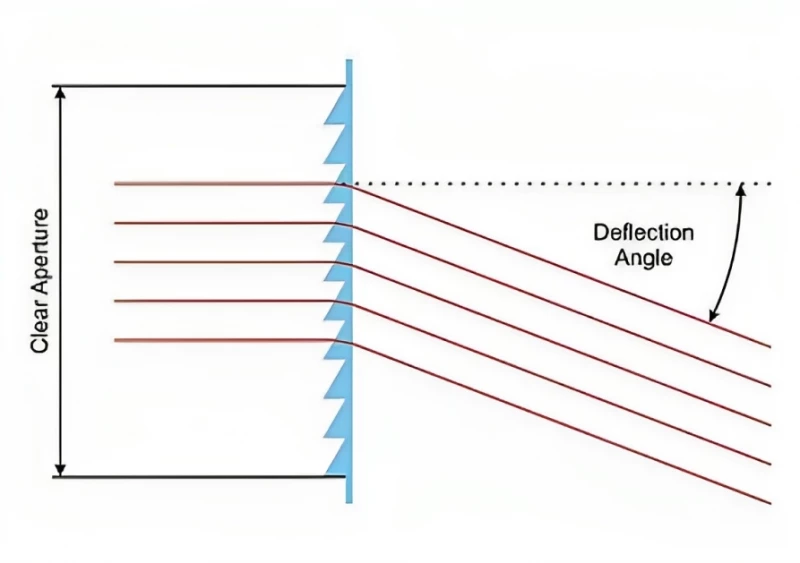

Clear Aperture: 147.6 mm
Prism Length: 147.6 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Fresnel Prism Technology
  • Linear Structures with Constant Prism Angle
  • Optimal Deflection of Parallel Light
  • Diverse Visual Design Options
  • High-Quality, Cost-Effective Optical Solutions

Applications

  • Optical Devices in Automotive
  • Lighting Systems
  • Projection Systems
  • Surveillance and Security Systems
  • Custom Optical Configurations

Frequently Asked Questions

What is the primary function of the Fresnel Prism PR 712?
It is designed for light deviation, beam control, and enhanced optical performance in various applications.
What materials are used in the Fresnel Prism PR 712?
It is constructed from high-quality optical-grade polymers for durability and efficiency.
What wavelength range does this prism support?
The prism supports a broad spectrum, including ultraviolet (UV) to infrared (IR).
Can the Fresnel Prism PR 712 be customized?
Yes, it can be customized in terms of size, angle of deviation, and wavelength compatibility.
What are common applications of this prism?
It is used in imaging systems, laser optics, optical instrumentation, and illumination systems.
What is the light transmission efficiency of the prism?
The Fresnel Prism PR 712 offers up to 95% light transmission for high-performance applications.
How compact is the design of the Fresnel Prism PR 712?
The prism is designed to be lightweight and compact, suitable for systems with space constraints.
Can the prism operate in harsh environments?
Yes, it is built to withstand various environmental conditions and temperatures from -20°C to +80°C.
How does the prism affect laser beam direction?
It efficiently directs and controls laser beams, making it ideal for precise optical setups.
Is the Fresnel Prism PR 712 suitable for commercial imaging systems?
Yes, its precise beam control makes it ideal for advanced imaging applications.

Got more questions? Use the inquiry form to ask the supplier directly.
