Description

The Fresnel Prism PR 709 by ORAFOL Fresnel Optics GmbH is engineered for precise light manipulation and optical applications. Featuring a lightweight and compact design, this prism utilizes advanced Fresnel lens technology to effectively bend and disperse light, making it an ideal choice for various imaging and optical systems.

Its high optical quality ensures minimal light loss and distortion, providing clear and sharp images essential for scientific and industrial applications. The PR 709 is versatile, accommodating a range of wavelengths, and is constructed from durable materials, ensuring reliability and longevity in demanding environments. Whether used in laboratory setups, laser systems, or sensor technologies, this prism delivers outstanding performance and integration ease.

Designed for professionals seeking to enhance their optical capabilities, the Fresnel Prism PR 709 stands out for its combination of innovative design and high-quality optical performance.

ORAFOL Fresnel Prism PR 709

Specifications

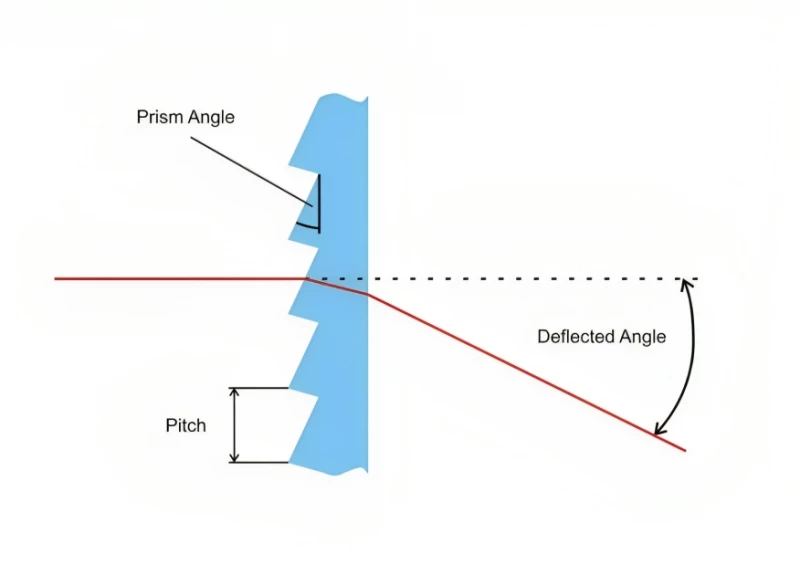

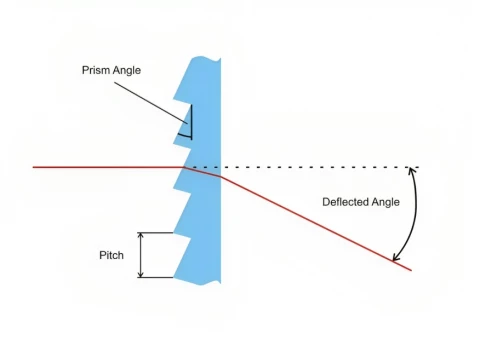

Prism Angle: 20 deg
Deflected Angle: 10 deg
Facet Spacing: 1.016 mm

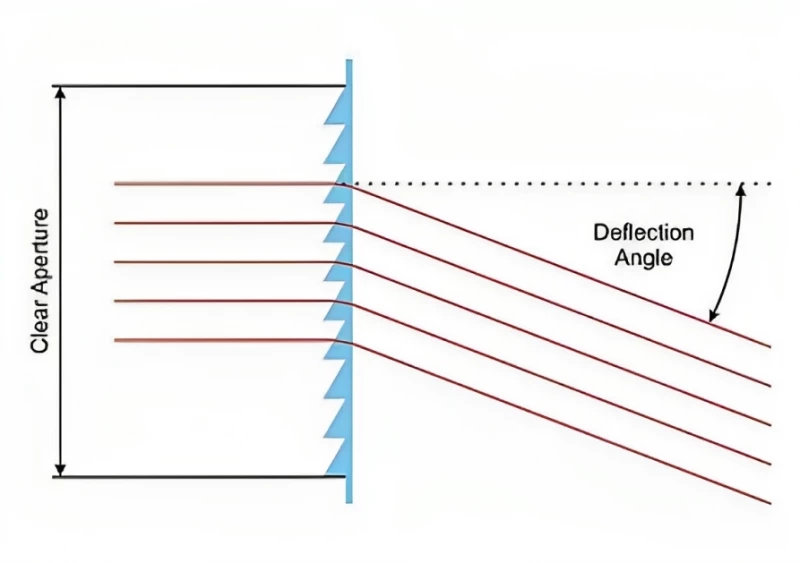

Clear Aperture: 216.6 mm
Prism Length: 216.6 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Fresnel Prism Technology
  • Linear Structures with Constant Prism Angle
  • Optimal Deflection of Parallel Light
  • Diverse Visual Design Options
  • High-Quality, Cost-Effective Optical Solutions

Applications

  • Optical Devices in Automotive
  • Lighting Systems
  • Projection Systems
  • Surveillance and Security Systems
  • Custom Optical Configurations

Frequently Asked Questions

What are the main applications?
Used in imaging systems, laser beam steering, and sensors.
What material is the prism made from?
Constructed from optical-grade polymer for clarity and durability.
What are the dimensions of the prism?
Specific dimensions can be found in the product specifications.
Is it suitable for outdoor environments?
Primarily designed for indoor and lab use, check specs for limitations.
What is the wavelength range?
Effective across various wavelengths; refer to specifications for details.
How should it be maintained?
Clean with a soft, lint-free cloth and avoid abrasive materials.
What is the weight of the prism?
Lightweight design; refer to specifications for exact weight.
Can it be customized for specific applications?
Custom options may be available; contact the manufacturer for details.
What is the optical transmission efficiency?
Typically high, ensuring minimal light loss; check product details for specific values.
Is there a warranty available?
Warranty details vary; consult the manufacturer for terms and conditions.

Got more questions? Use the inquiry form to ask the supplier directly.
