Description

The Fresnel Prism PR 723 by ORAFOL Fresnel Optics GmbH is a high-performance optical component designed for a variety of applications in beam manipulation and light distribution. Engineered using advanced materials and precise manufacturing techniques, this prism features a unique Fresnel lens design that significantly reduces weight and bulk while maintaining exceptional optical clarity.

The PR 723 allows for efficient light bending and dispersion, making it ideal for use in imaging systems, laser applications, and optical sensors. Its compact design ensures ease of integration into existing optical setups without compromising on performance. The prism is also compatible with a range of wavelengths, providing versatility across different applications. With its superior optical quality and durability, the Fresnel Prism PR 723 is a reliable choice for professionals seeking to enhance their optical systems.

ORAFOL Fresnel Prism PR 723

Specifications

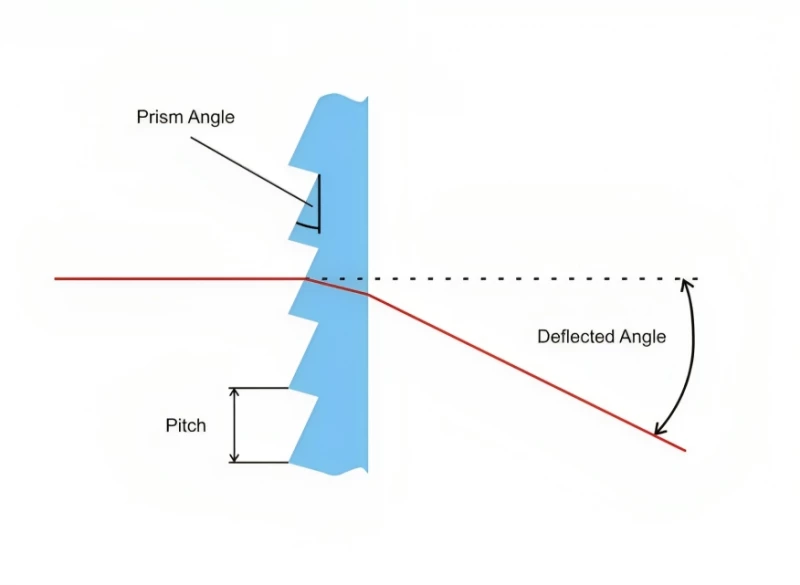

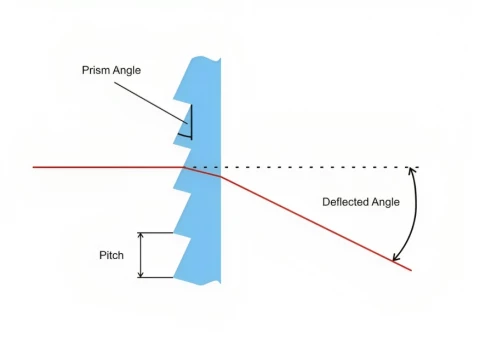

Prism Angle: 24 deg
Deflected Angle: 12 deg
Facet Spacing: 0.152 mm

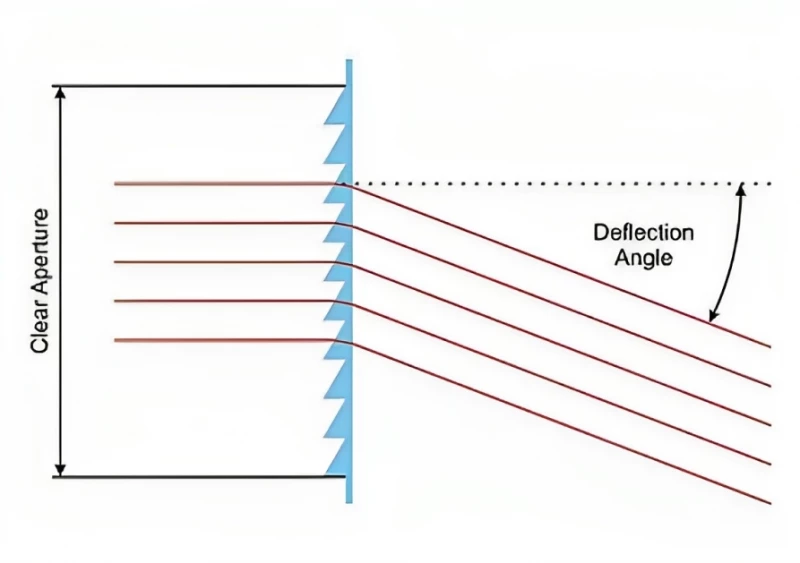

Clear Aperture: 165.2 mm
Prism Length: 165.2 mm
Thickness: 1.8 mm

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Advanced Fresnel Prism Technology
  • Linear Structures with Constant Prism Angle
  • Optimal Deflection of Parallel Light
  • Diverse Visual Design Options
  • High-Quality, Cost-Effective Optical Solutions

Applications

  • Optical Devices in Automotive
  • Lighting Systems
  • Projection Systems
  • Surveillance and Security Systems
  • Custom Optical Configurations

Frequently Asked Questions

What is the primary application?
Ideal for imaging systems, laser applications, and sensors.
What materials are used in its construction?
Made from optical-grade polymer for enhanced clarity and durability.
What are the dimensions of the prism?
Specific dimensions can vary; refer to product specifications.
Is it suitable for outdoor use?
Designed for indoor and laboratory settings; consult specifications for environmental limits.
What is the wavelength range?
Effective across multiple wavelengths; check specifications for details.
How is it maintained?
Clean with soft, lint-free cloth and avoid harsh chemicals.
What is the weight of the prism?
Lightweight design facilitates easy handling; refer to specifications for exact weight.
Can it be customized for specific needs?
Custom solutions may be available; contact the manufacturer for inquiries.
What is the optical transmission percentage?
Typically high, ensuring minimal light loss; check product details for specific values.
Is there a warranty on the product?
Warranty details can vary; please refer to the manufacturer's terms for information.

Got more questions? Use the inquiry form to ask the supplier directly.
