Description

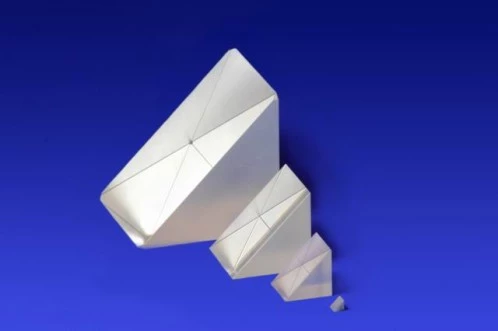

Right Angle Prism can be used to bend a beam by 90deg or 180deg, depending on which face is entrance face. Please refer to following image to see how it works. Now Union Optic can provide right angle prisms from 0.5mm to 50.8mm size. Special size can also be offered upon request.
Right Angle Prism
Specifications
| Material: | BK7, FS, UVFS, Other |
|---|---|
| Dimensions (A): | 10 mm |
| Dimensions (B): | 10 mm |
| Dimensions (C): | 10 mm |
Download Data Sheet
Features
Material BK7, UV grade Fused Silica
Dimension Tolerance ±0.2mm
Angle Tolerance Refer to below list
Flatness λ/4@632.8nm per 25mm range
Pyramidal Error <3 arc minutes
Perpendicularity <15 arc minutes
Surface Quality 60/40 scratch and dig
Clear Aperture >90%
Chamfer Protective
Coating No coating, available
Frequently Asked Questions
What sizes of Right Angle Prisms does Union Optic provide?
Union Optic can provide Right Angle Prisms from 0.5mm to 50.8mm size. Special size can also be offered upon request.
What is a Right Angle Prism used for?
A Right Angle Prism is used to bend a beam by 90deg or 180deg, depending on which face is entrance face.
Does the Right Angle Prism come with a protective coating?
No, the Right Angle Prism does not come with a protective coating, but it is available upon request.
What is the surface quality of the Right Angle Prism?
The surface quality of the Right Angle Prism is 60/40 scratch and dig.
What is the dimension tolerance of the Right Angle Prism?
The dimension tolerance of the Right Angle Prism is ±0.2mm.
