Description

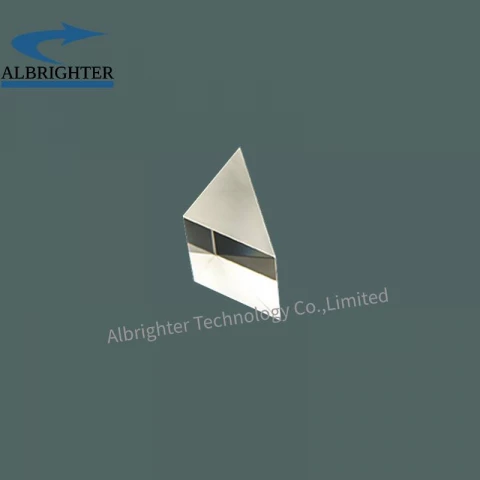

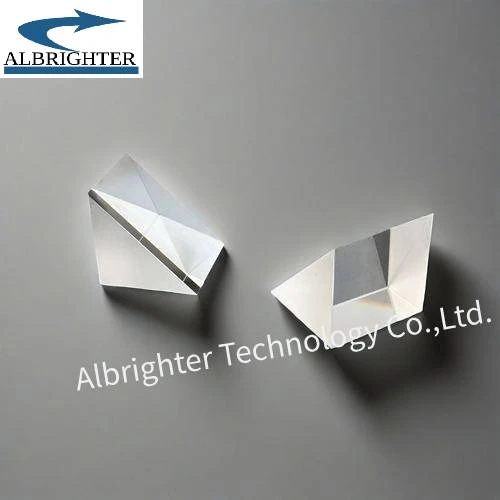

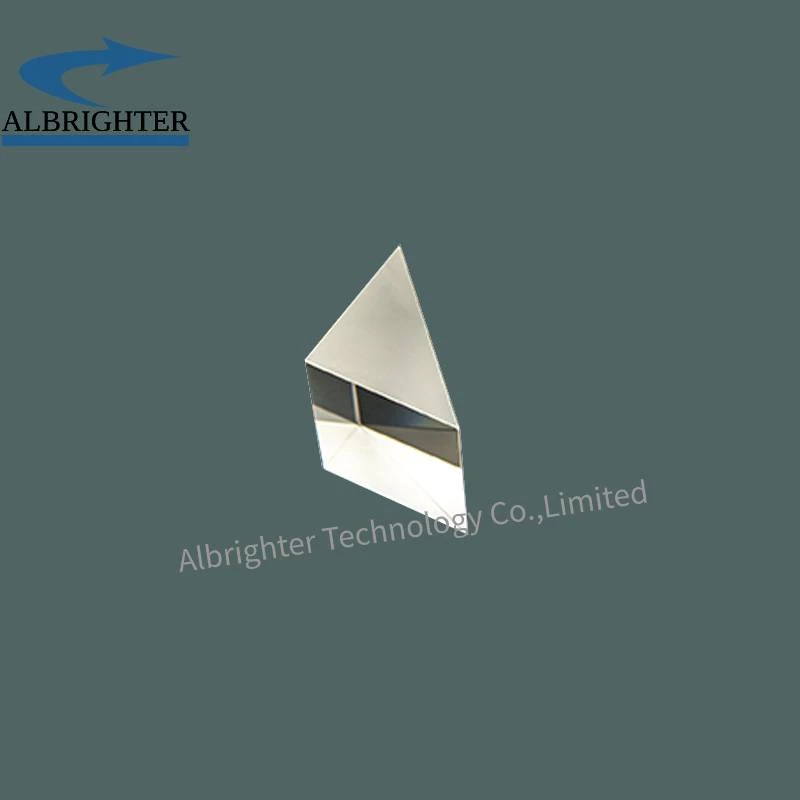

The Right Angle Prism is a fundamental optical component utilized for redirecting the optical path by 90 degrees. Depending on the azimuth of the prism, it can produce various imaging configurations, including consistent left-right and top-bottom orientations or differing left-right orientations while maintaining consistent top-bottom alignment. Crafted from high-quality BK7 material, this prism ensures reliable performance across diverse optical applications.

The Right Angle Prism, with its precision engineering and versatile capabilities, serves as a fundamental component across various industries, contributing to the advancement of optical technologies and applications.

Specifications

Material: BK7, UVFS
Max Dimensions (A): 1 mm
Max Dimensions (B): 1 mm
Max Dimensions (C): 1.41 mm
Material: BK7
Dimension Tolerance: ±0.1mm
Surface Flatness: λ/4@633nm
Surface Quality: 40/20
Angle Tolerance: ±2 arc min
Coating: Uncoated or coated as requests

Got questions about specs? Use the inquiry form to ask.

Document icon Download Data Sheet Download icon

Features

  • Optical Path Redirection: Designed to precisely turn the optical path by 90 degrees, the right angle prism facilitates efficient redirection of light in optical systems.
  • Versatile Imaging Configurations: Depending on the orientation of the prism, it enables imaging configurations with consistent or differing left-right orientations, offering flexibility for diverse imaging requirements.
  • High-Quality Material: Constructed from BK7 material, known for its optical clarity and stability, ensuring consistent performance in optical setups.
  • Dimensional Precision: Manufactured with tight dimensional tolerances, the prism ensures compatibility and seamless integration within optical systems.
  • Optical Properties: Features excellent surface flatness (λ/4@633nm) and surface quality (40/20), resulting in clear and high-resolution imaging with minimal distortion.
  • Angle Tolerance: With a precise angle tolerance of ±2 arc min, the prism maintains accuracy in redirecting light beams, critical for optical alignment.
  • Coating Options: Available with customizable coatings, including uncoated or coated per customer specifications, allowing tailored solutions for specific optical requirements.

Summary:

  • Material:  BK7
  • Dimension Tolerance:  ±0.1mm
  • Surface Flatness:  λ/4@633nm
  • Surface Quality:  40/20
  • Angle Tolerance:  ±2 arc min
  • Coating:  Uncoated or coated as requests

Applications

  • Imaging Systems: Right angle prisms are integral components in imaging systems, including cameras, periscopes, and binoculars, facilitating efficient redirection of light for imaging applications.
  • Optical Metrology: In optical metrology setups, these prisms aid in precise beam steering and alignment for accurate measurement and analysis tasks.
  • Projection Systems: Right angle prisms play a crucial role in projection systems, such as projectors and laser displays, ensuring proper light redirection and alignment for optimal image projection.
  • Laser Systems: These prisms are utilized in laser systems for beam steering, folding, and alignment, supporting various laser applications in research, manufacturing, and telecommunications.
  • Scientific Research: Right angle prisms find applications in scientific research setups, including spectroscopy, microscopy, and interferometry, enabling precise light manipulation and control.

Frequently Asked Questions

What is the purpose of a right angle prism?
A right angle prism is used to turn the optical path 90 degrees.
What are the dimensions of the BK7 right angle prisms?
The dimensions of the BK7 right angle prisms vary from 1mm to 50mm, depending on the specific model.
What is the tolerance for the dimensions of the BK7 right angle prisms?
The dimension tolerance for the BK7 right angle prisms is ±0.1mm.
What is the surface flatness of the BK7 right angle prisms?
The surface flatness of the BK7 right angle prisms is λ/4@633nm.
Can the BK7 right angle prisms be coated?
Yes, the BK7 right angle prisms can be either uncoated or coated as per the customer's requests.

Got more questions? Use the inquiry form to ask the supplier directly.
