Laser Grade Prism
For pricing, technical or any other questions please contact the supplier
- No registration required
- No markups, no fees
- Direct contact with supplier
Contact Supplier
How to order?
-
Ships from:
United States
-
Sold by:
-
On FindLight:
since 2015
Description
Prisms are essential components in the world of optics, known for their ability to manipulate light in various ways. These transparent optical blocks are meticulously crafted with at least two flat, polished sides that are inclined at precisely controlled angles. This unique design allows prisms to deflect, deviate, and rotate beams of light, as well as disperse their wavelengths. Each type of prism is tailored to perform specific optical tasks, making them invaluable in a wide range of applications.
Tower Optical is renowned for its extensive range of high-quality prisms, including Penta Prisms, Right Angle Prisms, Dove Prisms, Roof Prisms, Corner Cube Reflectors, Anamorphic Prisms, and Wedge Prisms. Additionally, we offer specialized polarizers such as Glan-Taylor Prisms, Wollaston Prisms, and Rochon Prisms. Our commitment to precision and quality ensures that each prism meets the highest standards, providing exceptional performance in any optical setup.
For those seeking right angle prisms, Tower Optical provides three distinct quality standards: Standard Grade, High Grade, and Laser Grade. Each grade is crafted from BK7 grade A glass and offers varying levels of dimensional tolerance, flatness, surface quality, angle tolerance, and pyramid error. These prisms are also available in UV grade Fused Silica and can be customized with optical coatings for anti-reflective, mirror, or beamsplitter applications. At Tower Optical, we pride ourselves on our ability to create custom versions of all our products, tailored to meet your specific needs and specifications.

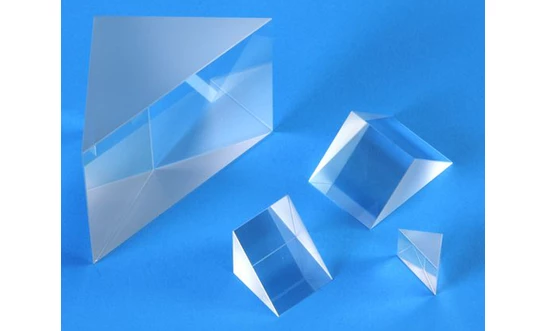

Laser Grade Prism
Specifications |
|
|---|---|
| Material: | BK7 |
| Dimensions (A): | 25 mm |
| Dimensions (B): | 25 mm |
| Dimensions (C): | 25 mm |
| Dimensional Tolerance: | ±0.1mm |
| Flatness: | λ/10 @ 632.8nm |
| Surface Quality: | 20/10 Scratch/Dig |
| Angle Tolerance: | ±30 arc seconds |
| Pyramid Error: | < 5 arc minutes |
| Bevel: | 0.25mm x 45° |
Features
- Multiple Grades: Available in Standard, High, and Laser quality grades for varied applications.
- High Precision: Dimensional tolerance as fine as ±0.1 mm and angle tolerance up to ±30 arc seconds.
- Superior Surface Quality: From 60/40 to 20/10 scratch/dig, ensuring excellent optical clarity.
- Excellent Flatness: Achieving up to λ/10 at 632.8 nm for demanding laser applications.
- Custom Options: Available in UV-grade fused silica and with AR, mirror, or beamsplitter coatings.
- Durable Design: Manufactured with beveled edges for handling safety and longevity.
Applications
- Laser Systems: Ideal for beam steering, deviation, and high-precision alignment.
- Optical Instrumentation: Used in imaging, metrology, and scientific research setups.
- Telecommunications: Ensures reliable signal redirection in optical communication networks.
- Industrial and Medical Equipment: Supports precision optical routing in advanced devices.
- Custom Optical Systems: Adaptable for unique configurations through custom fabrication.
Frequently Asked Questions
Tower Optical's prism capability includes Penta Prisms, Right Angle Prisms, Dove Prisms Roof Prisms, Corner Cube Reflectors, Anamorphic Prisms, Wedge Prisms and Polarizers called Glan-Taylor Prisms, Wollaston Prisms and Rochon Prisms.
Tower Optical offers three different quality standards for right angle prisms: Standard Grade, High Grade and Laser Grade.
The material used for Laser Grade prisms is BK7 grade glass.
The dimensional tolerance for Laser Grade prisms is ±0.1mm.
The surface quality for Laser Grade prisms is 20/10 scratch/dig.
